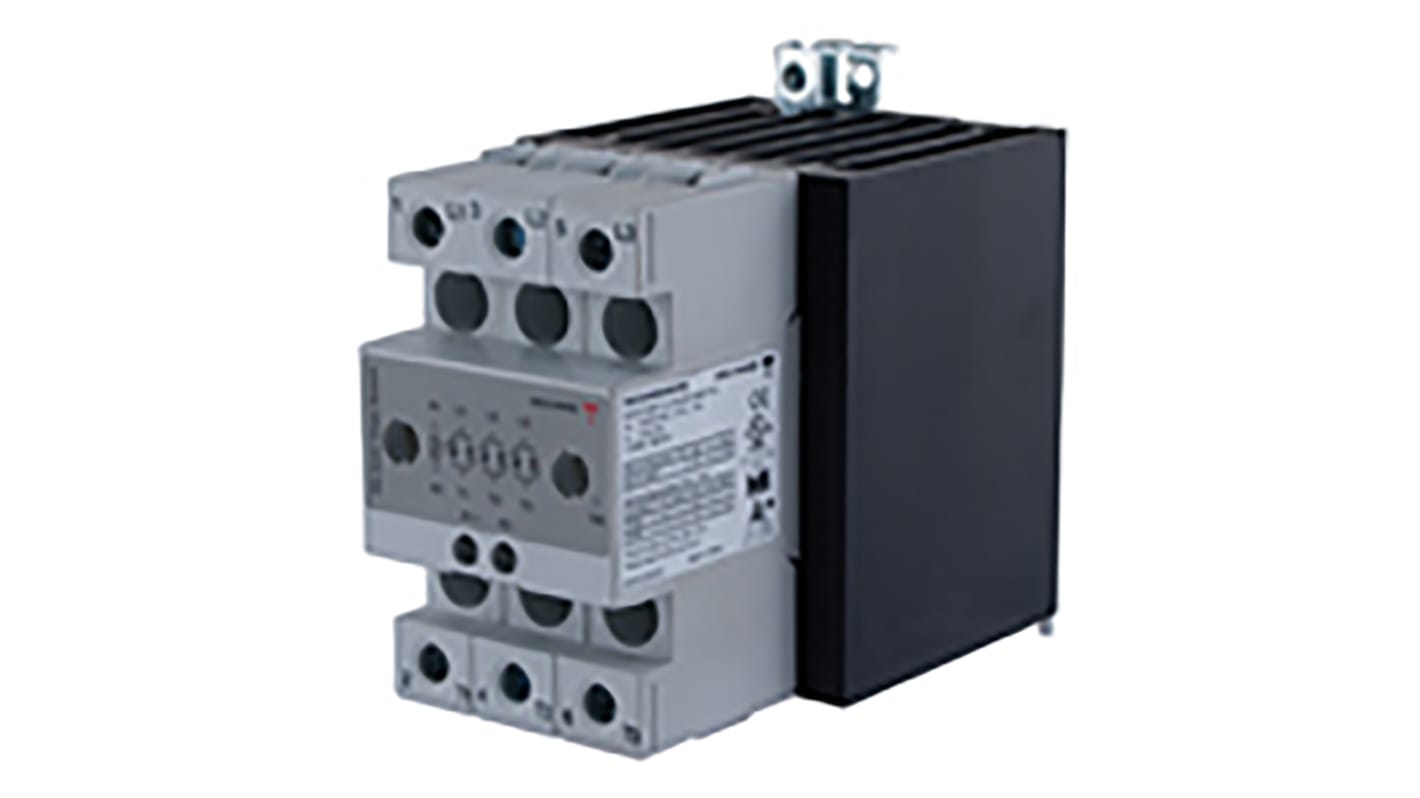

Carlo Gavazzi RGC2 Series Solid State Relay, 50 A Load, DIN Rail Mount, 660 V ac Load, 32 V dc Control
- RS Stock No.:
- 188-5282
- Distrelec Article No.:
- 304-27-305
- Mfr. Part No.:
- RGC2A60D40KGE
- Manufacturer:
- Carlo Gavazzi
Subtotal (1 unit)*
MYR1,634.01
FREE delivery for orders over RM 500.00
In Stock
- 15 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR1,634.01 |
*price indicative
- RS Stock No.:
- 188-5282
- Distrelec Article No.:
- 304-27-305
- Mfr. Part No.:
- RGC2A60D40KGE
- Manufacturer:
- Carlo Gavazzi
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Carlo Gavazzi | |
| Maximum Load Current | 50 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 660 V ac | |
| Minimum Load Voltage | 42 V ac | |
| Maximum Control Voltage | 32 V dc | |
| Minimum Control Voltage | 5 V dc | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 5 → 32 V dc | |
| Minimum Load Current | 400 mA | |
| Number of Poles | 2 | |
| Terminal Type | Screw | |
| Output Device | Varistor | |
| Relay Type | Solid State Relay | |
| Load Voltage Range | 42 → 600V ac | |
| Maximum Turn On Time | 1 s | |
| Series | RGC2 | |
| Dimensions | 72 x 125.5 x 110mm | |
| Length | 72mm | |
| Operating Temperature Range | -40 → +80°C | |
| Minimum Operating Temperature | -40°C | |
| Height | 110mm | |
| Maximum Operating Temperature | +80°C | |
| Off State Leakage Current | 5 mA | |
| Special Features | Heat Sinked | |
| Depth | 125.5mm | |
| Select all | ||
|---|---|---|
Brand Carlo Gavazzi | ||
Maximum Load Current 50 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 660 V ac | ||
Minimum Load Voltage 42 V ac | ||
Maximum Control Voltage 32 V dc | ||
Minimum Control Voltage 5 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 5 → 32 V dc | ||
Minimum Load Current 400 mA | ||
Number of Poles 2 | ||
Terminal Type Screw | ||
Output Device Varistor | ||
Relay Type Solid State Relay | ||
Load Voltage Range 42 → 600V ac | ||
Maximum Turn On Time 1 s | ||
Series RGC2 | ||
Dimensions 72 x 125.5 x 110mm | ||
Length 72mm | ||
Operating Temperature Range -40 → +80°C | ||
Minimum Operating Temperature -40°C | ||
Height 110mm | ||
Maximum Operating Temperature +80°C | ||
Off State Leakage Current 5 mA | ||
Special Features Heat Sinked | ||
Depth 125.5mm | ||
- COO (Country of Origin):
- MT
Panel space savings. Concentrated power, the RGC 3-phase switching range can handle up to 65 AAC per pole (or 75 AAC for 2-pole switching) in a 70mm wide footprint
Long lifetime. Wire bonding technology reduces thermal and mechanical stresses of the output chips resulting in a larger number of possible operational cycles compared to other assembly technologies
Low machine downtime. Integrated overvoltage protection prevents the solid state relay from breaking down due to uncontrolled transients that may occur on the lines
Ease of use. The RGC2A and RGC3A are ready to use solutions provided with integrated heat sink thus eliminating the need for the user to calculate the size of heat sink needed for adequate thermal dissipation
Fast wiring. Power connections for models rated ≥30A are equipped with terminals that can handle cables up to 25mm2/ AWG3 cables
Integrated monitoring for timely detection of malfunctions. Optional feature on the 3-phase RGC series that enables detection of mains loss, over temperature and solid state relay or load malfunction
3-phase zero cross switching solid state contactor for 3-pole or 2-pole switching
Ratings up to 660 VAC 75 AAC/pole (RGC2A), 65 AAC/pole (RGC3A) @ TA 40°C
Long lifetime. Wire bonding technology reduces thermal and mechanical stresses of the output chips resulting in a larger number of possible operational cycles compared to other assembly technologies
Low machine downtime. Integrated overvoltage protection prevents the solid state relay from breaking down due to uncontrolled transients that may occur on the lines
Ease of use. The RGC2A and RGC3A are ready to use solutions provided with integrated heat sink thus eliminating the need for the user to calculate the size of heat sink needed for adequate thermal dissipation
Fast wiring. Power connections for models rated ≥30A are equipped with terminals that can handle cables up to 25mm2/ AWG3 cables
Integrated monitoring for timely detection of malfunctions. Optional feature on the 3-phase RGC series that enables detection of mains loss, over temperature and solid state relay or load malfunction
3-phase zero cross switching solid state contactor for 3-pole or 2-pole switching
Ratings up to 660 VAC 75 AAC/pole (RGC2A), 65 AAC/pole (RGC3A) @ TA 40°C
