TE Connectivity PCB Mount Signal Relay, 5V dc Coil, 2A Switching Current, DPDT
- RS Stock No.:
- 135-5007
- Mfr. Part No.:
- IM03TS
- Manufacturer:
- TE Connectivity
1000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Tube of 1000)
MYR13.443
| Units | Per Unit | Per Tube* |
| 1000 + | MYR13.443 | MYR13,443.00 |
| *price indicative | ||
- RS Stock No.:
- 135-5007
- Mfr. Part No.:
- IM03TS
- Manufacturer:
- TE Connectivity
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details

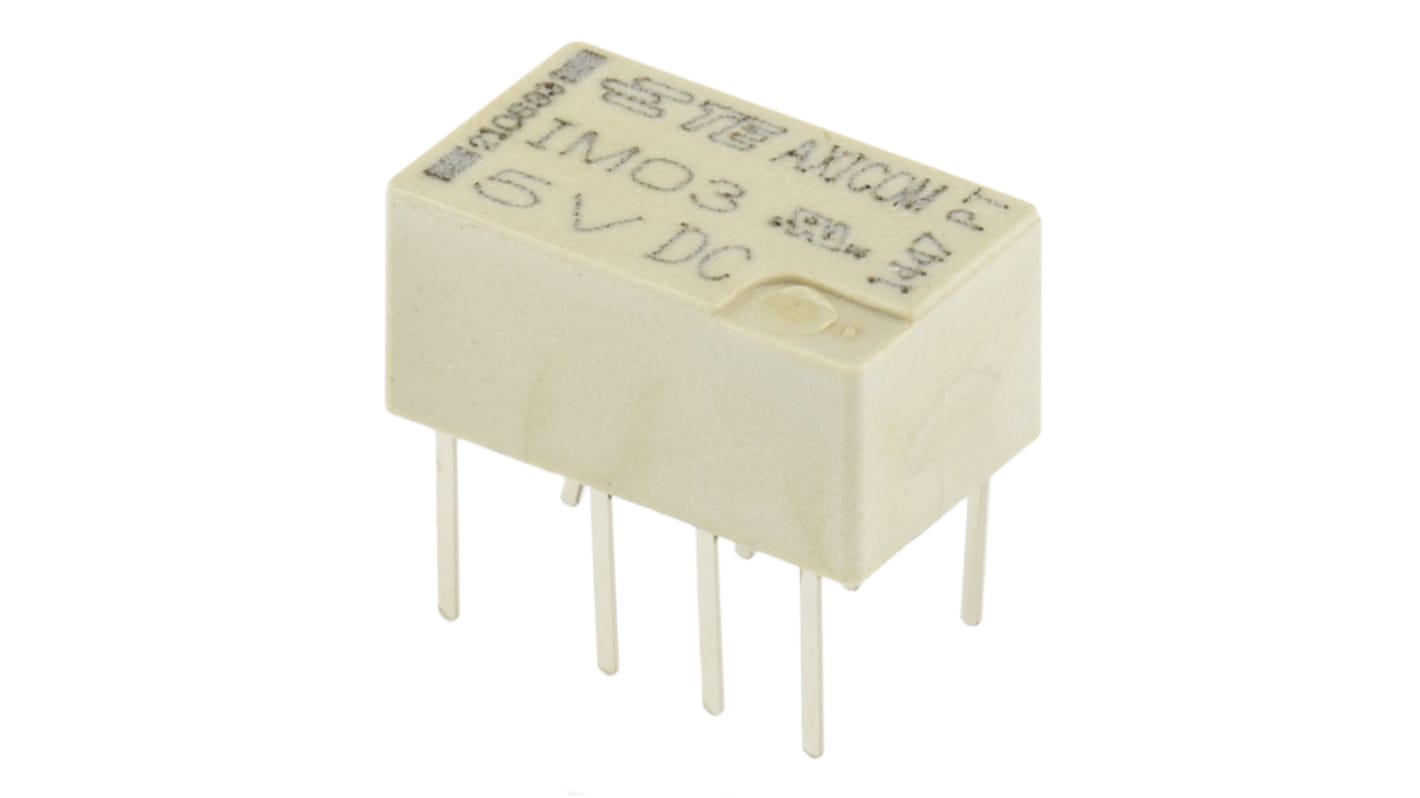

TE Connectivity PCB Mount Signal Relay - IM Series
IM series slimline PCB mount signal relays with a low profile of 5.65mm that occupy a minimum board space of 60mm². These slimline IM series PCB mount signal relays have a low coil power consumption of 140mW for standard coil, 100mW for bistable and 50mW for the ultra high sensitive versions, along with a high dielectric surge capability and 300g mechanical shock resistance.
Features and Benefits:
• Slimline and low profile - 10x6x5.65 mm
• Bifurcated contacts, gold plated
• Hermetically sealed (RT V), IP67
• High mechanical shock resistance up to 300G functional, 500G survival
• Insulation resistance at 500V dc >10⁹Ω
• High surge capability (1.2/50 μs and 10 / 700 μs) meets Telcordia GR 1089, FCC Part 68 and ITU-T K20,21,45.
• 1500V between open contacts and 2500V between coil and contacts
• Bifurcated contacts, gold plated
• Hermetically sealed (RT V), IP67
• High mechanical shock resistance up to 300G functional, 500G survival
• Insulation resistance at 500V dc >10⁹Ω
• High surge capability (1.2/50 μs and 10 / 700 μs) meets Telcordia GR 1089, FCC Part 68 and ITU-T K20,21,45.
• 1500V between open contacts and 2500V between coil and contacts
Applications:
• Telecommunication equipment
• Optical network terminals
• Office equipment
• Test and measurement equipment
• Medical equipment
• Automotive applications
• Optical network terminals
• Office equipment
• Test and measurement equipment
• Medical equipment
• Automotive applications
Approvals
UL
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 5V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Maximum Switching Current DC | 2 A |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 220V dc |
| Series | IM |
| Maximum Switching Power DC | 60 W |
| Latching | No |
| Length | 10mm |
| Depth | 6mm |
| Height | 5.65mm |
| Dimensions | 10 x 6 x 5.65mm |
| Terminal Type | Through Hole |
| Number of Poles | 2 |
| Switching Current | 2A |
| Application | Signal |
| Maximum Switching Power AC | 62.5VA |
| Maximum Operating Temperature | +85°C |
| Coil Power | 140mW |
| Minimum Operating Temperature | -40°C |
| Isolation Coil To Contact | 1.5kV |
| Operating Temperature Range | -40 → +85°C |
| Coil Resistance | 178Ω |
| Contact Material | Gold Plated |
| Features | Bifurcated Contacts, Low Coil Power Consumption |
