RS PRO PCB Mount Signal Relay, 5V dc Coil, 2A Switching Current, DPDT
- RS Stock No.:
- 193-5847
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
MYR397.55
FREE delivery for orders over RM 500.00
In Stock
- 26 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 24 | MYR397.55 |
| 25 - 124 | MYR374.88 |
| 125 + | MYR308.52 |
*price indicative
- RS Stock No.:
- 193-5847
- Manufacturer:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coil Voltage | 5V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Maximum Switching Current AC | 2 A | |
| Maximum Switching Current DC | 2 A | |
| Maximum Switching Voltage AC | 250V | |
| Maximum Switching Voltage DC | 220V | |
| Maximum Switching Power DC | 60 W | |
| Series | TQ2 | |
| Length | 14mm | |
| Latching | No | |
| Depth | 11.5mm | |
| Height | 5.6mm | |
| Terminal Type | Surface Mount | |
| Number of Poles | 4 | |
| Switching Current | 2A | |
| Coil Resistance | 1028Ω | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Coil Power | 140mW | |
| Isolation Coil To Contact | 1.5kV rms | |
| Contact Material | Gold Plated | |
| Maximum Switching Power AC | 62.5VA | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Coil Voltage 5V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Maximum Switching Current AC 2 A | ||
Maximum Switching Current DC 2 A | ||
Maximum Switching Voltage AC 250V | ||
Maximum Switching Voltage DC 220V | ||
Maximum Switching Power DC 60 W | ||
Series TQ2 | ||
Length 14mm | ||
Latching No | ||
Depth 11.5mm | ||
Height 5.6mm | ||
Terminal Type Surface Mount | ||
Number of Poles 4 | ||
Switching Current 2A | ||
Coil Resistance 1028Ω | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Coil Power 140mW | ||
Isolation Coil To Contact 1.5kV rms | ||
Contact Material Gold Plated | ||
Maximum Switching Power AC 62.5VA | ||
- COO (Country of Origin):
- GB

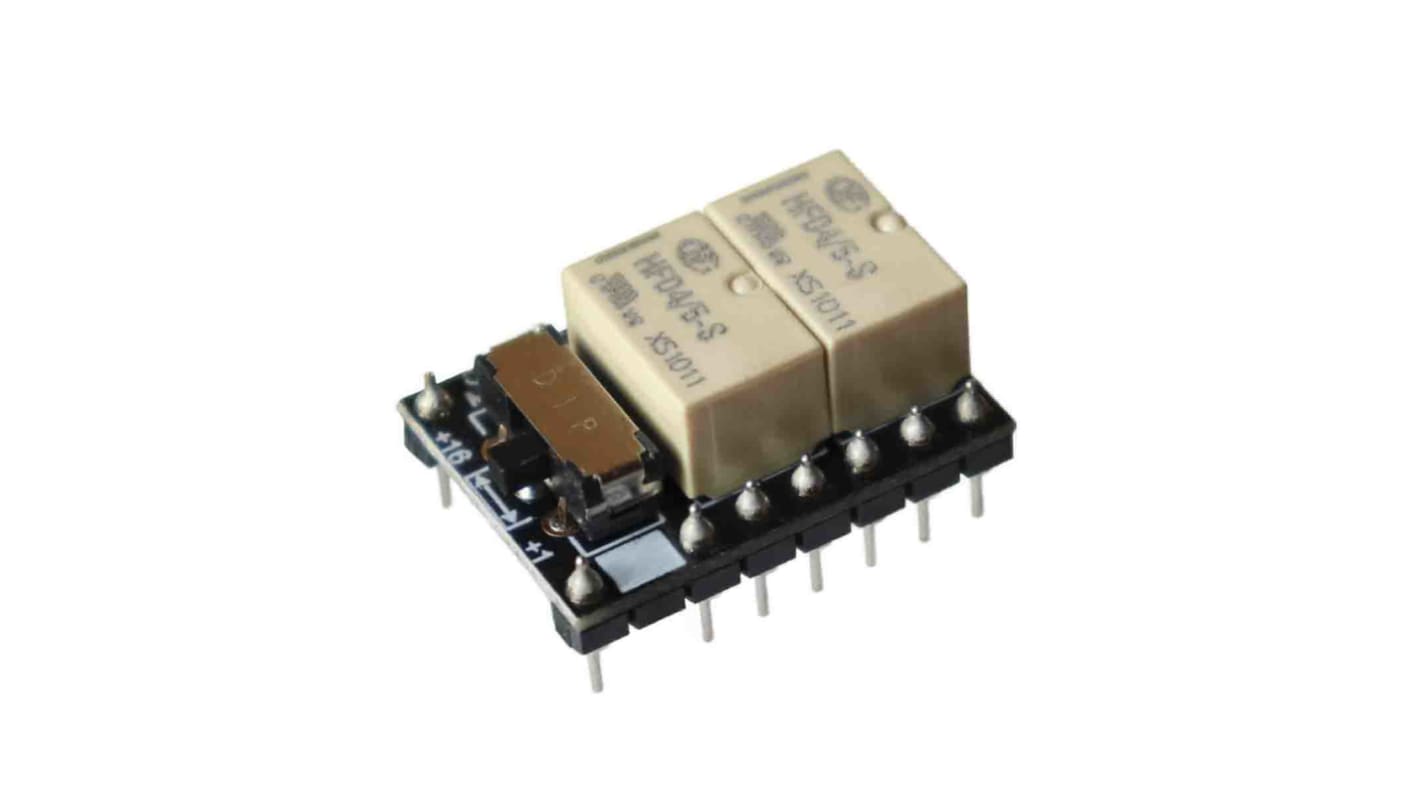

The RS PRO 4PDT 5V polarity selectable PCB mount relay is a drop in alternative solution to the obsolete Tyco/Axicom MT4 and Siemens V23104 relays. This relay module is fitted with polarised signal relays, the polarity selector switch enables easy integration into any relay circuit that previously used the original obsolete non- polarised relays.
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
