Units	Per Unit
1 - 24	MYR17.93
25 - 99	MYR17.55
100 - 249	MYR17.03
250 - 499	MYR16.63
500 +	MYR16.29

Select all	Attribute	Value
	Brand	Omron
	Coil Voltage	5V dc
	Contact Configuration	DPDT
	Mounting Type	PCB Mount
	Maximum Switching Current DC	2 A
	Maximum Switching Voltage AC	125V
	Maximum Switching Voltage DC	125V
	Series	MT
	Maximum Switching Power DC	60 W
	Latching	No
	Length	20.2mm
	Depth	10mm
	Height	11.5mm
	Dimensions	20.5 x 10 x 11.5mm
	Terminal Type	Through Hole
	Switching Current	2A
	Application	Signal
	Number of Poles	2
	Electrical Life	10^5 Operations
	Maximum Operating Temperature	+70°C
	Minimum Operating Temperature	-25°C
	Contact Material	Gold Plated
	Features	Conforms to FCC Part 68 Requirements, Bifurcated Contacts
	Coil Power	500mW
	Coil Resistance	50 Ω
	Maximum Switching Power AC	62.5 VA
	Operating Temperature Range	-25 → +70°C

	Select all
	Brand Omron
	Coil Voltage 5V dc
	Contact Configuration DPDT
	Mounting Type PCB Mount
	Maximum Switching Current DC 2 A
	Maximum Switching Voltage AC 125V
	Maximum Switching Voltage DC 125V
	Series MT
	Maximum Switching Power DC 60 W
	Latching No
	Length 20.2mm
	Depth 10mm
	Height 11.5mm
	Dimensions 20.5 x 10 x 11.5mm
	Terminal Type Through Hole
	Switching Current 2A
	Application Signal
	Number of Poles 2
	Electrical Life 10^5 Operations
	Maximum Operating Temperature +70°C
	Minimum Operating Temperature -25°C
	Contact Material Gold Plated
	Features Conforms to FCC Part 68 Requirements, Bifurcated Contacts
	Coil Power 500mW
	Coil Resistance 50 Ω
	Maximum Switching Power AC 62.5 VA
	Operating Temperature Range -25 → +70°C

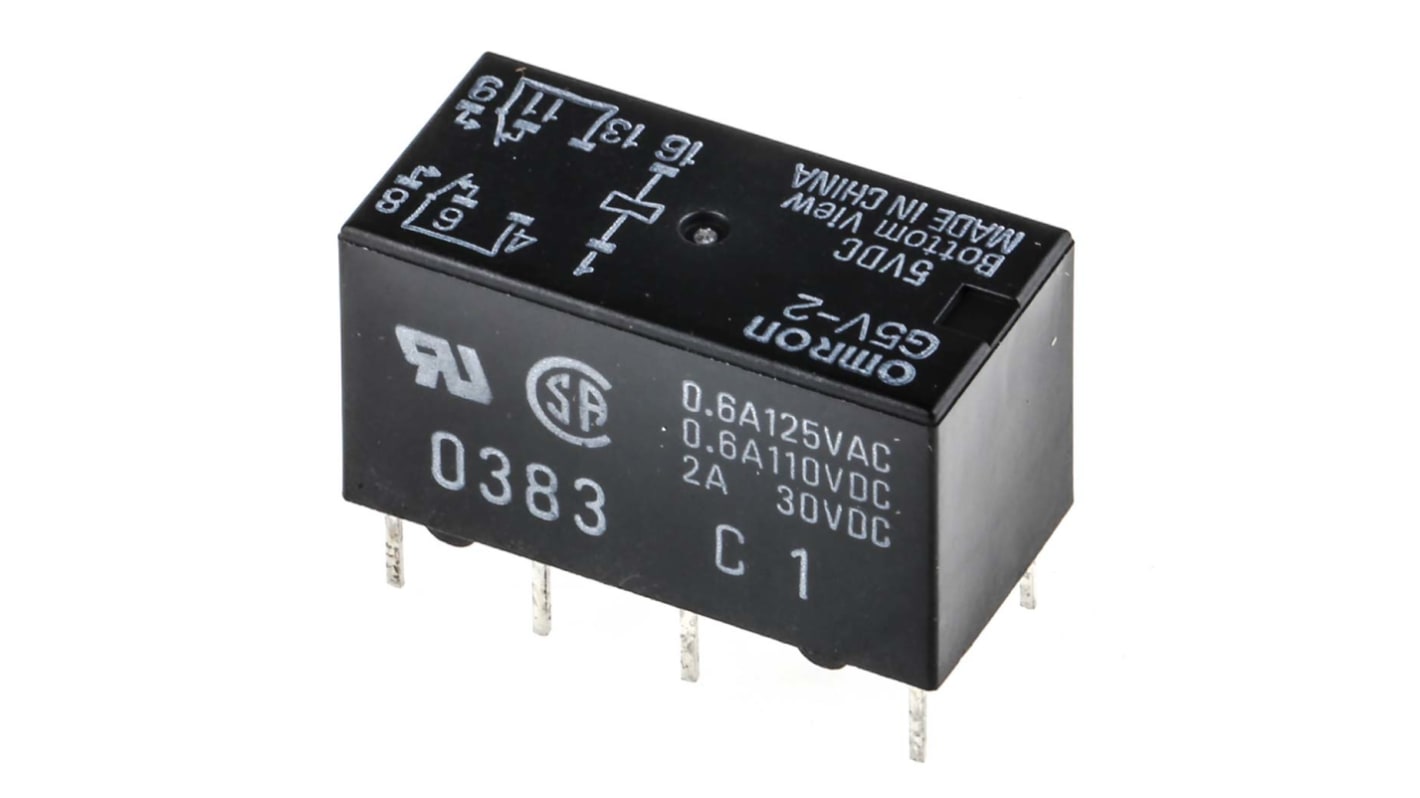

Omron PCB Mount Signal Relay, 5V dc Coil, 2A Switching Current, DPDT

FREE delivery for orders over MYR500.00

G5V-2 Series

Approvals

G5V-2 5DC Ultra-Miniature Low Signal Non-Latching Relay.

Non-Latching Relay Features and Benefits.

Coil Rating.

Contact Rating.

Additional Features of the G5V-2 5DC Miniature Non-Latching Relay.

Applications Include.

For these production packs, non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
