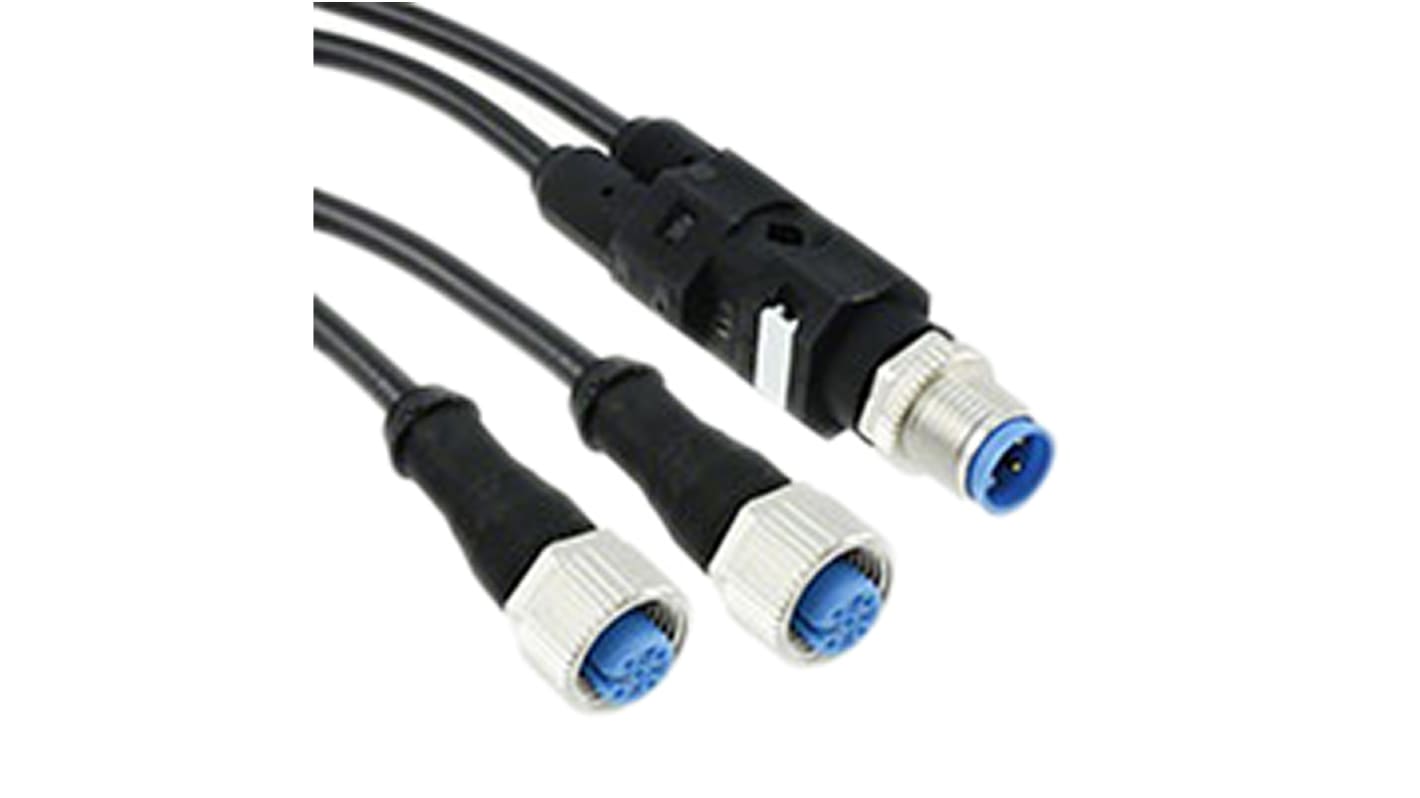

TE Connectivity Straight Male 4 way M12 to Straight Female 4 way M12 x 2 Sensor Actuator Cable, 1.5m
- RS Stock No.:
- 892-0393
- Mfr. Part No.:
- 1-2273107-4
- Manufacturer:
- TE Connectivity
Subtotal (1 unit)**
MYR218.00
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit |
---|---|
1 - 4 | MYR218.00 |
5 - 9 | MYR211.46 |
10 - 49 | MYR205.12 |
50 + | MYR198.96 |
**price indicative
- RS Stock No.:
- 892-0393
- Mfr. Part No.:
- 1-2273107-4
- Manufacturer:
- TE Connectivity
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Number of Cores | 4 | |
Cross Sectional Area | 0.34 mm² | |
Sheath Colour | Black | |
Length | 1.5m | |
Sheath Material | Polyurethane PUR | |
Connector 1 Gender | Male | |
Connector 1 | M12 | |
Connector 1 Number of Contacts | 4 | |
Connector 1 Orientation | Straight | |
Connector 2 Orientation | Straight | |
Connector 2 Number of Contacts | 4 | |
Connector 2 | M12 x 2 | |
Connector 2 Gender | Female | |
Connector 2 Housing Gender | Male | |
Shielded/Unshielded | Unshielded | |
Voltage Rating | 250 V ac/dc | |
Current Rating | 4 A | |
Standards Met | ELV Compliant, RoHS Compliant | |
Minimum Operating Temperature | -30°C | |
Cable Shape | Multicore | |
Maximum Operating Temperature | +80°C | |
Insulation Material | PVC | |
Connector 1 Housing Gender | Female | |
Operating Temperature Range | -30 → +80 °C | |
American Wire Gauge | 22 AWG | |
Outer Diameter | 4.9mm | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Number of Cores 4 | ||
Cross Sectional Area 0.34 mm² | ||
Sheath Colour Black | ||
Length 1.5m | ||
Sheath Material Polyurethane PUR | ||
Connector 1 Gender Male | ||
Connector 1 M12 | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 Orientation Straight | ||
Connector 2 Orientation Straight | ||
Connector 2 Number of Contacts 4 | ||
Connector 2 M12 x 2 | ||
Connector 2 Gender Female | ||
Connector 2 Housing Gender Male | ||
Shielded/Unshielded Unshielded | ||
Voltage Rating 250 V ac/dc | ||
Current Rating 4 A | ||
Standards Met ELV Compliant, RoHS Compliant | ||
Minimum Operating Temperature -30°C | ||
Cable Shape Multicore | ||
Maximum Operating Temperature +80°C | ||
Insulation Material PVC | ||
Connector 1 Housing Gender Female | ||
Operating Temperature Range -30 → +80 °C | ||
American Wire Gauge 22 AWG | ||
Outer Diameter 4.9mm | ||
