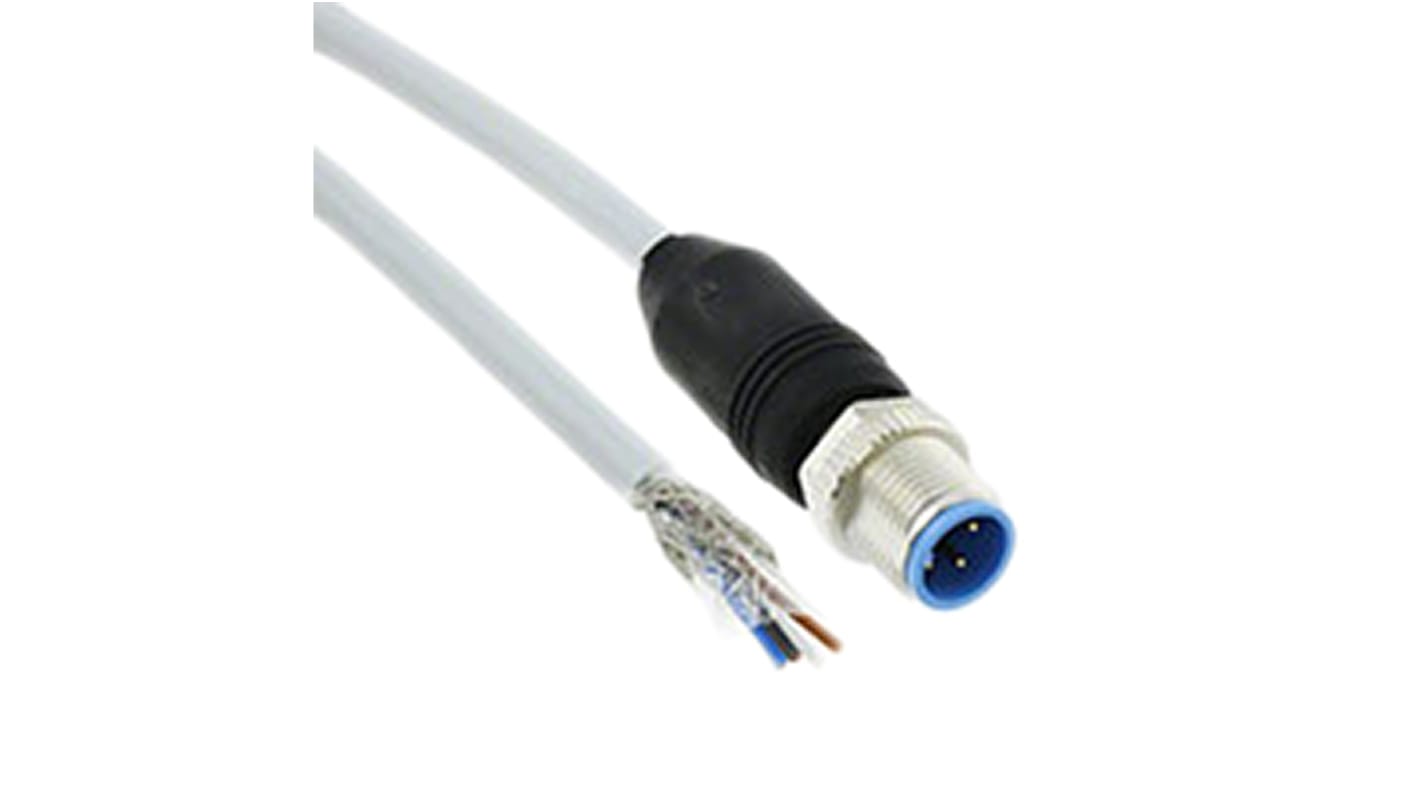

TE Connectivity Straight Male 4 way M12 to Unterminated Sensor Actuator Cable, 1.5m
- RS Stock No.:
- 892-0334
- Mfr. Part No.:
- 1-2273044-1
- Manufacturer:
- TE Connectivity
Subtotal (1 unit)**
MYR104.89
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit |
---|---|
1 - 6 | MYR104.89 |
7 - 12 | MYR102.68 |
13 + | MYR99.60 |
**price indicative
- RS Stock No.:
- 892-0334
- Mfr. Part No.:
- 1-2273044-1
- Manufacturer:
- TE Connectivity
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Cross Sectional Area | 0.34 mm² | |
Number of Cores | 4 | |
Sheath Colour | Grey | |
Length | 1.5m | |
Sheath Material | PUR | |
Connector 1 Gender | Male | |
Connector 1 Orientation | Straight | |
Connector 1 | M12 | |
Connector 1 Number of Contacts | 4 | |
Connector 2 | Unterminated | |
Coding | A | |
Shielded/Unshielded | Shielded | |
Current Rating | 4 A | |
Voltage Rating | 60 V ac/dc | |
IP Rating | IP65, IP67 | |
Maximum Operating Temperature | +80°C | |
Minimum Bend Radius | 59 mm | |
Minimum Operating Temperature | -30°C | |
Cable Shape | Multicore | |
Standards Met | CSA, ELV Compliant, EN 60536, RoHS Compliant, UL | |
Insulation Material | PVC | |
Connector 1 Housing Gender | Male | |
Operating Temperature Range | -30 → +80 °C | |
Outer Diameter | 5.9mm | |
American Wire Gauge | 22 AWG | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 4 | ||
Sheath Colour Grey | ||
Length 1.5m | ||
Sheath Material PUR | ||
Connector 1 Gender Male | ||
Connector 1 Orientation Straight | ||
Connector 1 M12 | ||
Connector 1 Number of Contacts 4 | ||
Connector 2 Unterminated | ||
Coding A | ||
Shielded/Unshielded Shielded | ||
Current Rating 4 A | ||
Voltage Rating 60 V ac/dc | ||
IP Rating IP65, IP67 | ||
Maximum Operating Temperature +80°C | ||
Minimum Bend Radius 59 mm | ||
Minimum Operating Temperature -30°C | ||
Cable Shape Multicore | ||
Standards Met CSA, ELV Compliant, EN 60536, RoHS Compliant, UL | ||
Insulation Material PVC | ||
Connector 1 Housing Gender Male | ||
Operating Temperature Range -30 → +80 °C | ||
Outer Diameter 5.9mm | ||
American Wire Gauge 22 AWG | ||
