Units	Per Unit
1 - 4	MYR137.63
5 +	MYR133.50

Select all	Attribute	Value
	Brand	HARTING
	Series	2134
	Number of Cores	8
	Cross Sectional Area	0.25 mm²
	Length	5m
	Sheath Material	PUR
	Sheath Colour	Grey
	Connector 1 Number of Contacts	8
	Connector 1 Orientation	Straight
	Connector 1 Gender	Female
	Connector 1	M12
	Connector 2	Unterminated
	Coding	A
	Shielded/Unshielded	Unshielded
	IP Rating	IP67
	Cable Shape	Multicore
	Minimum Operating Temperature	-25°C
	Operating Temperature Range	-25 → +80 °C
	Maximum Operating Temperature	+80°C
	American Wire Gauge	24 AWG
	Standards Met	IEC 61076-2-101, ISO/IEC 11 801, ISO/IEC 24 702, RoHS Compliant
	Connector 1 Housing Gender	Female

	Select all
	Brand HARTING
	Series 2134
	Number of Cores 8
	Cross Sectional Area 0.25 mm²
	Length 5m
	Sheath Material PUR
	Sheath Colour Grey
	Connector 1 Number of Contacts 8
	Connector 1 Orientation Straight
	Connector 1 Gender Female
	Connector 1 M12
	Connector 2 Unterminated
	Coding A
	Shielded/Unshielded Unshielded
	IP Rating IP67
	Cable Shape Multicore
	Minimum Operating Temperature -25°C
	Operating Temperature Range -25 → +80 °C
	Maximum Operating Temperature +80°C
	American Wire Gauge 24 AWG
	Standards Met IEC 61076-2-101, ISO/IEC 11 801, ISO/IEC 24 702, RoHS Compliant
	Connector 1 Housing Gender Female

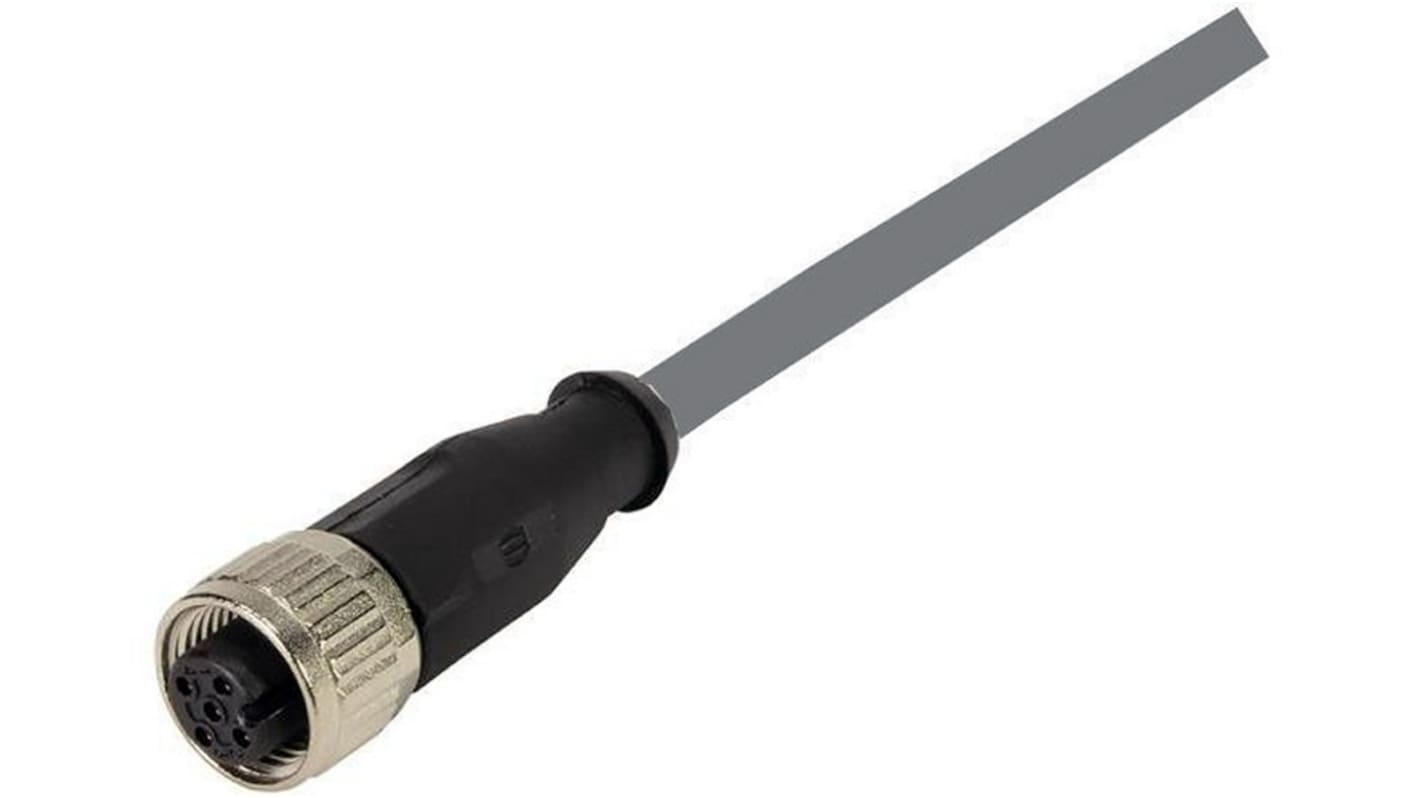

HARTING Straight Female 8 way M12 to Unterminated Sensor Actuator Cable, 5m

FREE delivery for orders over MYR500.00

M12 A-Coded Single Ended Connector Cordsets
