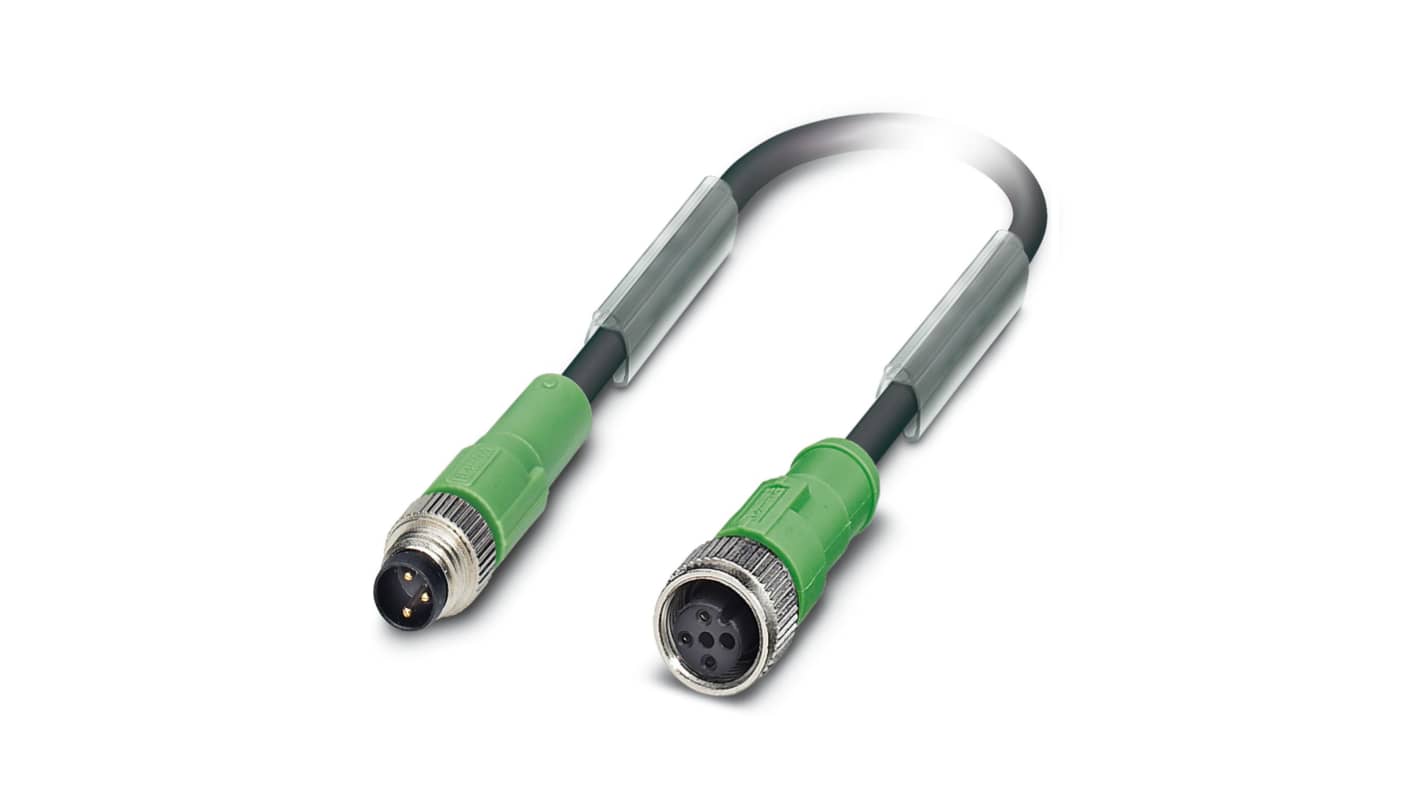

Phoenix Contact Straight Male 3 way M8 to Straight Female 3 way M12 Sensor Actuator Cable, 3m

RS Stock No.:: 861-1490
Mfr. Part No.:: 1682333
Manufacturer:: Phoenix Contact

Phoenix Contact Straight Male 3 way M8 to Straight Female 3 way M12 Sensor Actuator Cable, 3m

Subtotal (1 unit)**

MYR136.42

12 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 +	MYR136.42

**price indicative

RS Stock No.:: 861-1490
Mfr. Part No.:: 1682333
Manufacturer:: Phoenix Contact

Datasheet

Attribute	Value
Series	0-PUR/M12FS, SAC-3P-M 8MS/3
Cross Sectional Area	3 x 0.25 mm²
Number of Cores	3
Sheath Material	PUR
Sheath Colour	Black, Grey
Length	3m
Connector 1 Orientation	Straight
Connector 1 Number of Contacts	3
Connector 1 Gender	Male
Connector 1	M8
Connector 2	M12
Connector 2 Number of Contacts	3
Connector 2 Orientation	Straight
Connector 2 Gender	Female
Coding	A
Shielded/Unshielded	Unshielded
Voltage Rating	60 V
Current Rating	4 A
IP Rating	IP65, IP67, IP68
Standards Met	IEC 61076-2-101, IEC 61076-2-104
Minimum Operating Temperature	-40°C
Minimum Bend Radius	18 mm
Conductor Material	Bare Cu litz wires
Maximum Operating Temperature	+80°C
Operating Temperature Range	-40 → +80 °C
Insulation Material	PP
Conductor Resistance	78 O/km

Phoenix Contact Straight Male 3 way M8 to Straight Female 3 way M12 Sensor Actuator Cable, 3m

FREE delivery for orders over MYR700.00

Phoenix Contact SAC-3P-M 8MS/3,0-PUR/M12FS Series Sensor Actuator Cable, 3m Length, IP65/IP67/IP68 - 1682333

Features & Benefits

Applications

What type of environment can this be used in?

Can the cable handle high temperatures?

How flexible is the cable during installation?

What kind of connectors are compatible with this cable?
