Select all	Attribute	Value
	Brand	Phoenix Contact
	Series	SAC-4P
	Number of Cores	4
	Cross Sectional Area	0.5 mm²
	Sheath Material	PE
	Length	10m
	Sheath Colour	Black/Grey
	Connector 1 Number of Contacts	4
	Connector 1	M12
	Connector 1 Gender	Male
	Connector 2 Gender	Female
	Coding	A
	Current Rating	4 A
	Voltage Rating	250 V
	IP Rating	IP65, IP67, IP68, IP69K
	American Wire Gauge	20 AWG
	Outer Diameter	5.2mm
	Connector 1 Housing Gender	Female
	Fire Behaviour	Halogen Free
	Cable Shape	Twisted Pair
	Oil Resistant	Yes
	Insulation Material	PE
	Minimum Bend Radius	26 mm (Fixed), 52 mm (Movable)
	Conductor Material	Bare Cu litz wires

	Select all
	Brand Phoenix Contact
	Series SAC-4P
	Number of Cores 4
	Cross Sectional Area 0.5 mm²
	Sheath Material PE
	Length 10m
	Sheath Colour Black/Grey
	Connector 1 Number of Contacts 4
	Connector 1 M12
	Connector 1 Gender Male
	Connector 2 Gender Female
	Coding A
	Current Rating 4 A
	Voltage Rating 250 V
	IP Rating IP65, IP67, IP68, IP69K
	American Wire Gauge 20 AWG
	Outer Diameter 5.2mm
	Connector 1 Housing Gender Female
	Fire Behaviour Halogen Free
	Cable Shape Twisted Pair
	Oil Resistant Yes
	Insulation Material PE
	Minimum Bend Radius 26 mm (Fixed), 52 mm (Movable)
	Conductor Material Bare Cu litz wires

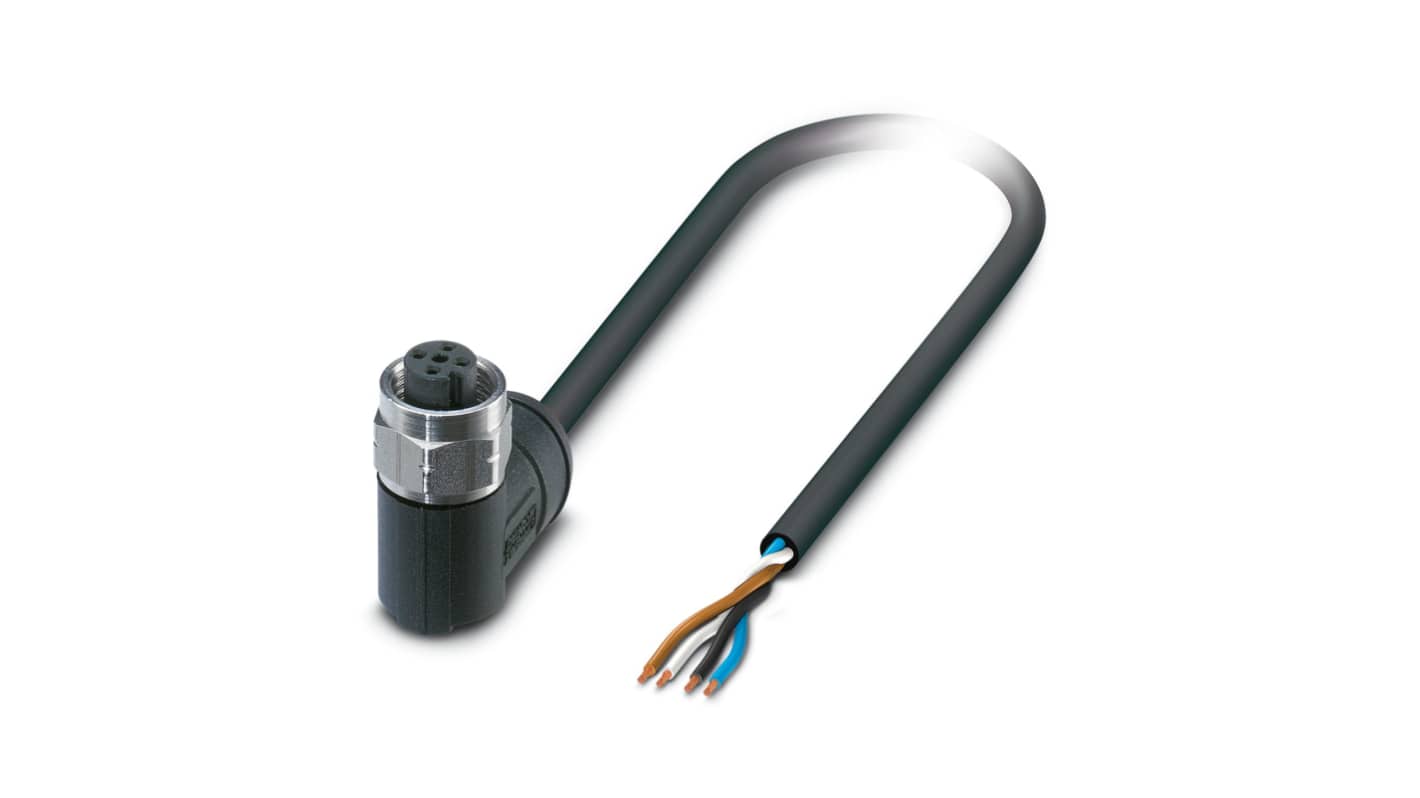

Phoenix Contact Male 4 way M12 to Female Sensor Actuator Cable, 10m
