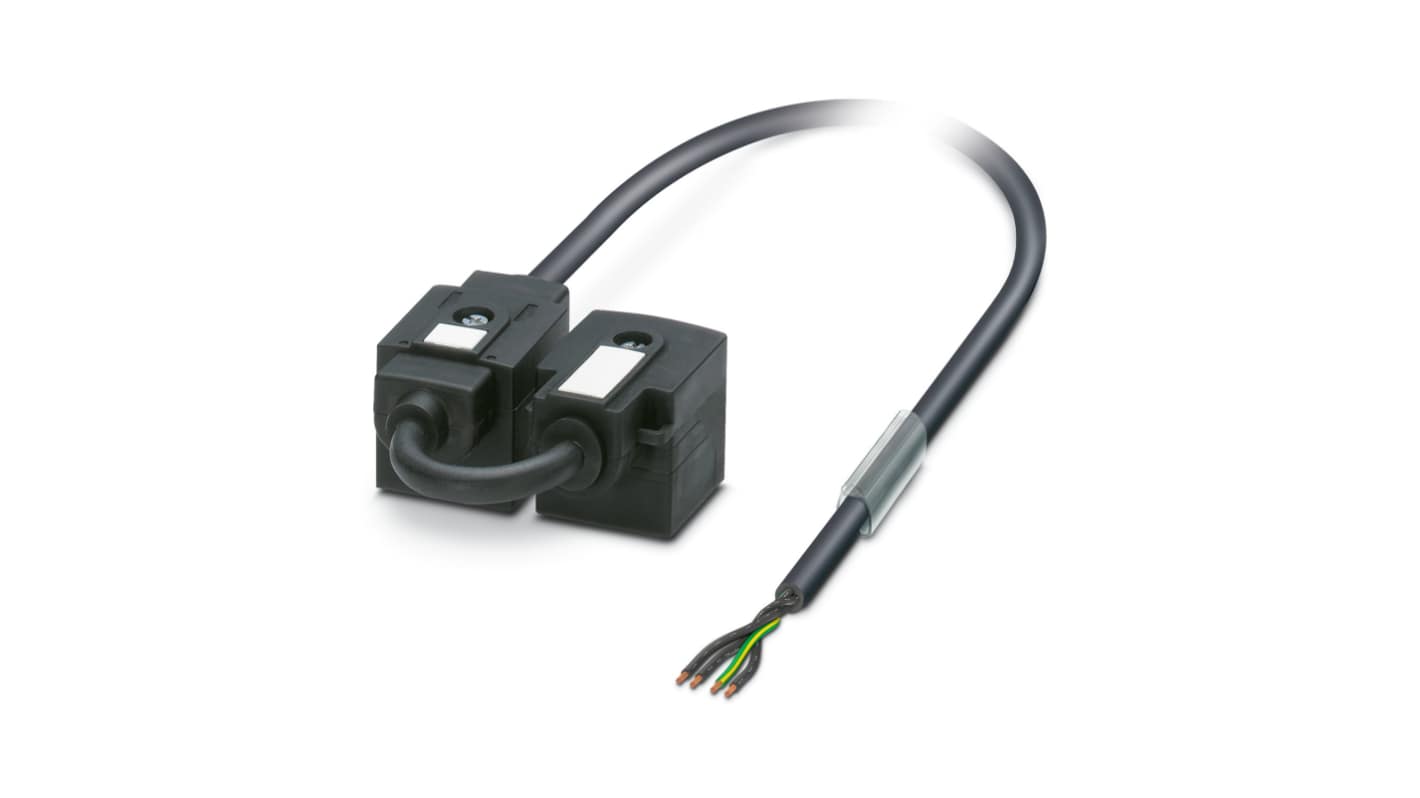

Phoenix Contact Straight Female 4 way DIN 43650 Form A x 2 to Unterminated Sensor Actuator Cable, 10m

RS Stock No.:: 858-8286
Mfr. Part No.:: 1458091
Manufacturer:: Phoenix Contact

Phoenix Contact Straight Female 4 way DIN 43650 Form A x 2 to Unterminated Sensor Actuator Cable, 10m

Price Each

MYR309.24

Temporarily out of stock - back order for despatch 03/01/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 +	MYR309.24

RS Stock No.:: 858-8286
Mfr. Part No.:: 1458091
Manufacturer:: Phoenix Contact

Datasheet

Attribute	Value
Series	SAC
Cross Sectional Area	0.75 mm²
Number of Cores	4
Length	10m
Sheath Colour	Black
Sheath Material	PUR
Connector 1 Orientation	Straight
Connector 1 Gender	Female
Connector 1 Number of Contacts	4
Connector 1	DIN 43650 Form A x 2
Connector 2	Unterminated
Current Rating	4 A
Voltage Rating	24 V
IP Rating	IP65, IP67
Conductor Material	Bare Cu litz wires
American Wire Gauge	18 AWG
Insulation Material	PVC
Cable Shape	Twisted Pair
Outer Diameter	6.3mm
Minimum Bend Radius	63 mm

Phoenix Contact Straight Female 4 way DIN 43650 Form A x 2 to Unterminated Sensor Actuator Cable, 10m
