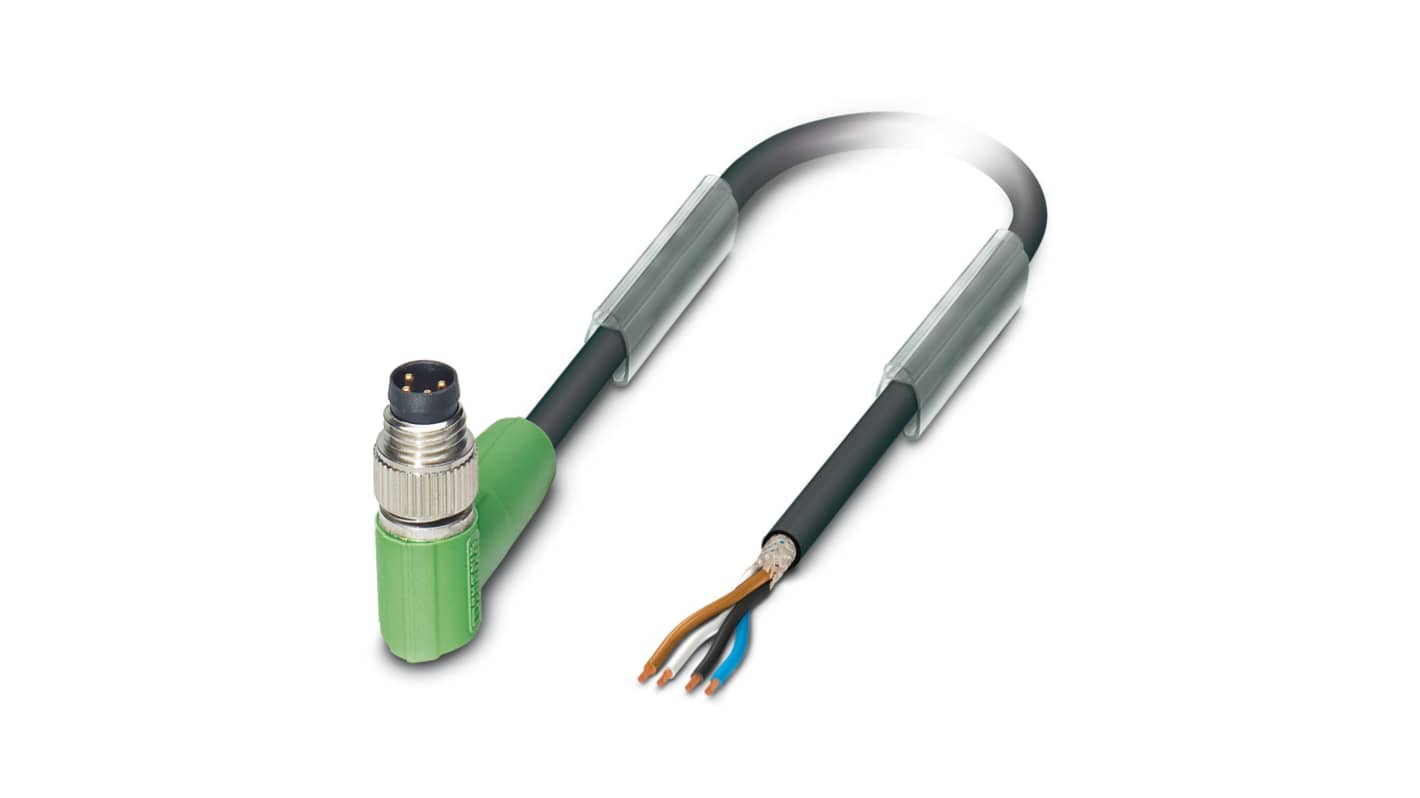

Phoenix Contact Right Angle Male 4 way M8 to Sensor Actuator Cable, 5m

RS Stock No.:: 856-6624
Mfr. Part No.:: 1521889
Manufacturer:: Phoenix Contact

Phoenix Contact Right Angle Male 4 way M8 to Sensor Actuator Cable, 5m

Price Each**

MYR186.63

Temporarily out of stock - back order for despatch 14/02/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 +	MYR186.63

**price indicative

RS Stock No.:: 856-6624
Mfr. Part No.:: 1521889
Manufacturer:: Phoenix Contact

Datasheet

Attribute	Value
Series	SAC-4P
Number of Cores	4
Cross Sectional Area	0.25 mm²
Length	5m
Sheath Material	PUR
Sheath Colour	Black/Grey
Connector 1 Gender	Male
Connector 1 Number of Contacts	4
Connector 1 Orientation	Right Angle
Connector 1	M8
Voltage Rating	30 V
Current Rating	4 A
IP Rating	IP65, IP67
Conductor Material	Bare Cu litz wires
Minimum Bend Radius	25 mm (Fixed), 50 mm (Movable)
Insulation Material	PP
Cable Shape	Twisted Pair
American Wire Gauge	24 AWG
Outer Diameter	5mm
Connector 1 Housing Gender	Male

Phoenix Contact Right Angle Male 4 way M8 to Sensor Actuator Cable, 5m
