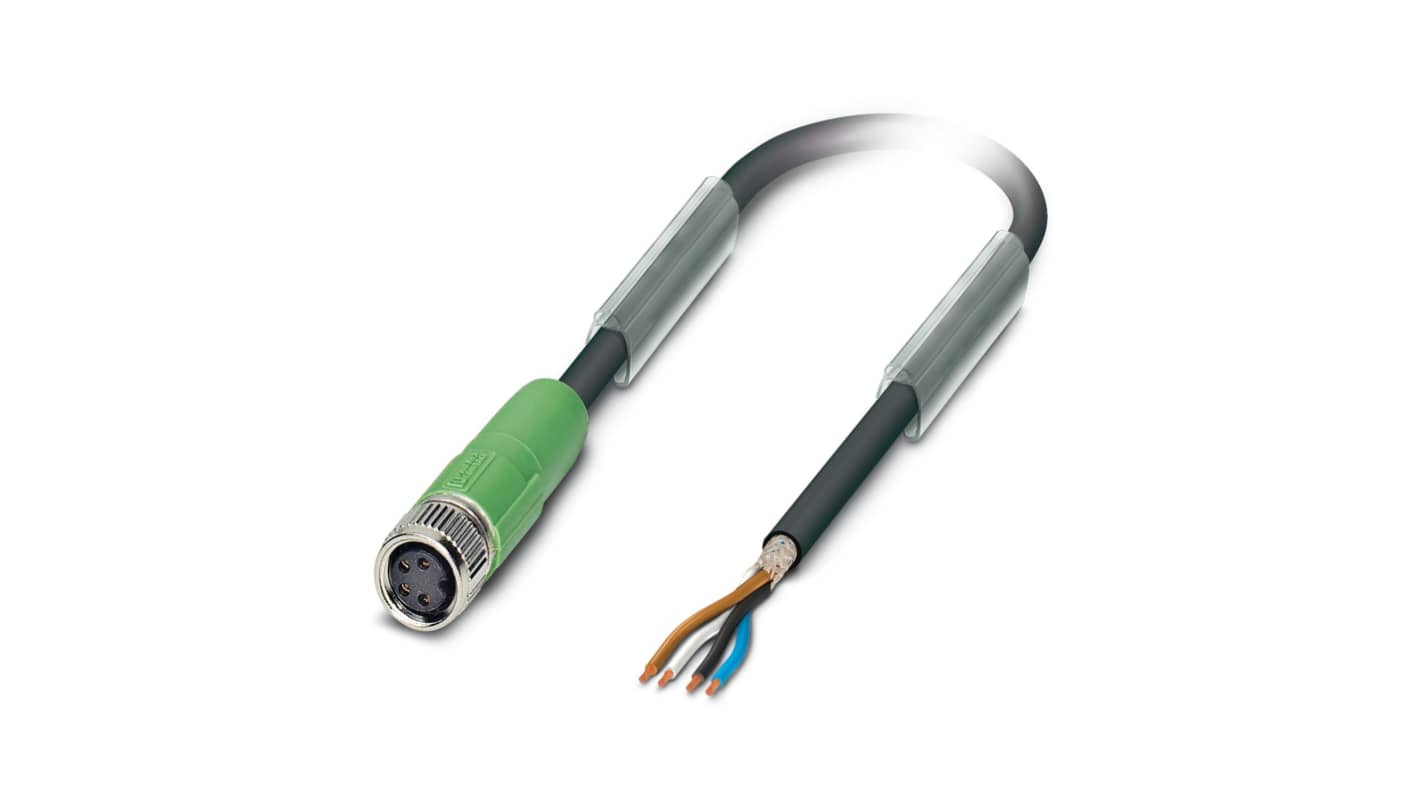

    Phoenix Contact Straight Female 4 way M8 to Sensor Actuator Cable, 5m

    Subtotal (1 unit)**

    MYR185.78

    Add to Basket
    Select or type quantity
    25 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Units
    Per Unit
    1 +MYR185.78

    **price indicative

    RS Stock No.:
    856-6549
    Mfr. Part No.:
    1521931
    Manufacturer:
    Phoenix Contact
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Phoenix Contact

    Series

    SAC-4P

    Number of Cores

    4

    Cross Sectional Area

    0.25 mm²

    Sheath Material

    PUR

    Sheath Colour

    Black/Grey

    Length

    5m

    Connector 1 Number of Contacts

    4

    Connector 1

    M8

    Connector 1 Orientation

    Straight

    Connector 1 Gender

    Female

    Coding

    A

    Shielding

    Shielded

    Voltage Rating

    30 V

    Current Rating

    4 A

    IP Rating

    IP65, IP67

    Operating Temperature Range

    -25 → +90 °C

    Connector 1 Housing Gender

    Female

    Insulation Material

    PP

    Minimum Operating Temperature

    -25°C

    Cable Shape

    Twisted Pair

    Standards Met

    EAC

    Fire Behaviour

    Flame Retardant

    Maximum Operating Temperature

    +90°C

    American Wire Gauge

    24 AWG

    Outer Diameter

    5mm

    Conductor Material

    Bare Cu litz wires

    Minimum Bend Radius

    25 mm (Fixed), 50 mm (Movable)

    Oil Resistant

    Yes
