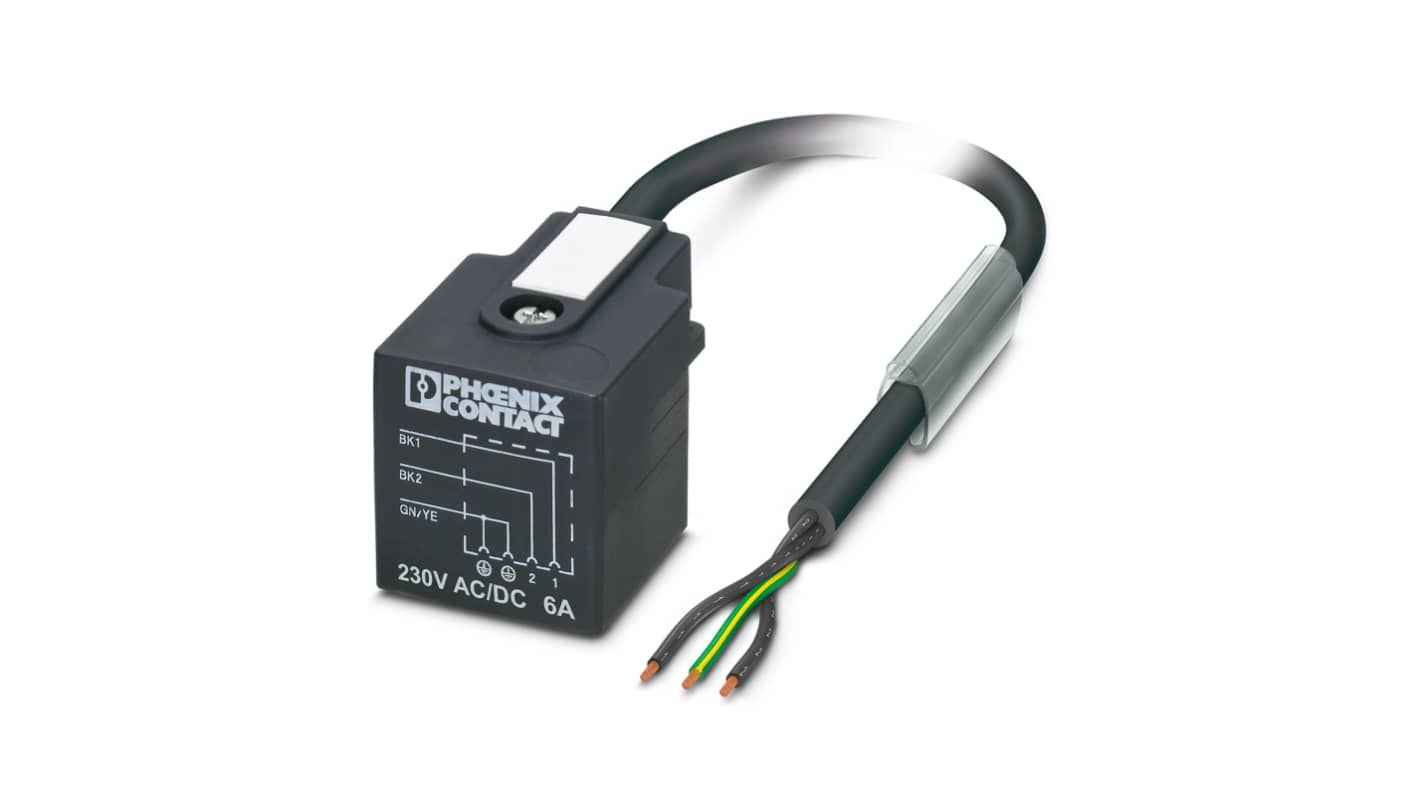

Phoenix Contact Straight Male 3 way DIN 43650 Form A to Unterminated Sensor Actuator Cable, 5m

RS Stock No.:: 856-6309
Mfr. Part No.:: 1402984
Manufacturer:: Phoenix Contact

Phoenix Contact Straight Male 3 way DIN 43650 Form A to Unterminated Sensor Actuator Cable, 5m

Subtotal (1 unit)**

MYR91.65

Temporarily out of stock - back order for despatch 08/03/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 +	MYR91.65

**price indicative

RS Stock No.:: 856-6309
Mfr. Part No.:: 1402984
Manufacturer:: Phoenix Contact

Datasheet

Attribute	Value
Series	SAC-3P-5
Number of Cores	3
Cross Sectional Area	0.5 mm²
Sheath Colour	Black/Grey
Sheath Material	PUR
Length	5m
Connector 1 Gender	Male
Connector 1	DIN 43650 Form A
Connector 1 Orientation	Straight
Connector 1 Number of Contacts	3
Connector 2	Unterminated
Current Rating	6 A
Voltage Rating	230 V
IP Rating	IP65, IP67
Insulation Material	PP
Conductor Material	Bare Cu litz wires
Fire Behaviour	Halogen Free
Connector 1 Housing Gender	Male
Cable Shape	Twisted Pair
American Wire Gauge	20 AWG
Oil Resistant	Yes
Minimum Bend Radius	22.5 mm
Outer Diameter	4.5mm

Phoenix Contact Straight Male 3 way DIN 43650 Form A to Unterminated Sensor Actuator Cable, 5m
