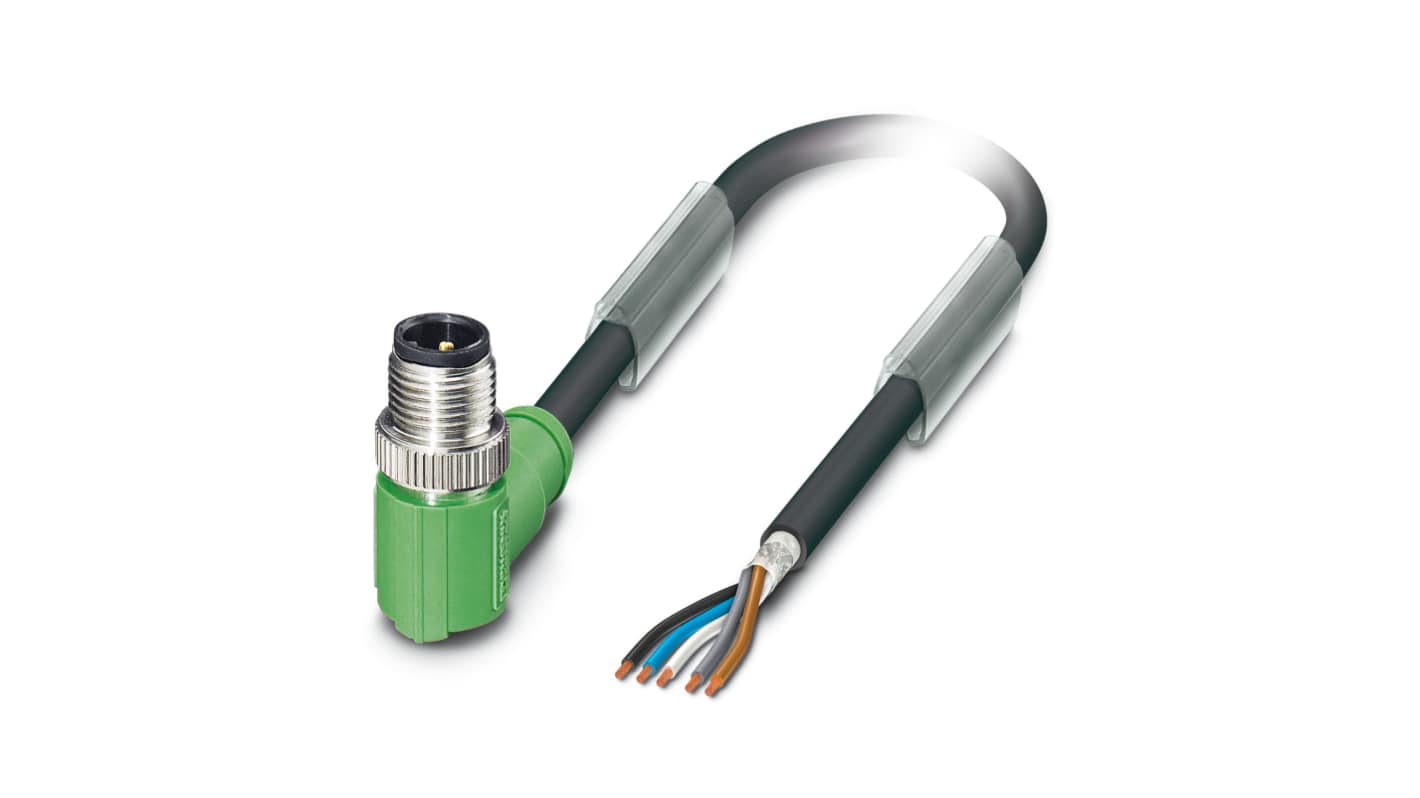

Phoenix Contact Male 5 way M12 to Sensor Actuator Cable, 3m
- RS Stock No.:
- 856-6233
- Mfr. Part No.:
- 1682760
- Manufacturer:
- Phoenix Contact
Subtotal (1 unit)**
MYR140.01
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
---|---|
1 + | MYR140.01 |
**price indicative
- RS Stock No.:
- 856-6233
- Mfr. Part No.:
- 1682760
- Manufacturer:
- Phoenix Contact
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | SAC-5P-M12MR | |
Cross Sectional Area | 0.34 mm² | |
Number of Cores | 5 | |
Length | 3m | |
Sheath Colour | Black/Grey | |
Sheath Material | PUR | |
Connector 1 Gender | Male | |
Connector 1 | M12 | |
Connector 1 Number of Contacts | 5 | |
Coding | A | |
Voltage Rating | 48 V ac, 60 V dc | |
Current Rating | 4 A | |
IP Rating | IP65, IP67 | |
Insulation Material | PP | |
Outer Diameter | 5.25mm | |
Cable Shape | Twisted Pair | |
Oil Resistant | Yes | |
Minimum Bend Radius | 26 mm (Fixed), 52 mm (Movable) | |
Connector 1 Housing Gender | Male | |
American Wire Gauge | 22 AWG | |
Conductor Material | Bare Cu litz wires | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series SAC-5P-M12MR | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 5 | ||
Length 3m | ||
Sheath Colour Black/Grey | ||
Sheath Material PUR | ||
Connector 1 Gender Male | ||
Connector 1 M12 | ||
Connector 1 Number of Contacts 5 | ||
Coding A | ||
Voltage Rating 48 V ac, 60 V dc | ||
Current Rating 4 A | ||
IP Rating IP65, IP67 | ||
Insulation Material PP | ||
Outer Diameter 5.25mm | ||
Cable Shape Twisted Pair | ||
Oil Resistant Yes | ||
Minimum Bend Radius 26 mm (Fixed), 52 mm (Movable) | ||
Connector 1 Housing Gender Male | ||
American Wire Gauge 22 AWG | ||
Conductor Material Bare Cu litz wires | ||
