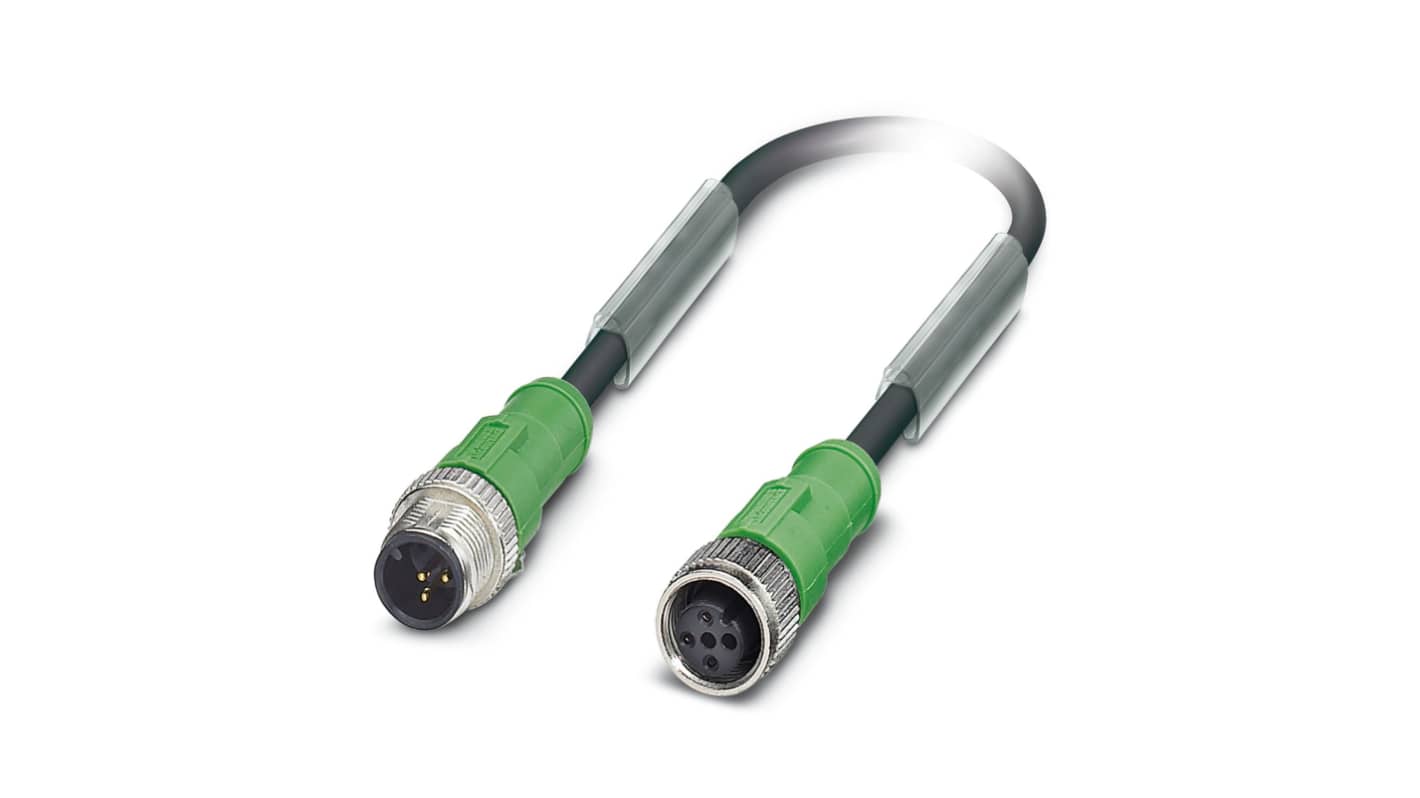

Phoenix Contact Straight Male 3 way M12 to Straight Female 3 way M12 Sensor Actuator Cable, 5m

RS Stock No.:: 856-6129
Mfr. Part No.:: 1402561
Manufacturer:: Phoenix Contact

Phoenix Contact Straight Male 3 way M12 to Straight Female 3 way M12 Sensor Actuator Cable, 5m

Price 1 Box of 50**

MYR7,228.61

Temporarily out of stock - back order for despatch 15/02/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Box(es)	Per Box	Per Unit**
1 +	MYR7,228.61	MYR144.572

**price indicative

RS Stock No.:: 856-6129
Mfr. Part No.:: 1402561
Manufacturer:: Phoenix Contact

Datasheet

Attribute	Value
Series	SAC-3P-M12MS
Number of Cores	3
Cross Sectional Area	0.5 mm²
Sheath Colour	Black/Grey
Sheath Material	PUR
Length	5m
Connector 1 Number of Contacts	3
Connector 1	M12
Connector 1 Orientation	Straight
Connector 1 Gender	Male
Connector 2 Number of Contacts	3
Connector 2 Gender	Female
Connector 2 Orientation	Straight
Connector 2 Housing Gender	Female
Connector 2	M12
Coding	A
Voltage Rating	250 V
Current Rating	4 A
IP Rating	IP65, IP67, IP68
Minimum Bend Radius	22.5 mm
Oil Resistant	Yes
American Wire Gauge	20 AWG
Outer Diameter	4.5mm
Conductor Material	Bare Cu litz wires
Insulation Material	PP
Connector 1 Housing Gender	Male
Cable Shape	Twisted Pair

Phoenix Contact Straight Male 3 way M12 to Straight Female 3 way M12 Sensor Actuator Cable, 5m
