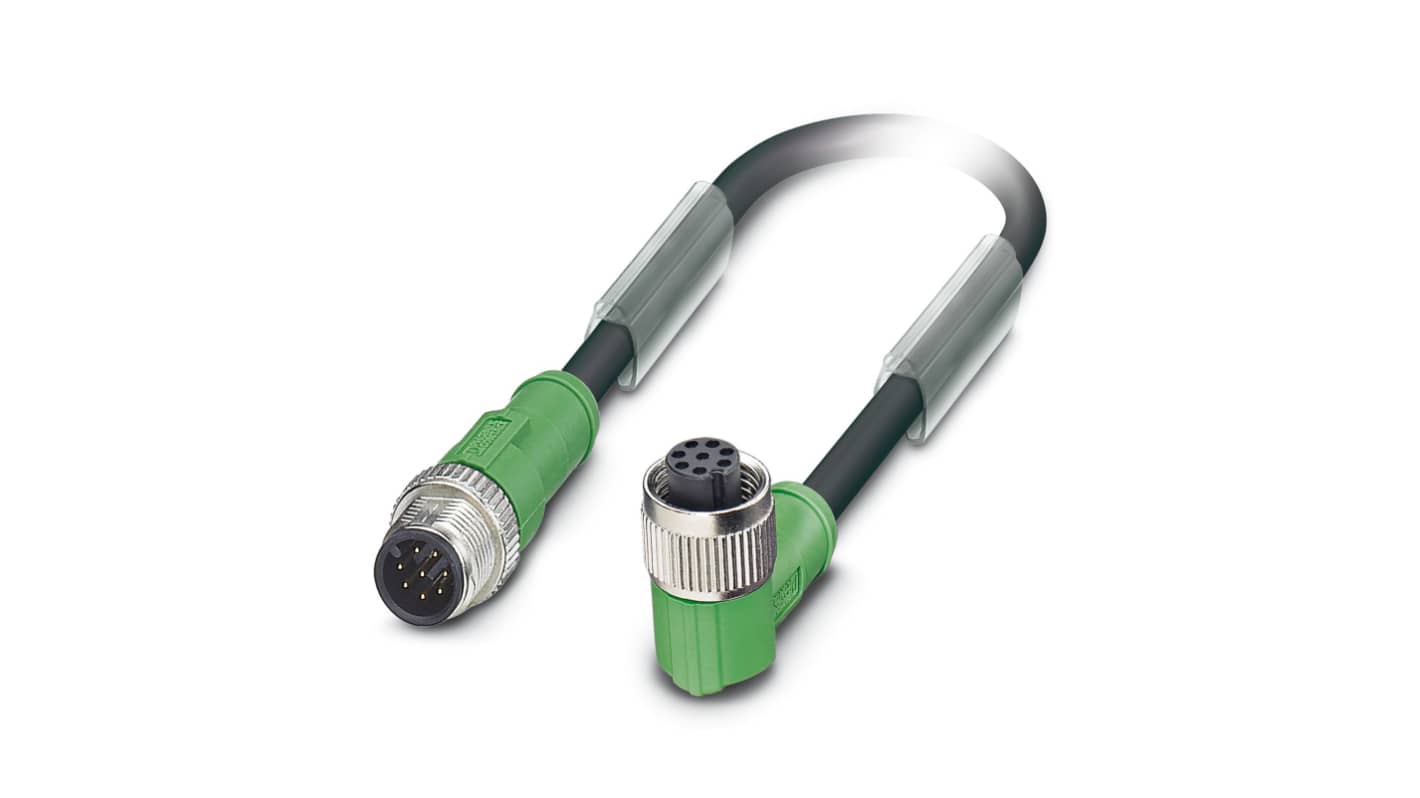

    Phoenix Contact Straight Male 8 way M12 to Right Angle Female 8 way M12 Sensor Actuator Cable, 3m

    View all Sensor & Actuator Cables

    Subtotal (1 unit)**

    MYR303.71

    Add to Basket
    Select or type quantity
    11 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Units
    Per Unit
    1 +MYR303.71

    **price indicative

    RS Stock No.:
    856-6003
    Mfr. Part No.:
    1522752
    Manufacturer:
    Phoenix Contact
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Phoenix Contact

    Series

    SAC-8P-M12MS

    Number of Cores

    8

    Cross Sectional Area

    0.25 mm²

    Length

    3m

    Sheath Material

    PUR

    Sheath Colour

    Black/Grey

    Connector 1 Orientation

    Straight

    Connector 1 Number of Contacts

    8

    Connector 1 Gender

    Male

    Connector 1

    M12

    Connector 2 Housing Gender

    Female

    Connector 2 Number of Contacts

    8

    Connector 2 Orientation

    Right Angle

    Connector 2 Gender

    Female

    Connector 2

    M12

    Coding

    A

    Shielded/Unshielded

    Unshielded

    Shielding

    Unshielded

    Current Rating

    2 A

    Voltage Rating

    30 V

    IP Rating

    IP65, IP67, IP68

    Connector 1 Housing Gender

    Male

    Operating Temperature Range

    -25 → +80 °C, -40 → +80 °C

    Standards Met

    cUL, UL

    Minimum Operating Temperature

    -25 °C, -40 °C

    Cable Shape

    Twisted Pair

    Outer Diameter

    5.9mm

    Conductor Material

    Bare Cu litz wires

    American Wire Gauge

    24 AWG

    Maximum Operating Temperature

    +80°C

    Insulation Material

    PP

    Oil Resistant

    Yes

    Minimum Bend Radius

    8 x D (Fixed), 10 x D (Flexible)
