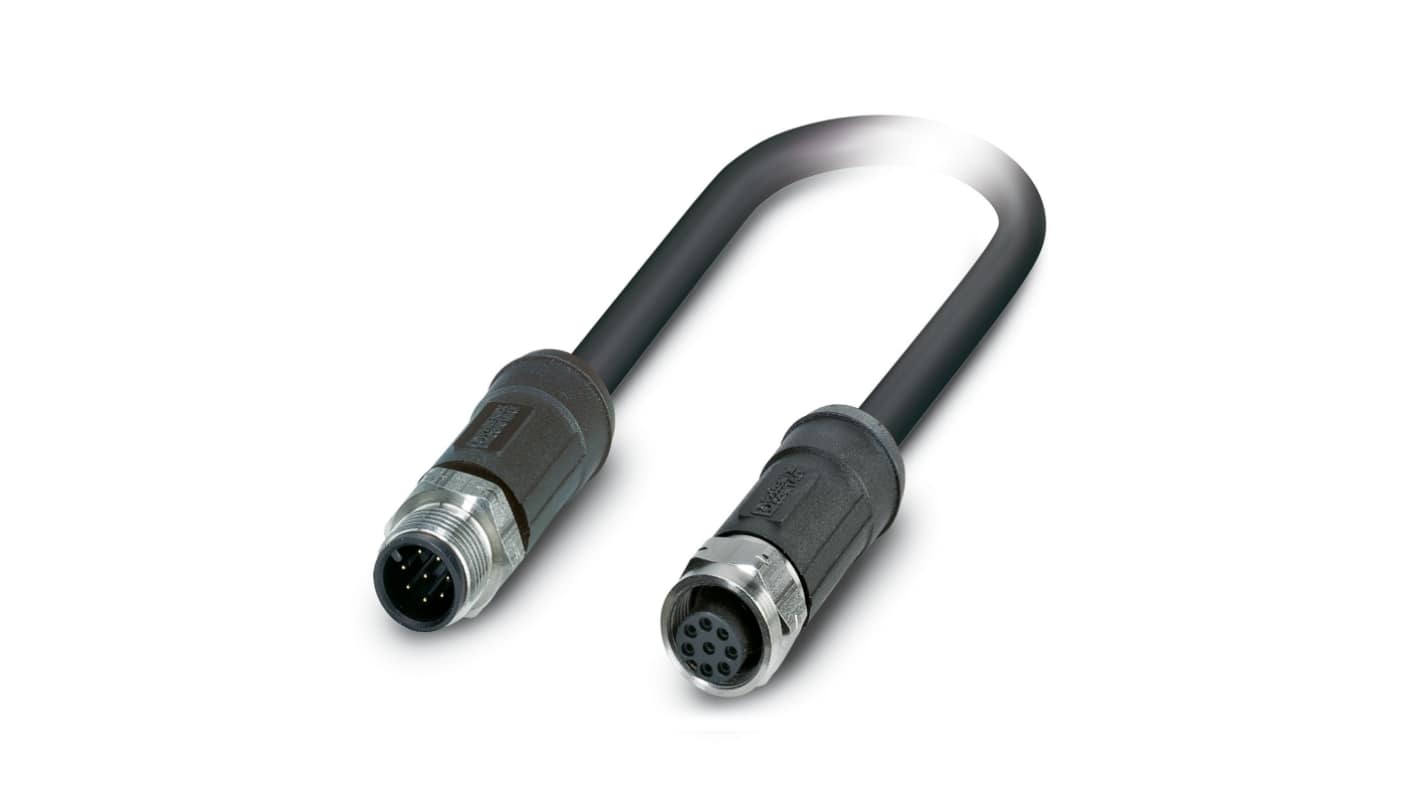

    Phoenix Contact Straight Male 8 way M12 to Straight Female 8 way M12 Sensor Actuator Cable, 2m

    View all Sensor & Actuator Cables

    Subtotal (1 unit)**

    MYR308.35

    Add to Basket
    Select or type quantity
    2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
    7 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Units
    Per Unit
    1 +MYR308.35

    **price indicative

    RS Stock No.:
    856-5934
    Mfr. Part No.:
    1407277
    Manufacturer:
    Phoenix Contact
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Phoenix Contact

    Series

    SAC-8P-M12MS

    Number of Cores

    8

    Cross Sectional Area

    0.25 mm²

    Sheath Material

    PE

    Sheath Colour

    Black/Grey

    Length

    2m

    Connector 1 Gender

    Male

    Connector 1 Number of Contacts

    8

    Connector 1 Orientation

    Straight

    Connector 1

    M12

    Connector 2

    M12

    Connector 2 Gender

    Female

    Connector 2 Housing Gender

    Female

    Connector 2 Number of Contacts

    8

    Connector 2 Orientation

    Straight

    Coding

    A

    Current Rating

    2 A

    Voltage Rating

    30 V

    IP Rating

    IP65, IP67, IP68, IP69K

    Connector 1 Housing Gender

    Male

    Insulation Material

    PE

    Fire Behaviour

    Halogen Free

    Oil Resistant

    Yes

    American Wire Gauge

    24 AWG

    Outer Diameter

    6.8mm

    Cable Shape

    Twisted Pair

    Conductor Material

    Bare Cu litz wires

    Minimum Bend Radius

    5xD (Fixed), 10xD (Flexible)
