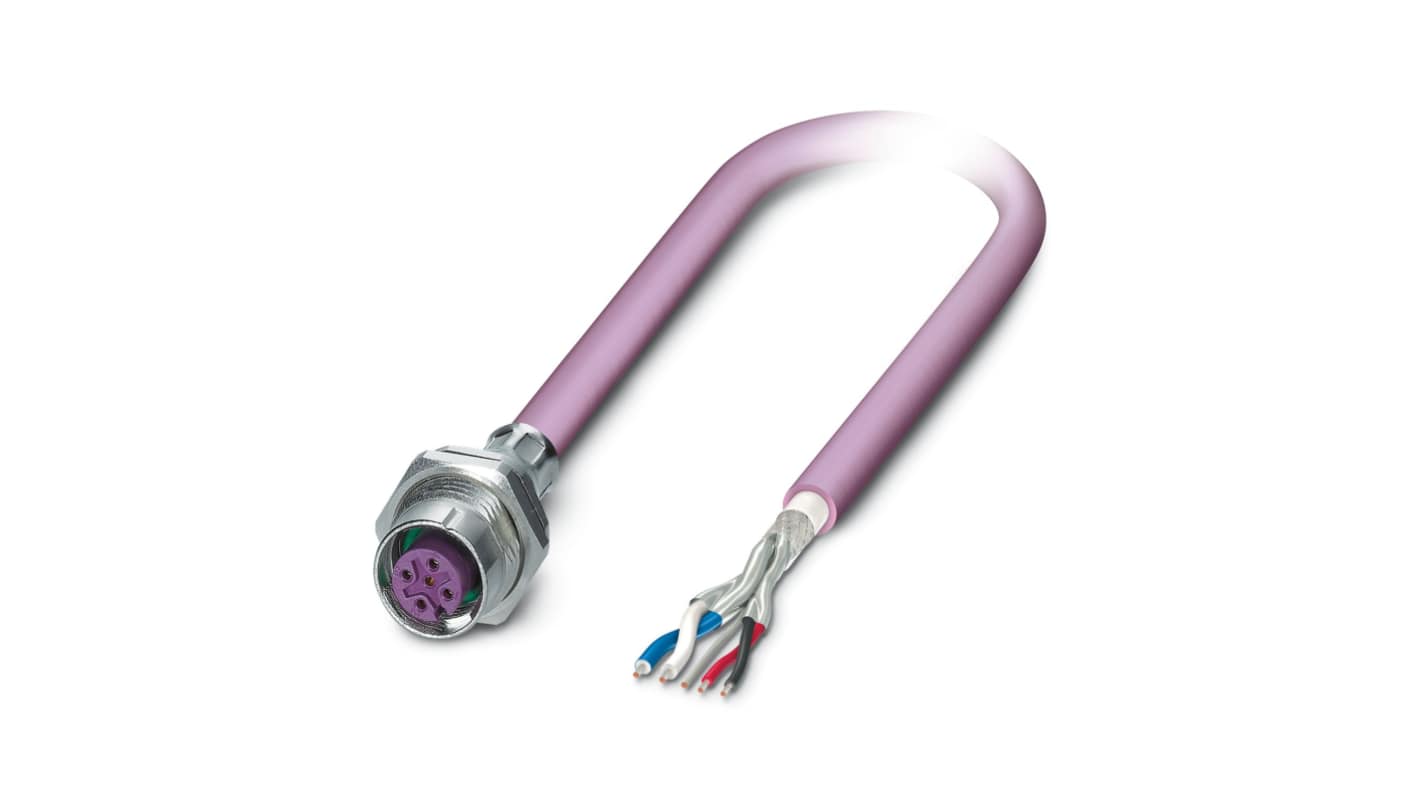

Phoenix Contact Female 5 way M12 to Bus Cable, 2m
- RS Stock No.:
- 856-5873
- Mfr. Part No.:
- 1534481
- Manufacturer:
- Phoenix Contact
Subtotal (1 unit)**
MYR236.94
3 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
---|---|
1 + | MYR236.94 |
**price indicative
- RS Stock No.:
- 856-5873
- Mfr. Part No.:
- 1534481
- Manufacturer:
- Phoenix Contact
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | SACCBP-M12FS | |
Number of Cores | 5 | |
Cross Sectional Area | 0.25 mm² | |
Sheath Material | PUR | |
Length | 2m | |
Sheath Colour | Violet | |
Connector 1 | M12 | |
Connector 1 Number of Contacts | 5 | |
Connector 1 Gender | Female | |
Mounting Type | Panel Mount | |
Current Rating | 4 A | |
Voltage Rating | 60 V | |
IP Rating | IP67 | |
Cable Shape | Twisted Pair | |
Connector 1 Housing Gender | Female | |
Insulation Material | PE | |
American Wire Gauge | 24, 22 AWG | |
Outer Diameter | 6.7mm | |
Minimum Bend Radius | 70 mm | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series SACCBP-M12FS | ||
Number of Cores 5 | ||
Cross Sectional Area 0.25 mm² | ||
Sheath Material PUR | ||
Length 2m | ||
Sheath Colour Violet | ||
Connector 1 M12 | ||
Connector 1 Number of Contacts 5 | ||
Connector 1 Gender Female | ||
Mounting Type Panel Mount | ||
Current Rating 4 A | ||
Voltage Rating 60 V | ||
IP Rating IP67 | ||
Cable Shape Twisted Pair | ||
Connector 1 Housing Gender Female | ||
Insulation Material PE | ||
American Wire Gauge 24, 22 AWG | ||
Outer Diameter 6.7mm | ||
Minimum Bend Radius 70 mm | ||
