Units	Per Unit
1 - 4	MYR825.41
5 +	MYR742.87

Select all	Attribute	Value
	Brand	Phoenix Contact
	Series	0PUR-U, RCK-TGUM/BL16+3/ 5
	Cross Sectional Area	0.5 mm², 1 mm²
	Sheath Colour	Black
	Sheath Material	Polyurethane PUR
	Length	5m
	Connector 1 Gender	Female
	Connector 1 Orientation	Straight
	Connector 1 Number of Contacts	19
	Connector 1	M23
	Shielded/Unshielded	Unshielded
	Voltage Rating	48 V ac
	IP Rating	IP65, IP67
	Minimum Bend Radius	79 mm, 105 mm
	Conductor Material	Bare Cu litz wires
	Maximum Operating Temperature	+80 °C, +90°C
	Insulation Material	PVC
	Operating Temperature Range	-5 → +80, -40 → +90
	American Wire Gauge	20 AWG
	Outer Diameter	10.50 ± 0.2mm
	Minimum Operating Temperature	-40 °C, -5°C

	Select all
	Brand Phoenix Contact
	Series 0PUR-U, RCK-TGUM/BL16+3/ 5
	Cross Sectional Area 0.5 mm², 1 mm²
	Sheath Colour Black
	Sheath Material Polyurethane PUR
	Length 5m
	Connector 1 Gender Female
	Connector 1 Orientation Straight
	Connector 1 Number of Contacts 19
	Connector 1 M23
	Shielded/Unshielded Unshielded
	Voltage Rating 48 V ac
	IP Rating IP65, IP67
	Minimum Bend Radius 79 mm, 105 mm
	Conductor Material Bare Cu litz wires
	Maximum Operating Temperature +80 °C, +90°C
	Insulation Material PVC
	Operating Temperature Range -5 → +80, -40 → +90
	American Wire Gauge 20 AWG
	Outer Diameter 10.50 ± 0.2mm
	Minimum Operating Temperature -40 °C, -5°C

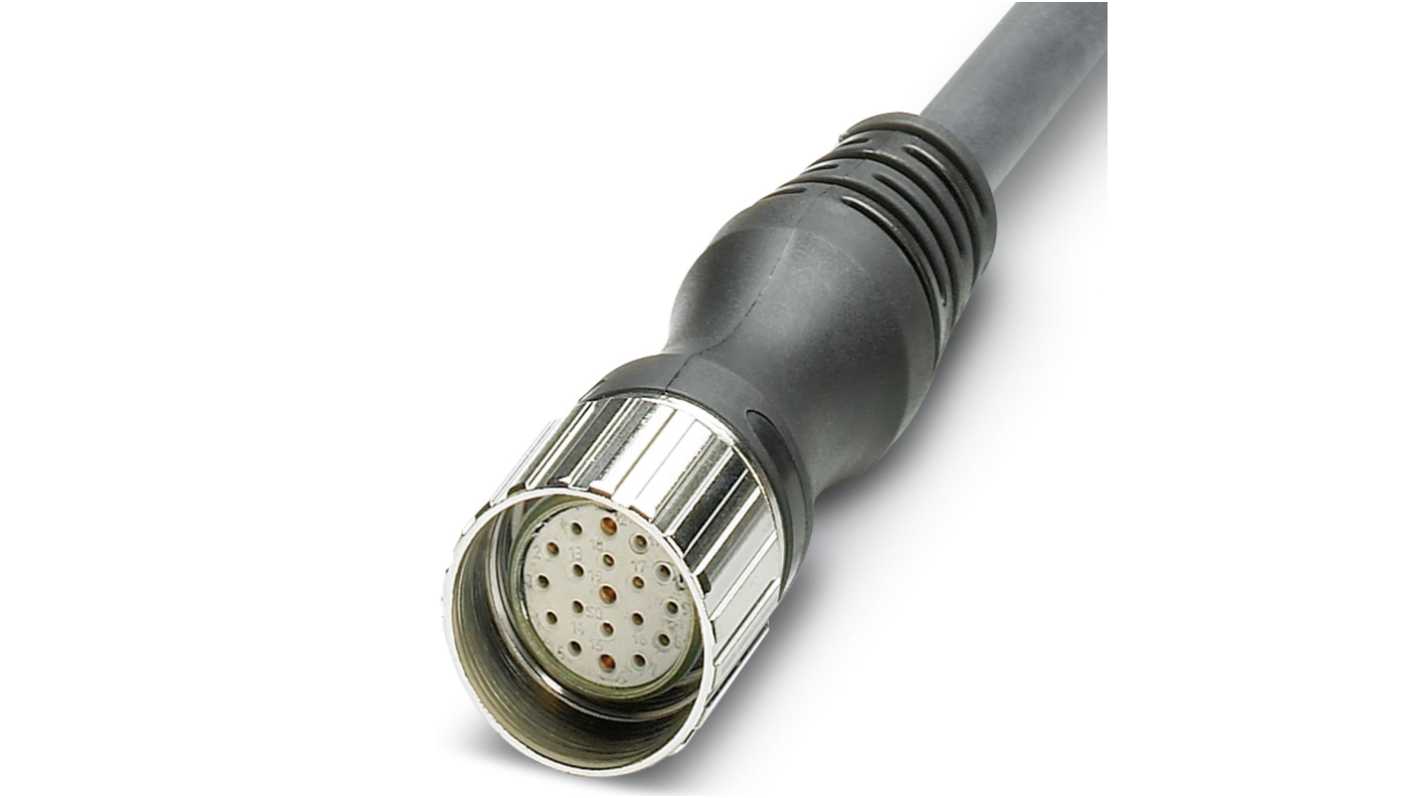

Phoenix Contact Straight Female 19 way M23 to Sensor Actuator Cable, 5m

FREE delivery for orders over MYR500.00

Phoenix Contact RCK-TGUM/BL16+3/ 5,0PUR-U Series Sensor Actuator Cable, 48VAC Voltage Rating, IP65/IP67 - 1684056

Features & Benefits

Applications

Can it be used in outdoor applications?

Will it function in low-temperature environments?

Is it suitable for flexible installations?

Can it support high voltage applications?
