Units	Per Unit
1 - 49	MYR92.59
50 - 99	MYR89.81
100 - 249	MYR87.04
250 +	MYR85.18

Select all	Attribute	Value
	Brand	Brad from Molex
	Series	Micro-Change
	Cross Sectional Area	0.34 mm²
	Number of Cores	5
	Sheath Material	PUR
	Sheath Colour	Black
	Length	5m
	Connector 1 Gender	Female
	Connector 1 Orientation	Straight
	Connector 1 Number of Contacts	5
	Connector 1	M12
	Connector 2	Unterminated
	Coding	A
	Shielded/Unshielded	Unshielded
	Current Rating	4 A
	Voltage Rating	250 V
	IP Rating	IP67
	Maximum Operating Temperature	+80°C
	Minimum Operating Temperature	-20°C
	American Wire Gauge	22 AWG
	Operating Temperature Range	-20 → +80 °C
	Connector 1 Housing Gender	Female
	Conductor Material	Copper Alloy

	Select all
	Brand Brad from Molex
	Series Micro-Change
	Cross Sectional Area 0.34 mm²
	Number of Cores 5
	Sheath Material PUR
	Sheath Colour Black
	Length 5m
	Connector 1 Gender Female
	Connector 1 Orientation Straight
	Connector 1 Number of Contacts 5
	Connector 1 M12
	Connector 2 Unterminated
	Coding A
	Shielded/Unshielded Unshielded
	Current Rating 4 A
	Voltage Rating 250 V
	IP Rating IP67
	Maximum Operating Temperature +80°C
	Minimum Operating Temperature -20°C
	American Wire Gauge 22 AWG
	Operating Temperature Range -20 → +80 °C
	Connector 1 Housing Gender Female
	Conductor Material Copper Alloy

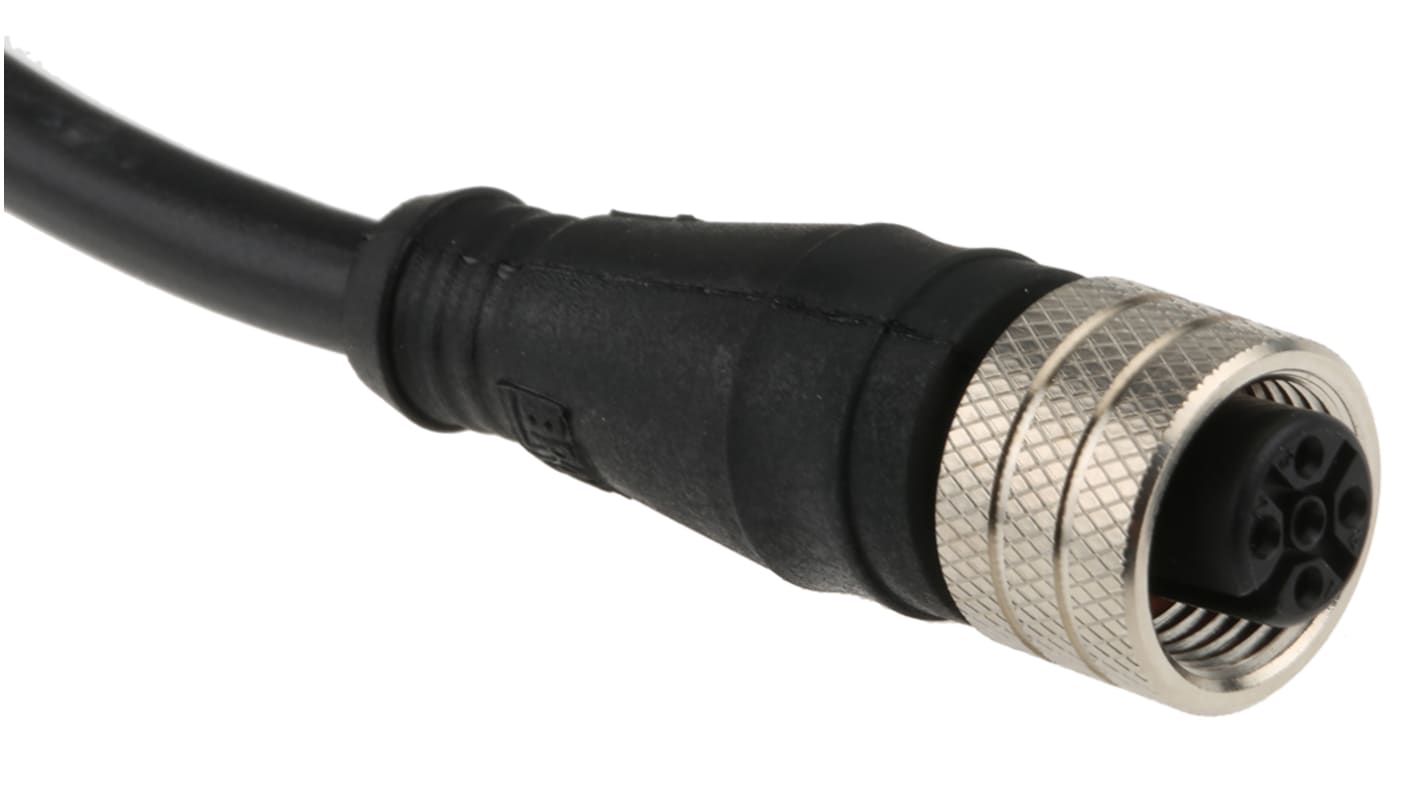

Brad from Molex Straight Female 5 way M12 to Unterminated Sensor Actuator Cable, 5m

FREE delivery for orders over MYR500.00

Brad® Micro-Change® M12 A-Code Single Ended Female Cordsets

Note

Brad from Molex Straight Female M12 to Free End Sensor Actuator Cable, 5m Length - Micro-Change Series - 1200651792

Applications

Is this cable assembly vibration-proof?

Related links
