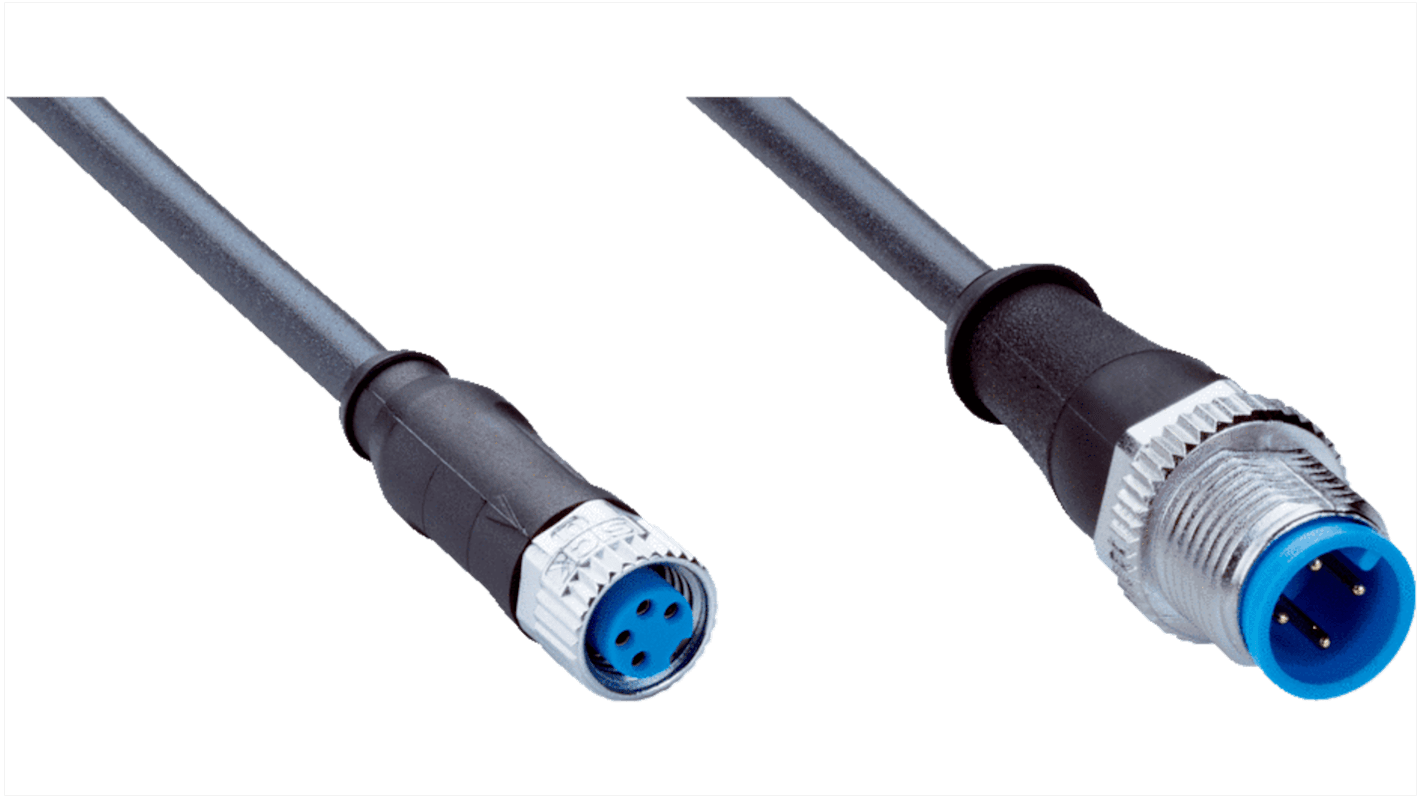

SICK Female 4 way M8, Straight to Male 4 way M12 Connector Cable, 2 m

RS Stock No.:: 285-9196
Mfr. Part No.:: YF8U14-020UA3M2A14 / 2096136
Manufacturer:: SICK

Subtotal (1 unit)*

MYR120.01

Stock information currently inaccessible - Please check back later

Units	Per Unit
1 +	MYR120.01

*price indicative

RS Stock No.:: 285-9196
Mfr. Part No.:: YF8U14-020UA3M2A14 / 2096136
Manufacturer:: SICK

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Product Type	Connector Cable
	Series	YF8U14
	Cable Length	2m
	Jacket Material	Polyurethane
	Jacket Colour	Black
	Connector Gender A	Female
	Connector Type A	M8, Straight
	Number of Contacts A	4
	Connector Gender B	Male
	Number of Contacts B	4
	Connector Type B	M12
	Voltage	60V ac/dc
	IP Rating	IP65, IP66K, IP67
	Standards/Approvals	Flame retardant according to UL 1581, Horizontal flame test/CSA FT2 / IEC 60332-1, IEC 60332-2-2, UL E335179
	Coding	A

	Select all
	Brand SICK
	Product Type Connector Cable
	Series YF8U14
	Cable Length 2m
	Jacket Material Polyurethane
	Jacket Colour Black
	Connector Gender A Female
	Connector Type A M8, Straight
	Number of Contacts A 4
	Connector Gender B Male
	Number of Contacts B 4
	Connector Type B M12
	Voltage 60V ac/dc
	IP Rating IP65, IP66K, IP67
	Standards/Approvals Flame retardant according to UL 1581, Horizontal flame test/CSA FT2 / IEC 60332-1, IEC 60332-2-2, UL E335179
	Coding A

Datasheet - YF8U14-020UA3M2A14

COO (Country of Origin):: CZ

SICK YF8U14 Series Connector Cable, 2m Cable Length, Black Jacket - YF8U14-020UA3M2A14 / 2096136

This connector cable provides a robust link between M8 and M12 devices for industrial sensor and actuator connections. It is designed for use where secure, low-voltage signal transmission is required in demanding environments, delivering a weather-resistant connection that suits automation and electrical installations.

Features and Benefits:

• Four-contact configuration supports common sensor signal requirements
• 60V AC/DC rating enables low-voltage control and signalling
• Polyurethane jacket resists abrasion for prolonged service life
• IP65 IP66K IP67 protection permits washdown and dustproof use
• Female M8 to male M12 termination simplifies field wiring
• Flame-retardant construction meets multiple test standards

Applications

• Suitable for machine Vision sensor cabling in production lines
• Ideal for fieldbus or I/O module connections on factory floors
• Used with proximity sensors in material-handling equipment
• Can be used for conveyor control and signalling installations

What electrical capacity does it support for control circuits?

It is rated to carry up to 60V AC/DC, appropriate for standard low-voltage sensor and control circuits.

How does the cable cope with exposure to cleaning procedures?

The sheath material is polyurethane and the connector interfaces meet IP65, IP66K and IP67, enabling resistance to water jets, high-pressure washdown and temporary immersion.

Which contact arrangement will I find on each end?

Both terminations provide four contacts, enabling power and up to three signal lines or alternative wiring schemes.

What connector genders are supplied for quick installation?

One end is a female M8 straight connector and the opposite end is a male M12 connector for direct mating with common industrial devices.

What safety testing has the cable undergone regarding combustion?

The cable construction conforms to flame-retardant test criteria including horizontal flame and relevant IEC/UL test standards.
