SICK Female 3 way Threaded to Male 3 way Straight M8 Connector Cable, 600 mm

RS Stock No.:: 285-1555
Mfr. Part No.:: YG8U14-C60UA3M2A14
Manufacturer:: SICK

Subtotal (1 unit)*

MYR104.03

FREE delivery for orders over RM 500.00

In Stock

14 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR104.03

*price indicative

RS Stock No.:: 285-1555
Mfr. Part No.:: YG8U14-C60UA3M2A14
Manufacturer:: SICK

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Product Type	Connector Cable
	Series	YG8U14
	Jacket Material	Polyurethane
	Jacket Colour	Black
	Cable Length	600mm
	Connector Type A	Threaded
	Number of Contacts A	3
	Connector Gender A	Female
	Number of Contacts B	3
	Connector Gender B	Male
	Connector Type B	Straight M8
	Voltage	1.5 kV
	IP Rating	IP65, IP66K, IP67
	Standards/Approvals	IEC 60332-1, UL 1581 FT2

	Select all
	Brand SICK
	Product Type Connector Cable
	Series YG8U14
	Jacket Material Polyurethane
	Jacket Colour Black
	Cable Length 600mm
	Connector Type A Threaded
	Number of Contacts A 3
	Connector Gender A Female
	Number of Contacts B 3
	Connector Gender B Male
	Connector Type B Straight M8
	Voltage 1.5 kV
	IP Rating IP65, IP66K, IP67
	Standards/Approvals IEC 60332-1, UL 1581 FT2

Datasheet - YG8U14-C60UA3M2A14

COO (Country of Origin):: CZ

Overview

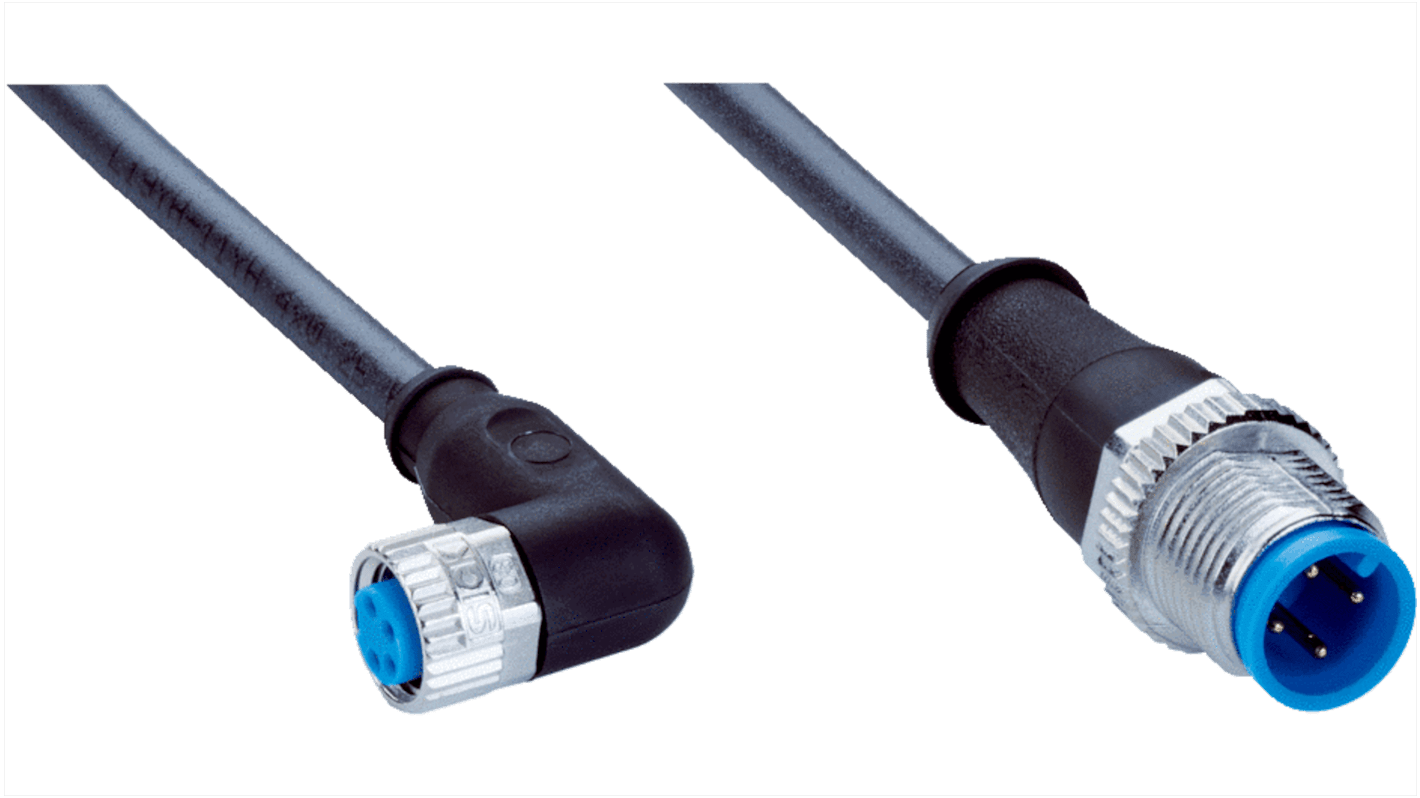

The Connection cables feature a Female M8, 4 pin, angled, A coded connector on one end and a Male M12, 4 pin, straight, A coded connector on the other, with a screw connection for secure attachment. The connectors are made of TPU in black color, incorporating zinc die cast, nickel plated locking nut, and FKM seal for robustness.

The tightening torque is 0.4 Nm for M8 and 0.6 Nm for M12, with widths across flats measuring 9 for M8 and 13 for M12. The cable is 0.6 meters long, consisting of 4 wire PUR construction that is halogen free. The jacket is made of PUR material, also halogen free, with a diameter of 4.5 mm and a conductor cross section of 0.25 mm².

At a glance

Your Benefit

Applications

Zones with oils and lubricants

Drag chain operation

Robot
