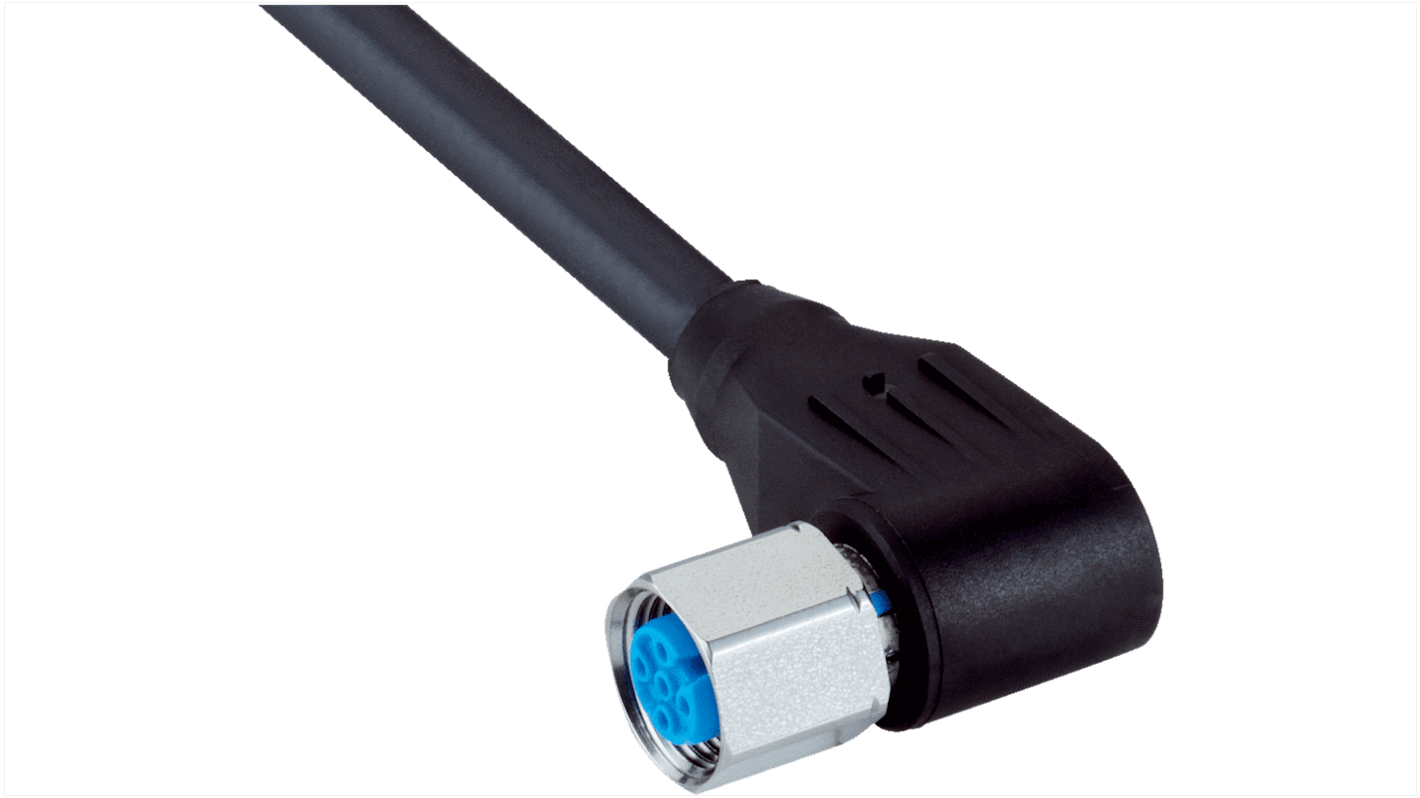

SICK Right Angle Female 4 way M12 to Connector & Cable, 10m

These connecting cables are designed for secure and versatile connectivity, featuring a female connector (M12, 4 pin, angled, A coded) on one end at Head A and Flying leads on the other end at Head B, providing flexibility for various connection configurations. The locking plug connector employs a reliable screw connection mechanism, and the connectors are constructed with durable TPU material in a sleek black color.

The locking nut is made of stainless steel (V4A/1.4404), enhancing resistance to corrosion. The FKM seal material ensures effective protection against environmental factors. With a tightening torque of 0.6 Nm and a width across flats of 13, these cables are easy to install and maintain. The 10 meter cable offers a 4 wire configuration, employing PUR (halogen free) material for enhanced durability. The black PUR jacket, with a diameter of 6.6 mm and a conductor cross section of 0.75 mm².

-

Zones with oils and lubricants
Outdoor
Seawater resistant
Cold bending resistant
