SICK Straight Female 3 way M8 to Connector & Cable, 20m

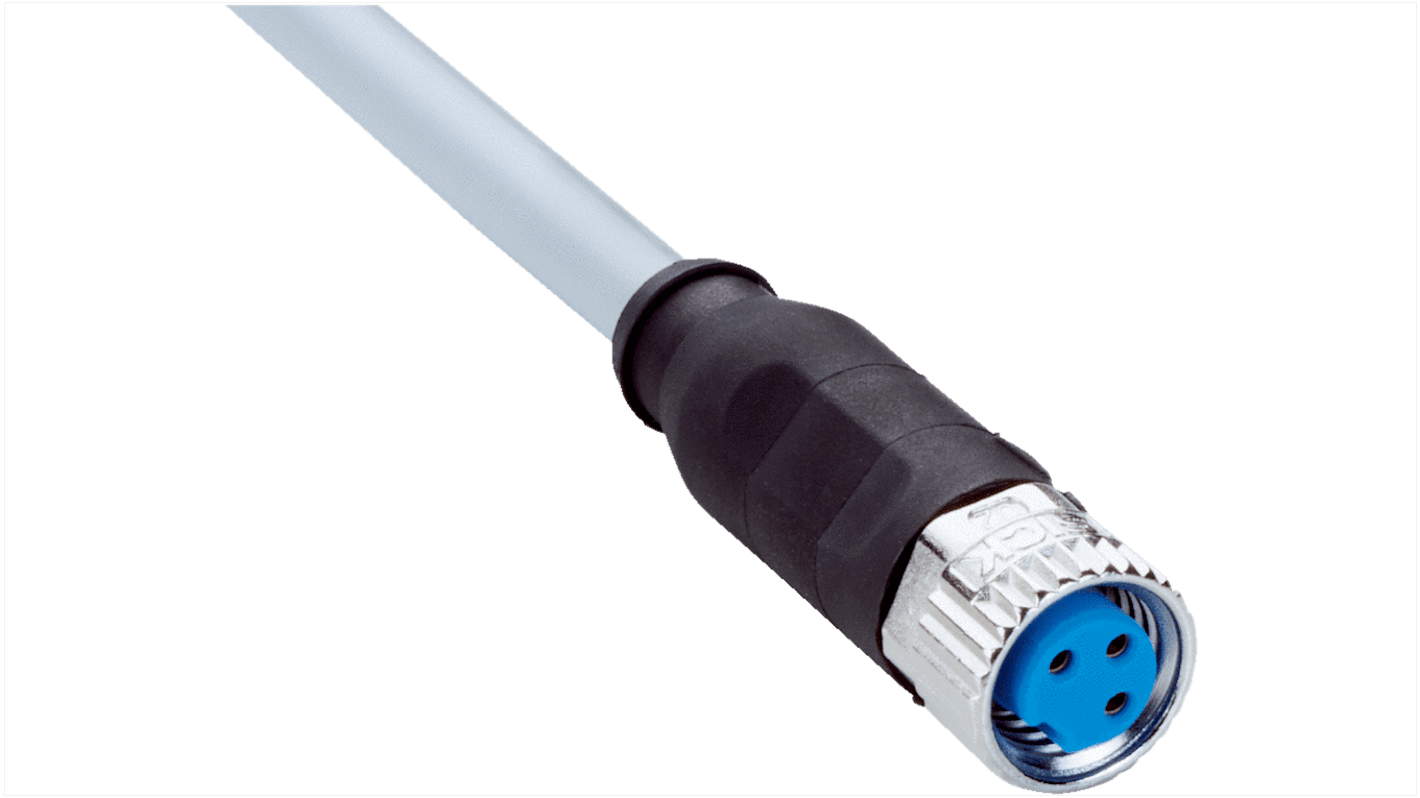

The connecting cables feature a female connector for head A with an M8, 3 pin, straight, A coded configuration, and head B comprises Flying leads. The locking plug connector employs a secure screw connection, and both connectors are made of TPU material in a sleek black color.

The locking nut is constructed from zinc die cast with nickel plating, and the seal material is FKM. The specified tightening torque is 0.4 Nm, with a width across flats measuring 9. The cable spans a length of 20 meters, comprising 3 wires with a PVC jacket in grey. The cable diameter is 4.5 mm, and the conductor cross section is 0.25 mm².

-

Zones with chemicals
