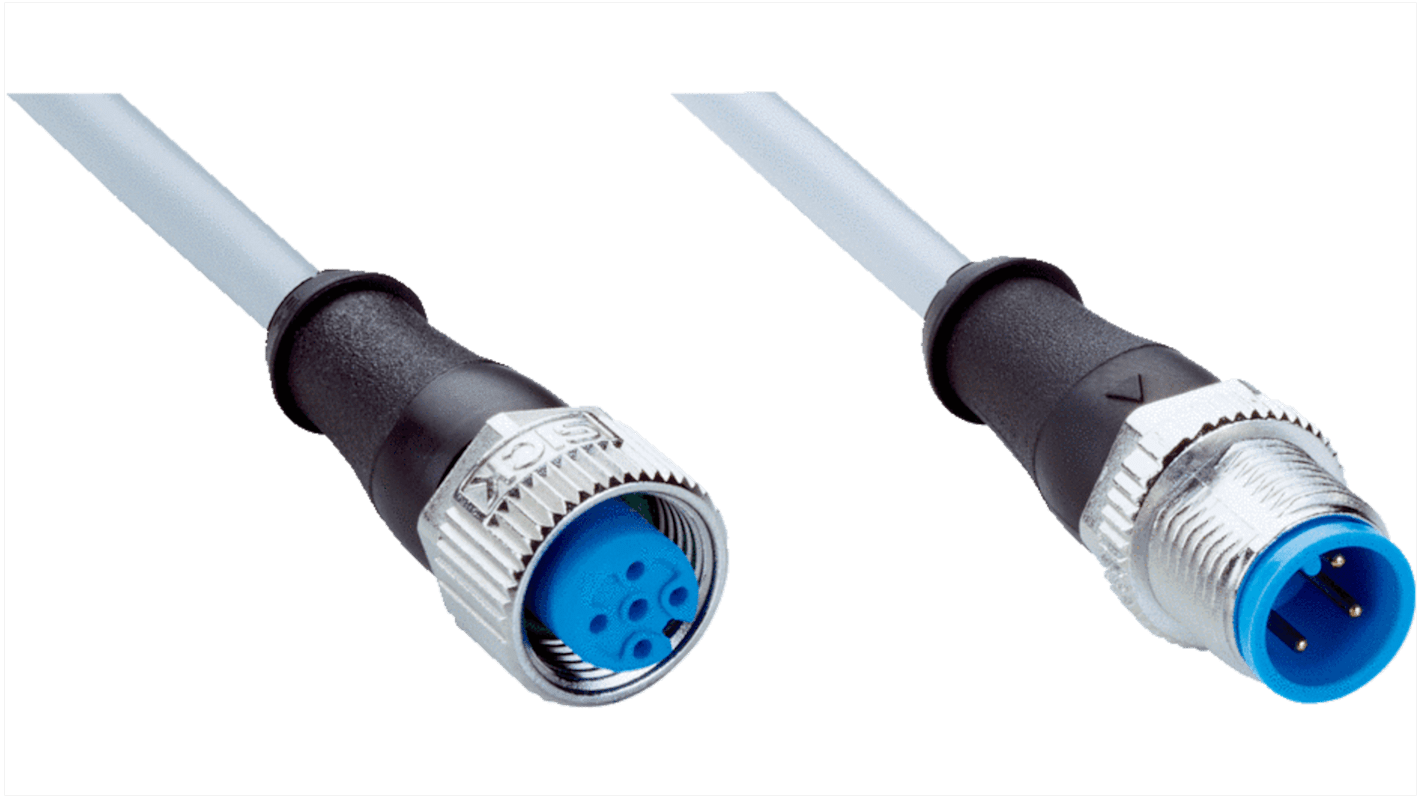

SICK Straight Female 3 way M12 to Straight Male 3 way M12 Connector & Cable, 1m

RS Stock No.:: 285-1364
Mfr. Part No.:: YF2A13-010VB1M2A13
Manufacturer:: SICK

SICK Straight Female 3 way M12 to Straight Male 3 way M12 Connector & Cable, 1m

Price Each**

MYR85.35

Temporarily out of stock - back order for despatch 04/03/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 +	MYR85.35

**price indicative

RS Stock No.:: 285-1364
Mfr. Part No.:: YF2A13-010VB1M2A13
Manufacturer:: SICK

Datasheet - YF2A13-010VB1M2A13

Attribute	Value
Series	YF2A13
Cross Sectional Area	0.34 mm²
Number of Cores	3
Length	1m
Sheath Material	Polyurethane PUR
Sheath Colour	Grey
Connector 1 Number of Contacts	3
Connector 1 Gender	Female
Connector 1 Orientation	Straight
Connector 1	M12
Connector 2 Gender	Male
Connector 2	M12
Connector 2 Orientation	Straight
Connector 2 Housing Gender	Male
Connector 2 Number of Contacts	3
Coding	A
Mounting Type	Plug-In
Shielding	Unshielded
Shielded/Unshielded	Unshielded
Current Rating	4 A
Voltage Rating	2.5 kV
IP Rating	IP65, IP66K, IP67
Standards Met	UL
Oil Resistant	Yes
Cable Shape	Round
Operating Temperature Range	-5 → 80 °C
Minimum Operating Temperature	-5°C
Fire Behaviour	Flame Retardant
Connector 1 Housing Gender	Female
Outer Diameter	4.1mm
Minimum Bend Radius	46 mm
Maximum Operating Temperature	+80°C
American Wire Gauge	22
