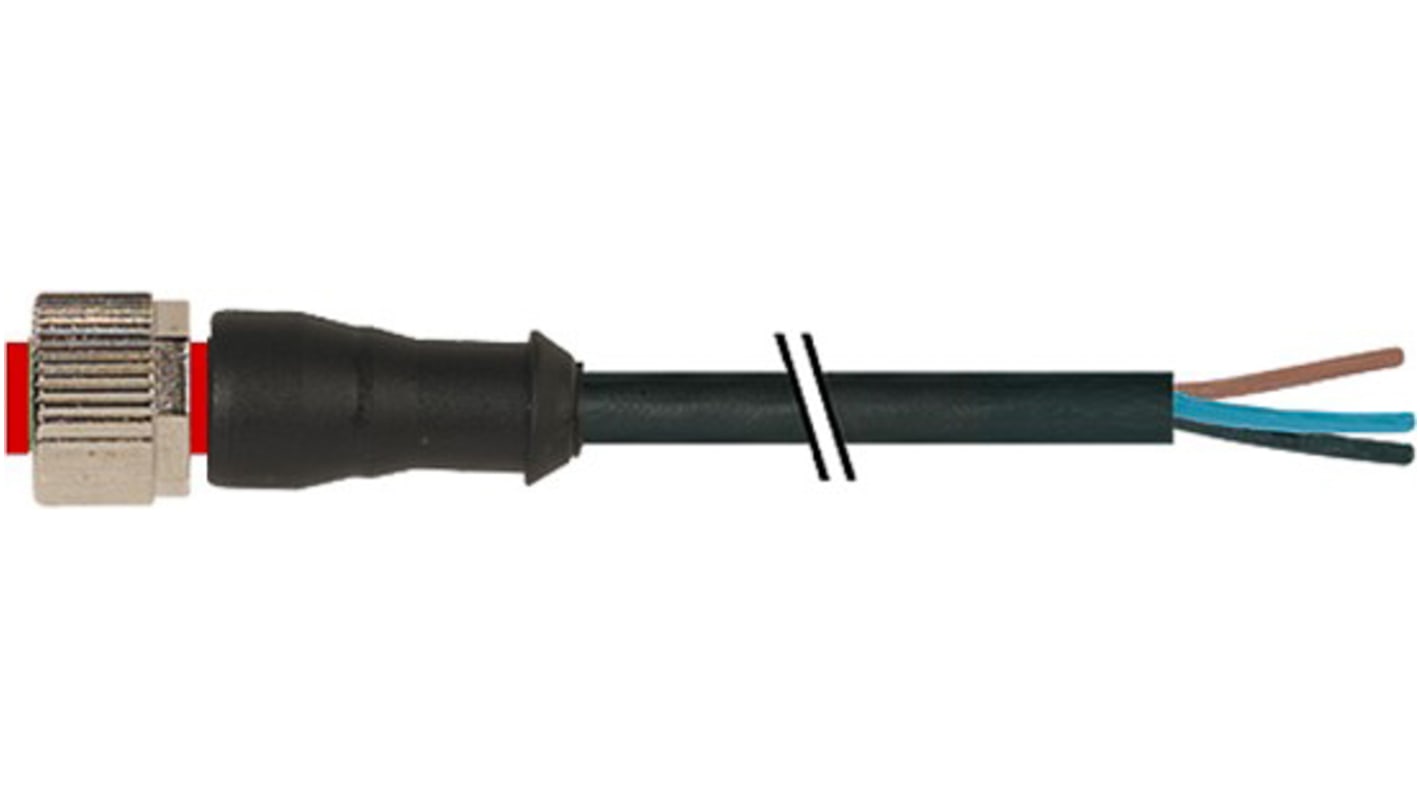

RS PRO Straight Female 4 way M12 to Unterminated Sensor Actuator Cable, 5m
- RS Stock No.:
- 174-7847
- Distrelec Article No.:
- 304-04-034
- Manufacturer:
- RS PRO
Subtotal (1 unit)**
Was MYR70.81
You pay
MYR68.29
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit |
|---|---|
| 1 - 19 | MYR68.29 |
| 20 - 49 | MYR66.84 |
| 50 - 99 | MYR64.81 |
| 100 - 499 | MYR63.23 |
| 500 + | MYR52.04 |
**price indicative
- RS Stock No.:
- 174-7847
- Distrelec Article No.:
- 304-04-034
- Manufacturer:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 0.34 mm² | |
| Number of Cores | 4 | |
| Sheath Material | PUR | |
| Length | 5m | |
| Sheath Colour | Black | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 Gender | Female | |
| Connector 1 Orientation | Straight | |
| Connector 1 | M12 | |
| Connector 2 | Unterminated | |
| Shielded/Unshielded | Unshielded | |
| Current Rating | 4 A | |
| Voltage Rating | 250 V ac/dc | |
| IP Rating | IP65, IP66K, IP67 | |
| Conductor Material | Copper | |
| Minimum Bend Radius | 10 x 15 mm | |
| Insulation Material | PVC | |
| Maximum Operating Temperature | +85°C | |
| Outer Diameter | 15mm | |
| American Wire Gauge | 22 AWG | |
| Standards Met | cLus Certified, CSA, cULus, DIN VDE 0298-4, EN 60529, IEC 60664-1, UL | |
| Operating Temperature Range | -25 → +85 °C | |
| Cable Shape | Round | |
| Connector 1 Housing Gender | Female | |
| Minimum Operating Temperature | -25°C | |
| Oil Resistant | Yes | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 4 | ||
Sheath Material PUR | ||
Length 5m | ||
Sheath Colour Black | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 Gender Female | ||
Connector 1 Orientation Straight | ||
Connector 1 M12 | ||
Connector 2 Unterminated | ||
Shielded/Unshielded Unshielded | ||
Current Rating 4 A | ||
Voltage Rating 250 V ac/dc | ||
IP Rating IP65, IP66K, IP67 | ||
Conductor Material Copper | ||
Minimum Bend Radius 10 x 15 mm | ||
Insulation Material PVC | ||
Maximum Operating Temperature +85°C | ||
Outer Diameter 15mm | ||
American Wire Gauge 22 AWG | ||
Standards Met cLus Certified, CSA, cULus, DIN VDE 0298-4, EN 60529, IEC 60664-1, UL | ||
Operating Temperature Range -25 → +85 °C | ||
Cable Shape Round | ||
Connector 1 Housing Gender Female | ||
Minimum Operating Temperature -25°C | ||
Oil Resistant Yes | ||
