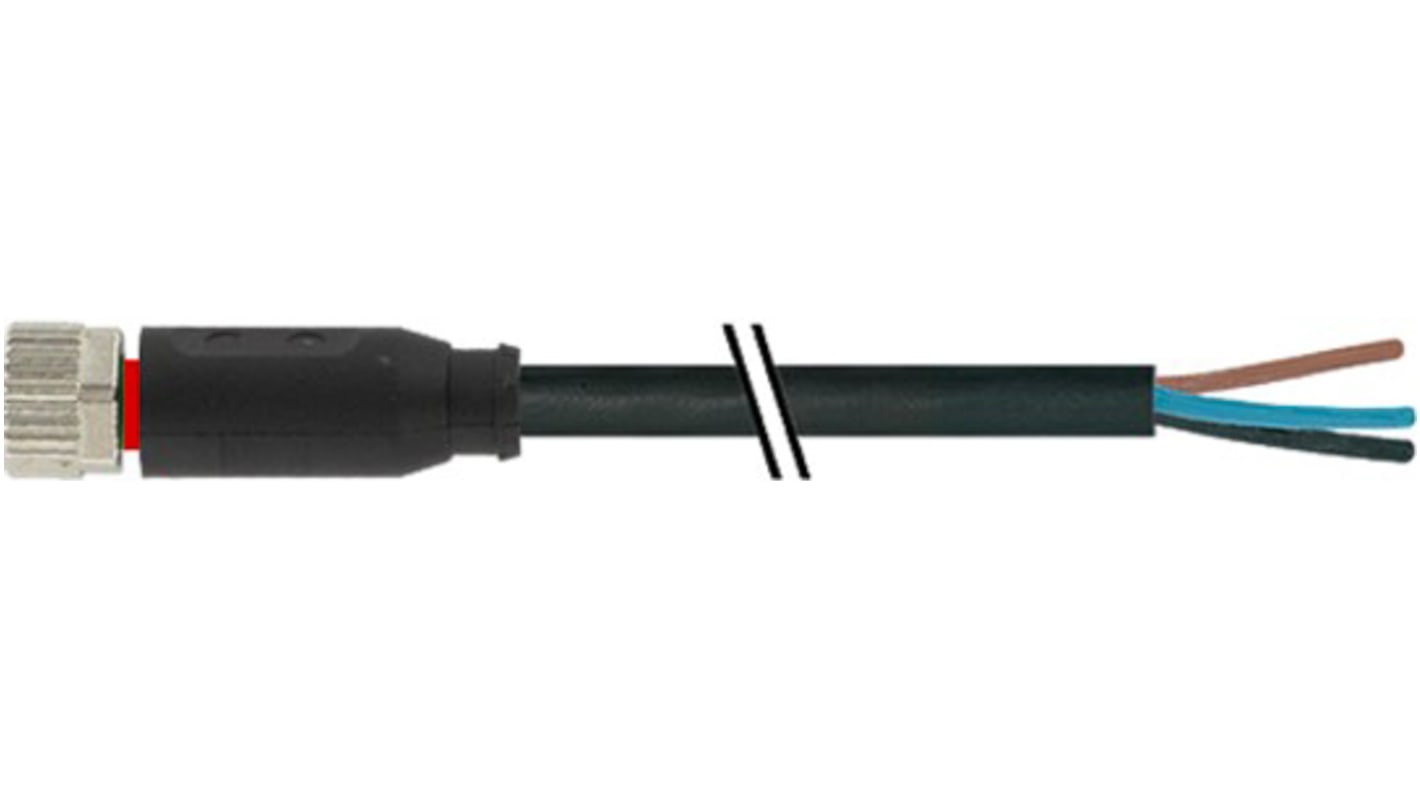

    RS PRO Straight Female 3 way M8 to Unterminated Sensor Actuator Cable, 2m

    View this category
    Bulk discount available

    Subtotal (1 unit)**

    MYR82.33

    Add to Basket
    Select or type quantity
    66 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
    20 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Units
    Per Unit
    1 - 19MYR82.33
    20 - 49MYR80.59
    50 - 99MYR78.19
    100 +MYR76.26

    **price indicative

    RS Stock No.:
    174-7835
    Distrelec Article No.:
    304-02-734
    Manufacturer:
    RS PRO
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    RS PRO

    Cross Sectional Area

    0.25 mm²

    Number of Cores

    3

    Sheath Material

    PUR

    Sheath Colour

    Black

    Length

    2m

    Connector 1 Gender

    Female

    Connector 1 Orientation

    Straight

    Connector 1 Number of Contacts

    3

    Connector 1

    M8

    Connector 2

    Unterminated

    Shielded/Unshielded

    Unshielded

    Voltage Rating

    30 V ac/dc, 50 V ac, 60 V dc

    Current Rating

    4 A

    IP Rating

    IP65, IP66K, IP67

    Maximum Operating Temperature

    +85°C

    Conductor Material

    Copper

    Operating Temperature Range

    -25 → +85 °C

    Minimum Operating Temperature

    -25°C

    Oil Resistant

    Yes

    Standards Met

    cLus Certified, CSA, cULus, DIN VDE 0298-4, EN 60529, IEC 60664-1, UL

    Outer Diameter

    10mm

    American Wire Gauge

    24 AWG

    Connector 1 Housing Gender

    Female

    Cable Shape

    Round

    Insulation Material

    PVC

    Minimum Bend Radius

    10 x 10 mm
