Units	Per Unit
1 - 4	MYR46.56
5 - 24	MYR45.77
25 - 49	MYR44.61
50 - 249	MYR42.62
250 +	MYR35.08

Select all	Attribute	Value
	Brand	RS PRO
	Cross Sectional Area	0.25 mm²
	Number of Cores	4
	Length	2m
	Sheath Colour	Black
	Sheath Material	PUR
	Connector 1 Orientation	Right Angle
	Connector 1	M12
	Connector 1 Number of Contacts	4
	Connector 1 Gender	Male
	Connector 2	Unterminated
	Coding	B
	Shielded/Unshielded	Unshielded
	Voltage Rating	250 V
	Current Rating	4 A
	IP Rating	IP67
	Maximum Operating Temperature	+75°C
	Conductor Material	CuZn
	Cable Shape	Multicore
	Connector 1 Housing Gender	Male
	American Wire Gauge	24 AWG
	Minimum Operating Temperature	-25°C
	Outer Diameter	4.8mm
	Operating Temperature Range	-25 → +75 °C

	Select all
	Brand RS PRO
	Cross Sectional Area 0.25 mm²
	Number of Cores 4
	Length 2m
	Sheath Colour Black
	Sheath Material PUR
	Connector 1 Orientation Right Angle
	Connector 1 M12
	Connector 1 Number of Contacts 4
	Connector 1 Gender Male
	Connector 2 Unterminated
	Coding B
	Shielded/Unshielded Unshielded
	Voltage Rating 250 V
	Current Rating 4 A
	IP Rating IP67
	Maximum Operating Temperature +75°C
	Conductor Material CuZn
	Cable Shape Multicore
	Connector 1 Housing Gender Male
	American Wire Gauge 24 AWG
	Minimum Operating Temperature -25°C
	Outer Diameter 4.8mm
	Operating Temperature Range -25 → +75 °C

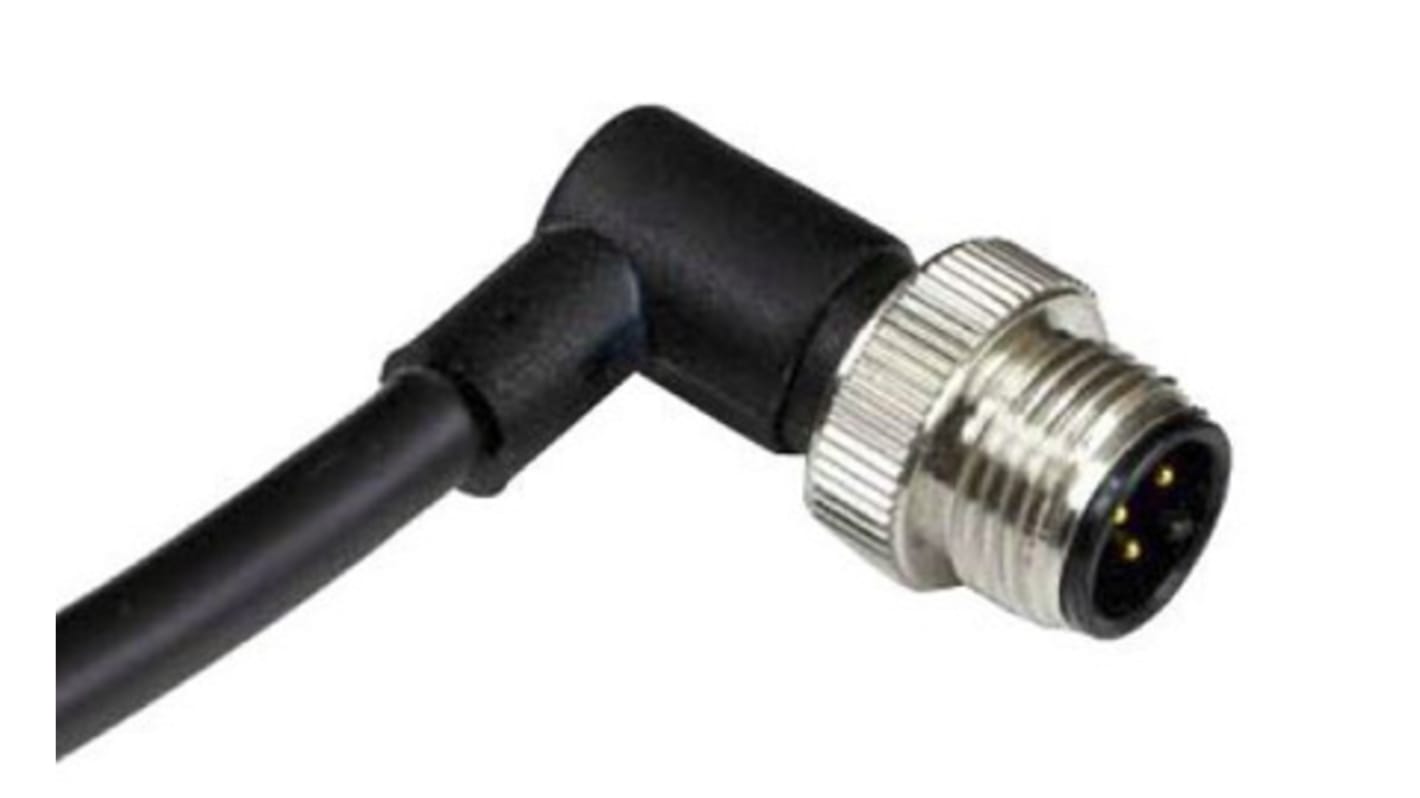

RS PRO Right Angle Male 4 way M12 to Unterminated Sensor Actuator Cable, 2m

FREE delivery for orders over MYR500.00

M12 Connector Male Angled
