Select all	Attribute	Value
	Brand	HARTING
	Series	M12
	Cross Sectional Area	0.14 mm²
	Number of Cores	12
	Sheath Material	PUR
	Length	2m
	Sheath Colour	Grey
	Connector 1 Number of Contacts	12
	Connector 1 Gender	Male
	Connector 1 Orientation	Straight
	Connector 1	M12
	Connector 2	Unterminated
	Coding	A
	Shielded/Unshielded	Unshielded
	IP Rating	IP67
	Minimum Operating Temperature	-30°C
	Outer Diameter	6.2mm
	Connector 1 Housing Gender	Male
	Operating Temperature Range	-30 → +80 °C
	American Wire Gauge	26 AWG
	Cable Shape	Multicore
	Maximum Operating Temperature	+80°C

	Select all
	Brand HARTING
	Series M12
	Cross Sectional Area 0.14 mm²
	Number of Cores 12
	Sheath Material PUR
	Length 2m
	Sheath Colour Grey
	Connector 1 Number of Contacts 12
	Connector 1 Gender Male
	Connector 1 Orientation Straight
	Connector 1 M12
	Connector 2 Unterminated
	Coding A
	Shielded/Unshielded Unshielded
	IP Rating IP67
	Minimum Operating Temperature -30°C
	Outer Diameter 6.2mm
	Connector 1 Housing Gender Male
	Operating Temperature Range -30 → +80 °C
	American Wire Gauge 26 AWG
	Cable Shape Multicore
	Maximum Operating Temperature +80°C

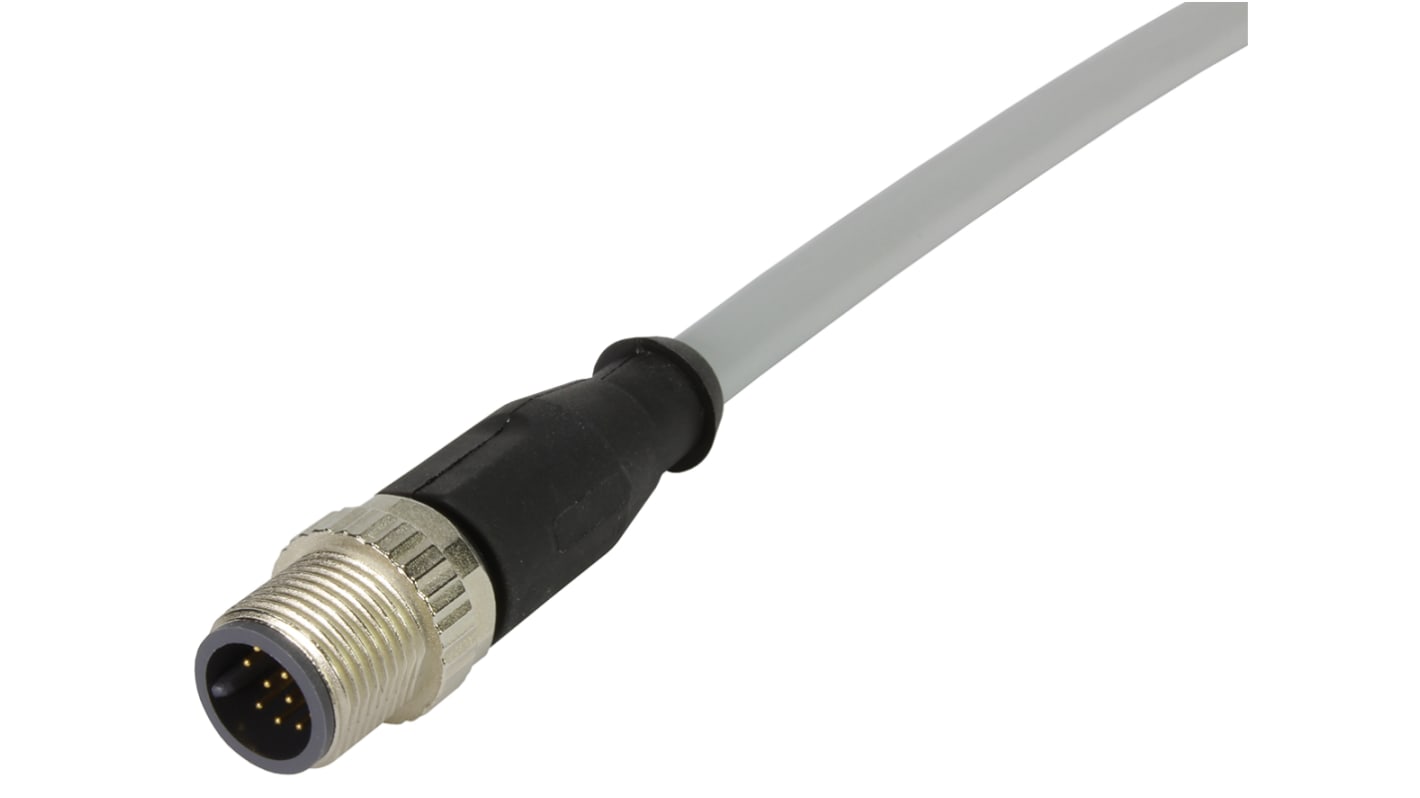

HARTING Straight Male 12 way M12 to Unterminated Sensor Actuator Cable, 2m

FREE delivery for orders over MYR500.00

M12 A-Coded Single Ended Connector Cordsets
