IXYS 1800 V 60 A Diode Fast Recovery 4-Pin SOT-227 DH2X61-18A
- RS Stock No.:
- 146-7412
- Mfr. Part No.:
- DH2X61-18A
- Manufacturer:
- IXYS

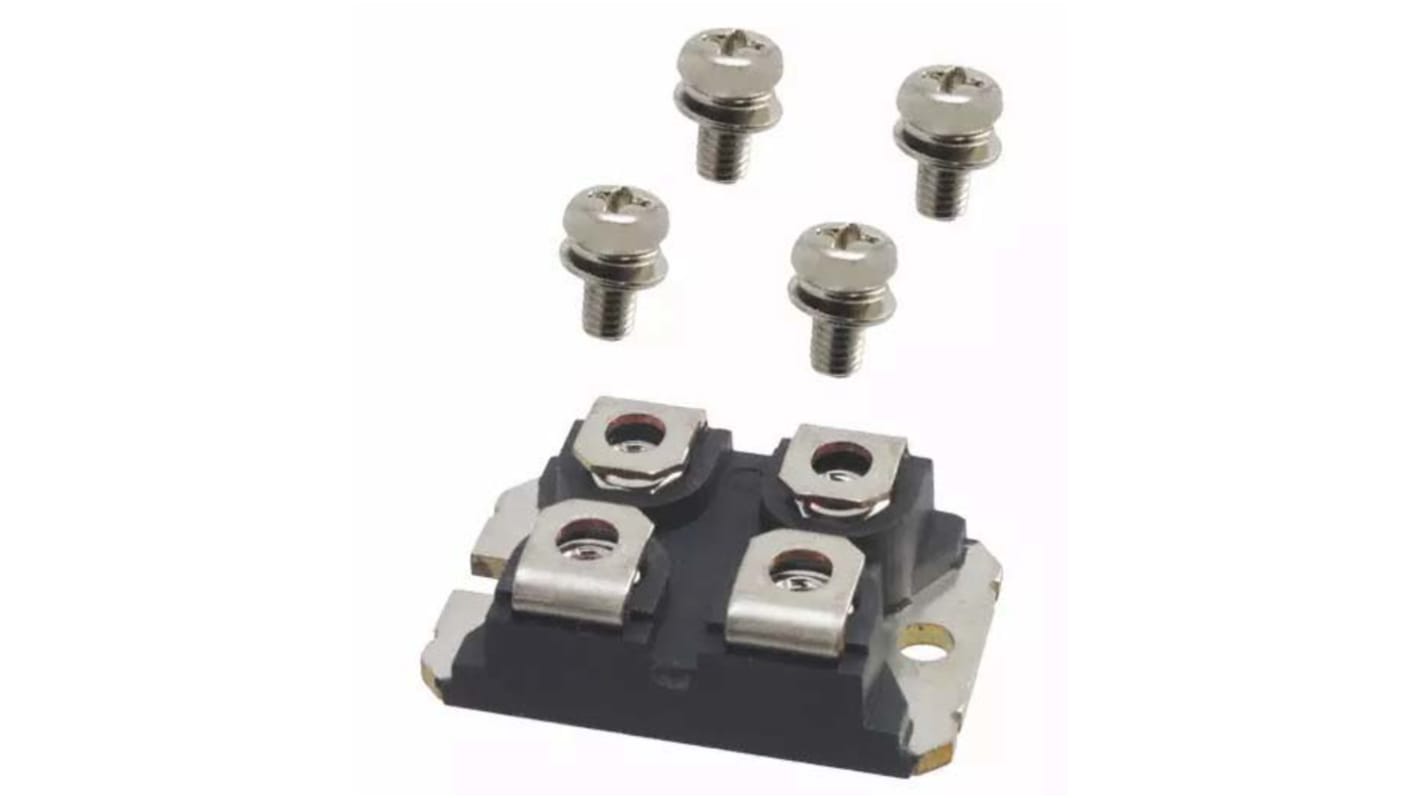

This image is representative of the product range
Bulk discount available
Subtotal (1 tube of 10 units)*
MYR1,854.83
FREE delivery for orders over RM 500.00
In Stock
- 60 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Tube* |
|---|---|---|
| 10 - 10 | MYR185.483 | MYR1,854.83 |
| 20 - 30 | MYR182.627 | MYR1,826.27 |
| 40 + | MYR179.066 | MYR1,790.66 |
*price indicative
- RS Stock No.:
- 146-7412
- Mfr. Part No.:
- DH2X61-18A
- Manufacturer:
- IXYS
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | IXYS | |
| Product Type | Diode | |
| Mount Type | Surface | |
| Package Type | SOT-227 | |
| Maximum Continuous Forward Current If | 60A | |
| Peak Reverse Repetitive Voltage Vrrm | 1800V | |
| Diode Configuration | 2X Common Anode Pair | |
| Rectifier Type | Fast Recovery | |
| Pin Count | 4 | |
| Peak Reverse Current Ir | 2mA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 700A | |
| Maximum Forward Voltage Vf | 2.71V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Peak Reverse Recovery Time trr | 350ns | |
| Height | 12.22mm | |
| Length | 38.23mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand IXYS | ||
Product Type Diode | ||
Mount Type Surface | ||
Package Type SOT-227 | ||
Maximum Continuous Forward Current If 60A | ||
Peak Reverse Repetitive Voltage Vrrm 1800V | ||
Diode Configuration 2X Common Anode Pair | ||
Rectifier Type Fast Recovery | ||
Pin Count 4 | ||
Peak Reverse Current Ir 2mA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 700A | ||
Maximum Forward Voltage Vf 2.71V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Peak Reverse Recovery Time trr 350ns | ||
Height 12.22mm | ||
Length 38.23mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Planar passivated chips
Very low leakage current
Very short recovery time
Improved thermal behaviour
Very low Irm-values
Very soft recovery behaviour
Avalanche voltage rated for reliable operation
Soft reverse recovery for low EMI/RFI
Low Irm reduces Power dissipation within the diode, Turn-on loss in the commutating switch
