JST, R Uninsulated Ring Terminal, 6 mm Stud Size 4 AWG 4 AWG Wire Size, Grey
- RS Stock No.:
- 838-8345
- Mfr. Part No.:
- 22-6
- Manufacturer:
- JST

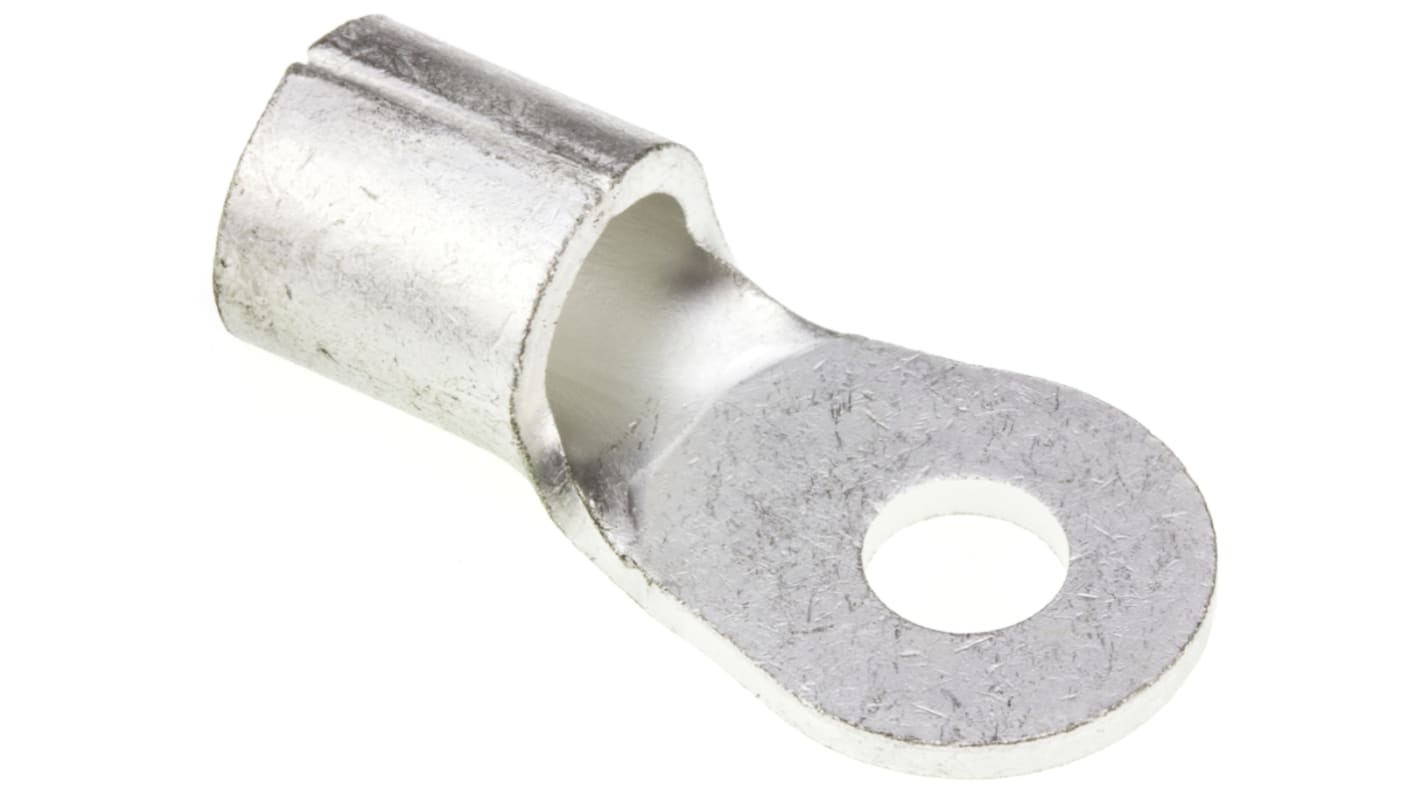

This image is representative of the product range
Subtotal (1 pack of 10 units)*
MYR51.22
FREE delivery for orders over RM 500.00
In Stock
- Plus 110 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 10 + | MYR5.122 | MYR51.22 |
*price indicative
- RS Stock No.:
- 838-8345
- Mfr. Part No.:
- 22-6
- Manufacturer:
- JST
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Product Type | Ring Terminal | |
| Series | R | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 6.4mm | |
| Outer Ring Diameter | 16.5mm | |
| Minimum Wire Size AWG | 4AWG | |
| Maximum Wire Size AWG | 4AWG | |
| Overall Length | 33.7mm | |
| Stud Size | 6 mm | |
| Colour | Grey | |
| Thickness | 1.8mm | |
| Standards/Approvals | UL E42024, CSA LR20812, RoHS | |
| Maximum Wire Size mm² | 26.66mm² | |
| Minimum Wire Size mm² | 16.78mm² | |
| Select all | ||
|---|---|---|
Brand JST | ||
Product Type Ring Terminal | ||
Series R | ||
Insulation Uninsulated | ||
Inner Ring Diameter 6.4mm | ||
Outer Ring Diameter 16.5mm | ||
Minimum Wire Size AWG 4AWG | ||
Maximum Wire Size AWG 4AWG | ||
Overall Length 33.7mm | ||
Stud Size 6 mm | ||
Colour Grey | ||
Thickness 1.8mm | ||
Standards/Approvals UL E42024, CSA LR20812, RoHS | ||
Maximum Wire Size mm² 26.66mm² | ||
Minimum Wire Size mm² 16.78mm² | ||
Uninsulated Crimp Ring Terminals, JST
A range of uninsulated crimp ring terminals from JST to suit stud sizes from 3 to 12mm and wire sizes from 0.2 to 10.5mm² (26 to 8 AWG). The terminals have butted seams and are MADE from tin-plated oxygen-free copper.
JST Terminals
Note
JST part numbers Rxxx conform to JIS C2805
Standards
• UL Listed E42024
• CSA Certified LR20812
• CSA Certified LR20812
