JST Uninsulated Ring Terminal, 6mm Stud Size, 2mm² to 3.5mm² Wire Size
- RS Stock No.:
- 604-8187
- Mfr. Part No.:
- 3.5-6
- Manufacturer:
- JST

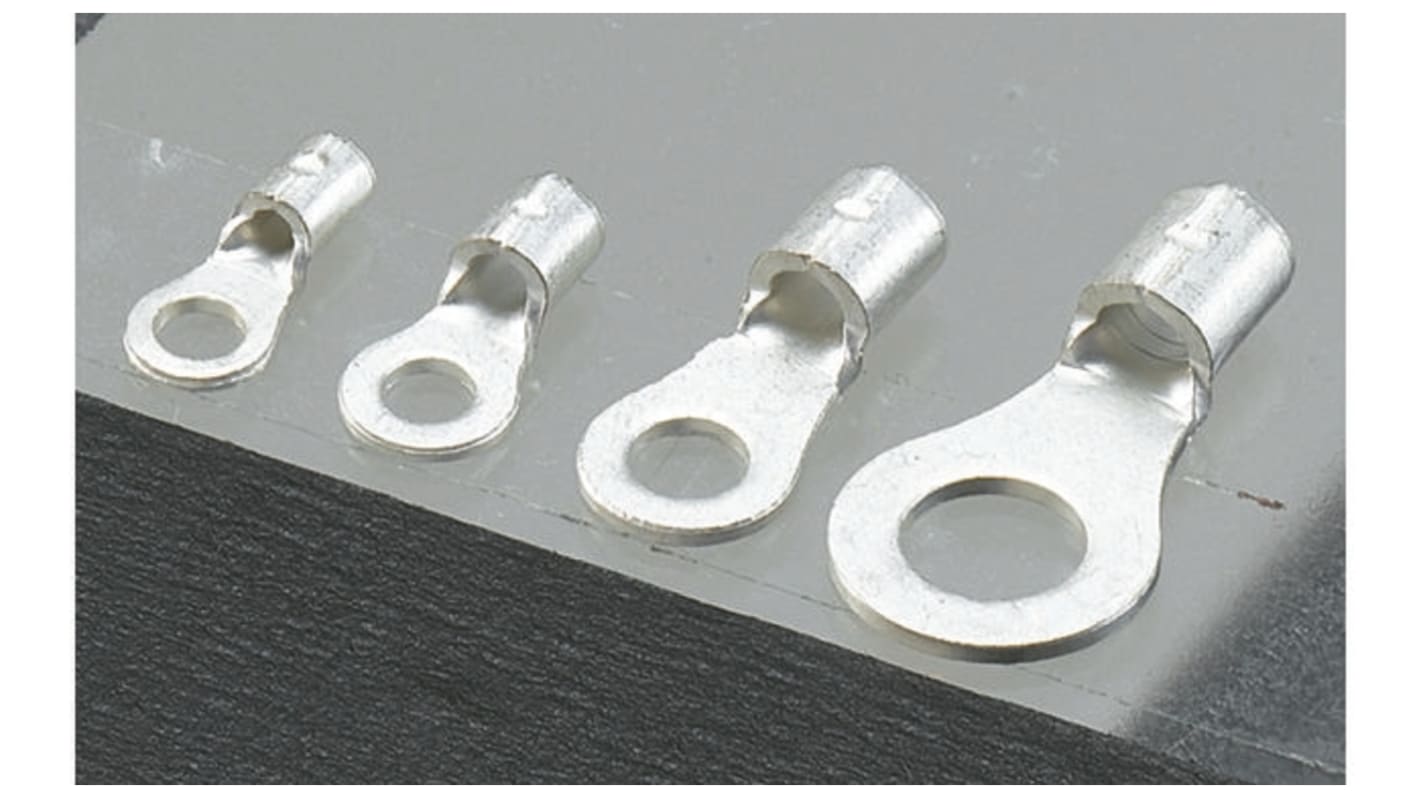

This image is representative of the product range
Bulk discount available
Subtotal (1 bag of 100 units)*
MYR104.05
FREE delivery for orders over RM 500.00
In Stock
- 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per Unit* |
|---|---|---|
| 1 - 9 | MYR104.05 | MYR1.041 |
| 10 - 24 | MYR101.86 | MYR1.019 |
| 25 - 99 | MYR98.75 | MYR0.988 |
| 100 + | MYR96.34 | MYR0.963 |
*price indicative
- RS Stock No.:
- 604-8187
- Mfr. Part No.:
- 3.5-6
- Manufacturer:
- JST
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Insulation | Uninsulated | |
| Minimum Wire Size mm² | 2mm² | |
| Maximum Wire Size mm² | 3.5mm² | |
| Minimum Wire Size AWG | 14AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Stud Size | 6mm | |
| Overall Length | 18.6mm | |
| Select all | ||
|---|---|---|
Brand JST | ||
Insulation Uninsulated | ||
Minimum Wire Size mm² 2mm² | ||
Maximum Wire Size mm² 3.5mm² | ||
Minimum Wire Size AWG 14AWG | ||
Maximum Wire Size AWG 12AWG | ||
Stud Size 6mm | ||
Overall Length 18.6mm | ||
- COO (Country of Origin):
- JP
Uninsulated Crimp Ring Terminals, JST
A range of uninsulated crimp ring terminals from JST to suit stud sizes from 3 to 12mm and wire sizes from 0.2 to 10.5mm² (26 to 8 AWG). The terminals have butted seams and are made from tin-plated oxygen-free copper.
Note
JST part numbers Rxxx conform to JIS C2805
Standards
• UL Listed E42024
• CSA Certified LR20812
• CSA Certified LR20812
