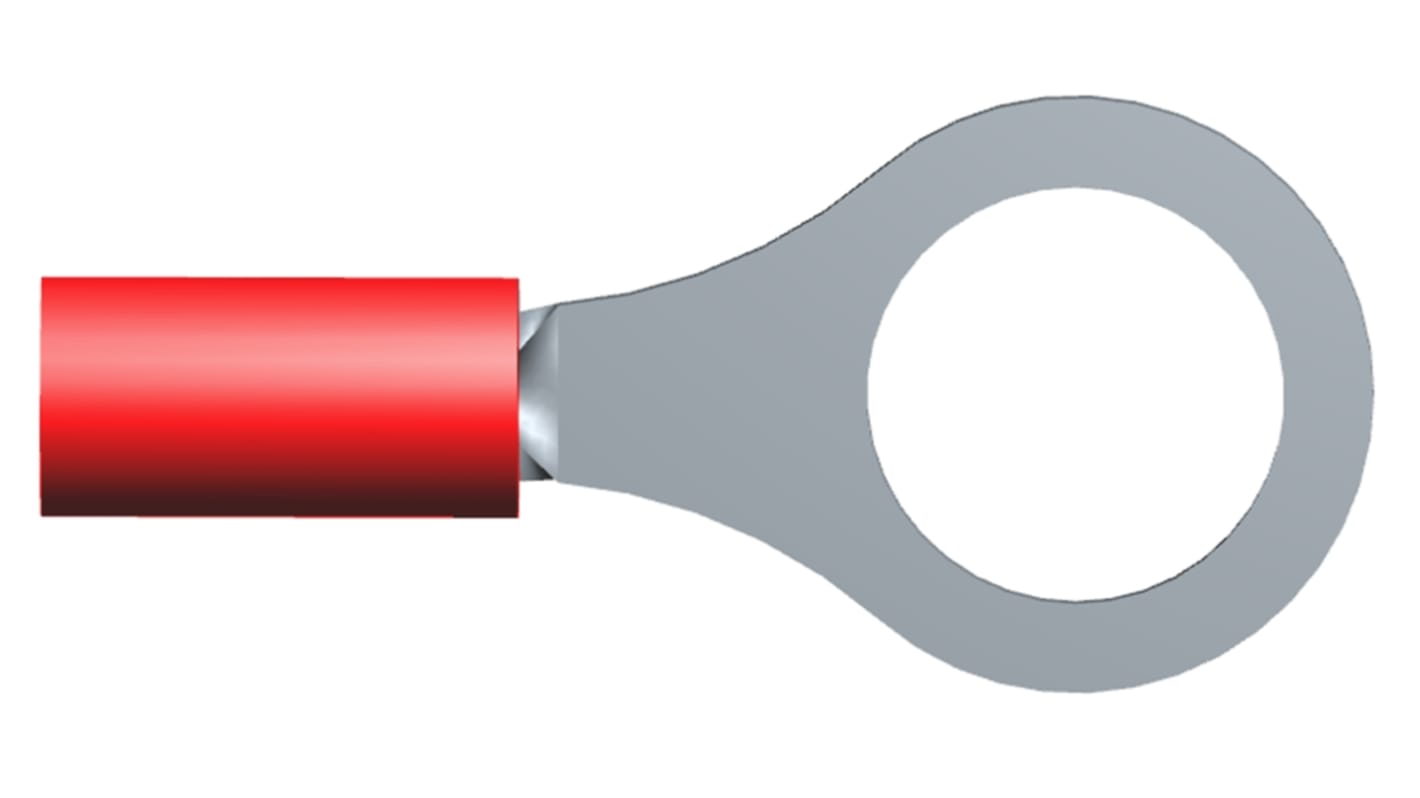

TE Connectivity, PLASTI-GRIP Insulated Ring Terminal, M8 (5/16) Stud Size, 0.26mm² to 1.65mm² Wire Size, Red
- RS Stock No.:
- 825-2158
- Mfr. Part No.:
- 8-34151-1
- Manufacturer:
- TE Connectivity
Subtotal (1 pack of 50 units)**
MYR124.25
500 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Pack** |
|---|---|---|
| 50 + | MYR2.485 | MYR124.25 |
**price indicative
- RS Stock No.:
- 825-2158
- Mfr. Part No.:
- 8-34151-1
- Manufacturer:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | PLASTI-GRIP | |
| Insulation | Insulated | |
| Insulation Material | PVC | |
| Inner Ring Diameter | 8.33mm | |
| Outer Ring Diameter | 11.91mm | |
| Maximum Wire Size mm² | 1.65mm² | |
| Minimum Wire Size mm² | 0.26mm² | |
| Maximum Wire Size AWG | 16AWG | |
| Minimum Wire Size AWG | 22AWG | |
| Stud Size | M8 (5/16) | |
| Colour | Red | |
| Contact Material | Copper | |
| Contact Plating | Tin | |
| Thickness | 0.79mm | |
| Overall Length | 27.69mm | |
