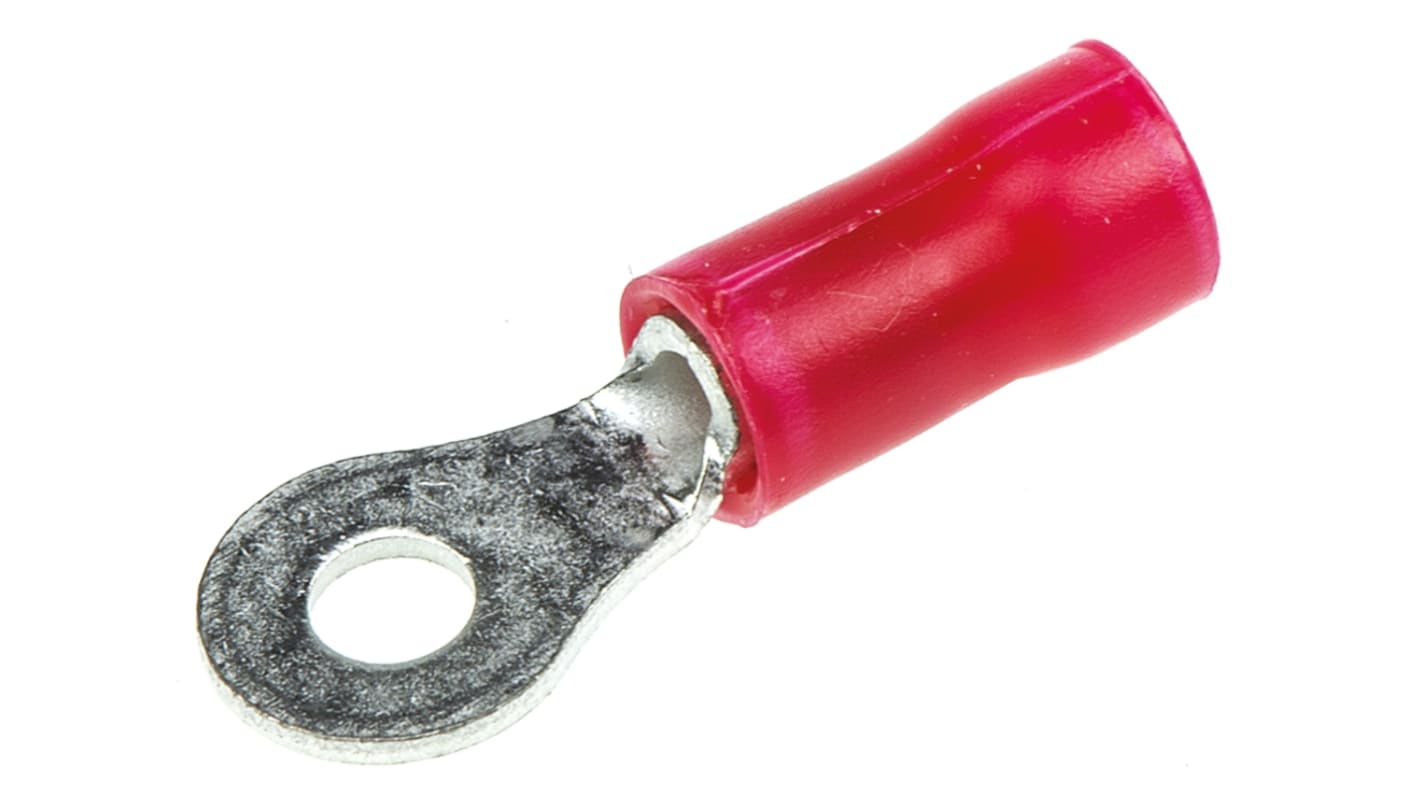

TE Connectivity, PLASTI-GRIP Insulated Ring Terminal, 2.84mm Stud Size, 0.26mm² to 1.65mm² Wire Size, Red
- RS Stock No.:
- 164-1641
- Mfr. Part No.:
- 34143
- Manufacturer:
- TE Connectivity
Bulk discount available
Subtotal (1 box of 5 units)**
MYR13.72
35 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Box** |
|---|---|---|
| 5 - 20 | MYR2.744 | MYR13.72 |
| 25 - 120 | MYR2.468 | MYR12.34 |
| 125 + | MYR2.032 | MYR10.16 |
**price indicative
- RS Stock No.:
- 164-1641
- Mfr. Part No.:
- 34143
- Manufacturer:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | PLASTI-GRIP | |
| Insulation | Insulated | |
| Insulation Material | Vinyl | |
| Outer Ring Diameter | 7.14mm | |
| Inner Ring Diameter | 3.02mm | |
| Maximum Wire Size mm² | 1.65mm² | |
| Minimum Wire Size mm² | 0.26mm² | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Stud Size | 2.84mm | |
| Colour | Red | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Thickness | 0.79mm | |
| Overall Length | 20.55mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series PLASTI-GRIP | ||
Insulation Insulated | ||
Insulation Material Vinyl | ||
Outer Ring Diameter 7.14mm | ||
Inner Ring Diameter 3.02mm | ||
Maximum Wire Size mm² 1.65mm² | ||
Minimum Wire Size mm² 0.26mm² | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 16AWG | ||
Stud Size 2.84mm | ||
Colour Red | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Thickness 0.79mm | ||
Overall Length 20.55mm | ||
