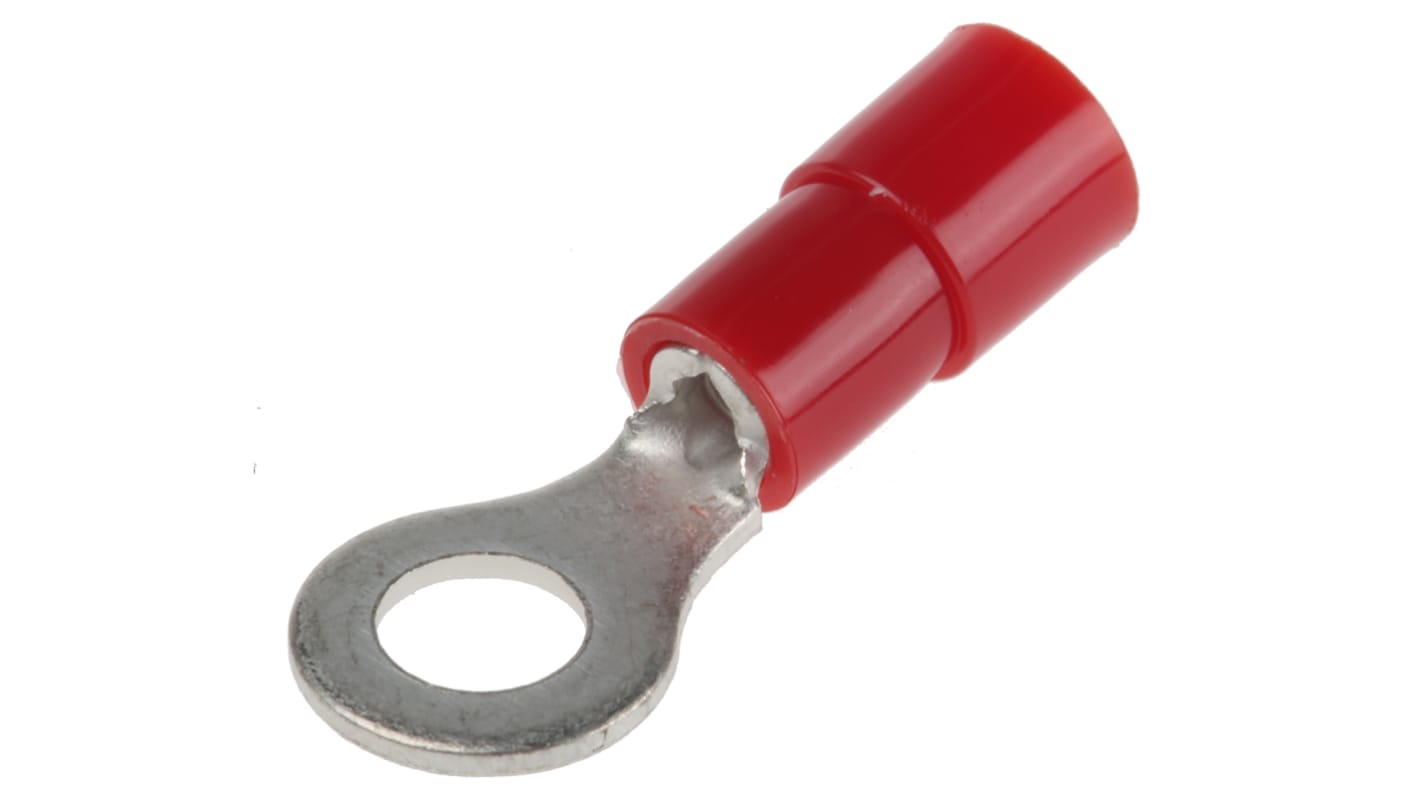

Phoenix Contact, 5/M4, C-RCI 1 Insulated Ring Terminal, M4 Stud Size, 0.5mm² to 1.5mm² Wire Size, Red

From Phoenix Contact, a high-quality insulated crimp ring terminal, also known as a ring connector or cable lug. Ring crimp terminals are used for connecting an electrical cable or wire to a stud or a post on an electrical component, such as a battery terminal. This ring terminal is made from highly conductive tin-plated copper with conically tapered plastic insulation sleeves, the tin plated sleeves facilitate maximum electrical conductivity and corrosion resistance. A colour coded vinyl insulation provides protection to the terminal and aids quick identification of the terminal size. Once correctly crimped onto a wire or cable this ring terminal will provide a secure and reliable electrical connection.

• The insulated ring cable lugs with plastic sleeve are hard-soldered
• The "EASY ENTRY" system facilitates a trustworthy and reliable conductor entry
• Tin plating for resistance to corrosion, added strength and excellent conductivity
• Conically tapered plastic for electrical insulation and terminal protection
• Colour coded insulation for easy identification of terminal size
• The colour of the crimp ring terminal is an indication of the different stud sizes. For example, yellow - M5, Red - M4 and blue is M3.5

These insulated crimp ring wire connectors are used in a wide range of industries for connecting wires to electrical components. Applications include wiring in industrial control systems and industrial machines, automotive applications, communication equipment, power supplies and domestic appliances.

When selecting the right ring terminal for your application, you should consider the following:

Firstly, select the correct sized ring terminal. Strip the end of the wire and cut it to the same length as the terminal. Insert the wire into the terminal barrel making sure no bare wire is visible. The crimp terminal is then ready to be crimped on to the end of the wire. When crimping a wire terminal, pliers or a ratchet can be used but, for a better quality crimp, it is better to use a ratchet crimping tool. A ratchet crimping tool is preferable as the handles will remain locked until a full crimp cycle is completed, which will prevent partial crimps. Insert the barrel of the ring terminal into the appropriate crimping section (indicated by sizes marked on the tool). Squeeze the tool handles together until the ratchet releases. The crimped ring terminal can now be placed over the stud or post and secured in place with a nut or by soldering.

This ring terminal facilitates efficient electrical connections with its insulated design, ensuring safety and dependability. The inner ring diameter is 4.3mm, while the outer ring diameter is 8mm, allowing for compatibility with wire sizes from 0.5 mm² to 1.5 mm². The terminal is made from high-quality copper and features a tin-plated finish for increased durability.

• Conically tapered sleeves for straightforward wire insertion
• Insulated design to prevent accidental short circuits
• Halogen-free materials for environmental safety
• Compatible with M4 threads for versatile applications
• High-temperature range for a variety of uses
• Lightweight at just 0.71g, contributing to reduced overall weight

• Secure connections in automotive
• Suitable for electrical installations in automation systems
• Commonly used in the mechanical industry
• Applicable for various machinery and equipment

Yes, it operates efficiently within -20°C to +105°C.

It accommodates wire sizes from 0.5 mm² to 1.5 mm².

It is recommended to store in a controlled environment.

Yes, it is suitable for electrical connection terminals in electronics.
