Units	Per Unit	Per Box**
50 - 200	MYR12.442	MYR622.10
250 - 1200	MYR12.18	MYR609.00
1250 - 2450	MYR11.814	MYR590.70
2500 +	MYR11.522	MYR576.10

Select all	Attribute	Value
	Brand	TE Connectivity
	Series	XCT
	Insulation	Uninsulated
	Outer Ring Diameter	9mm
	Inner Ring Diameter	5.3mm
	Maximum Wire Size mm²	4mm²
	Maximum Wire Size AWG	11AWG
	Stud Size	M5
	Contact Material	Copper
	Contact Plating	Tin
	Thickness	1mm
	Overall Length	24mm

	Select all
	Brand TE Connectivity
	Series XCT
	Insulation Uninsulated
	Outer Ring Diameter 9mm
	Inner Ring Diameter 5.3mm
	Maximum Wire Size mm² 4mm²
	Maximum Wire Size AWG 11AWG
	Stud Size M5
	Contact Material Copper
	Contact Plating Tin
	Thickness 1mm
	Overall Length 24mm

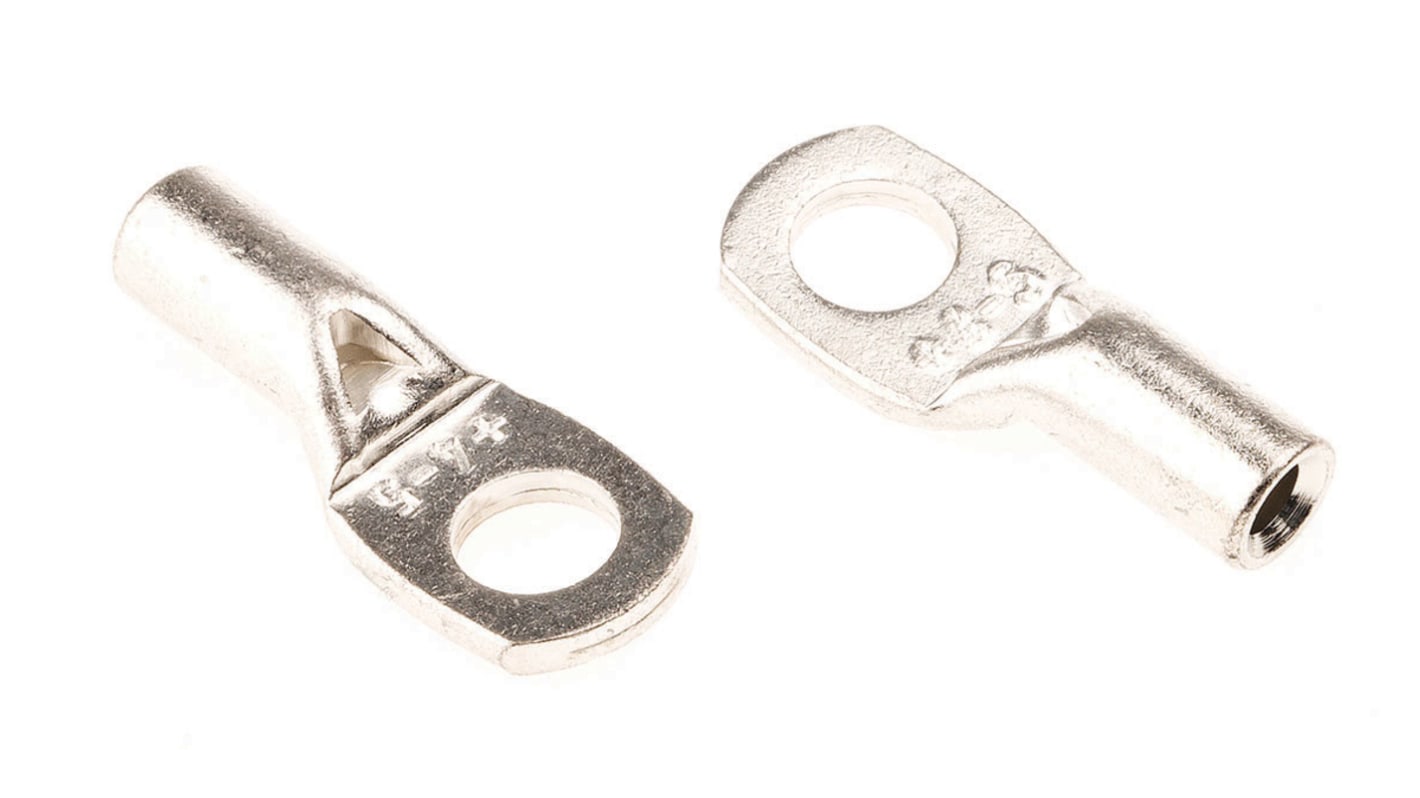

TE Connectivity, XCT Uninsulated Ring Terminal, M5 Stud Size to 4mm² Wire Size

FREE delivery for orders over MYR500.00

TE Connectivity XCT Type Tubular Ring Terminals

Features and Benefits

Standards

Related links
