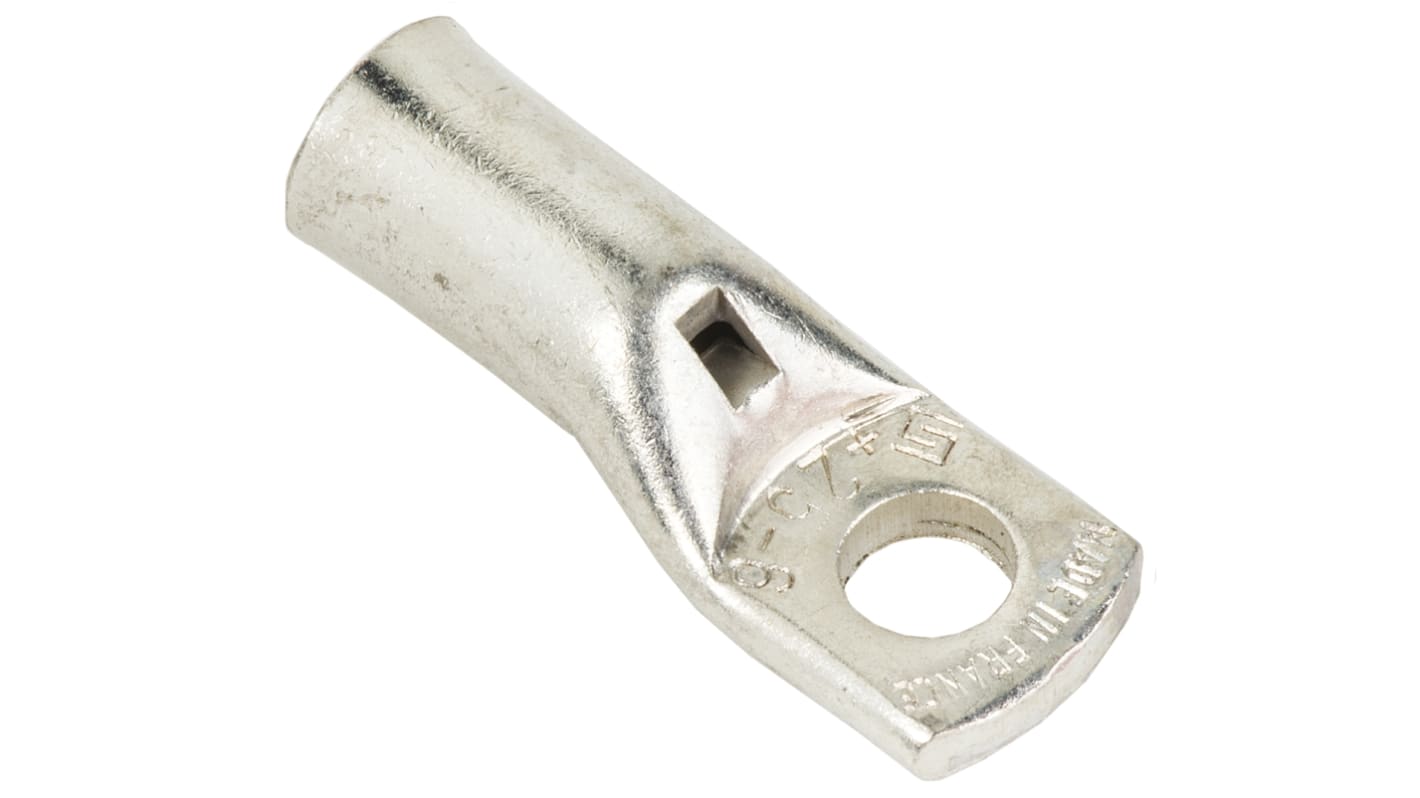

TE Connectivity, XCT Uninsulated Ring Terminal, 6mm Stud Size, 25mm² to 25mm² Wire Size
- RS Stock No.:
- 311-9911
- Mfr. Part No.:
- 710026-3
- Manufacturer:
- TE Connectivity
This image is representative of the product range
1 / 3
Subtotal (1 box of 25 units)**
MYR387.35
400 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Box** |
|---|---|---|
| 25 + | MYR15.494 | MYR387.35 |
**price indicative
- RS Stock No.:
- 311-9911
- Mfr. Part No.:
- 710026-3
- Manufacturer:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | XCT | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 6.4mm | |
| Outer Ring Diameter | 13mm | |
| Minimum Wire Size mm² | 25mm² | |
| Maximum Wire Size mm² | 25mm² | |
| Maximum Wire Size AWG | 3AWG | |
| Minimum Wire Size AWG | 3AWG | |
| Stud Size | 6mm | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Thickness | 1.2mm | |
| Overall Length | 35mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series XCT | ||
Insulation Uninsulated | ||
Inner Ring Diameter 6.4mm | ||
Outer Ring Diameter 13mm | ||
Minimum Wire Size mm² 25mm² | ||
Maximum Wire Size mm² 25mm² | ||
Maximum Wire Size AWG 3AWG | ||
Minimum Wire Size AWG 3AWG | ||
Stud Size 6mm | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Thickness 1.2mm | ||
Overall Length 35mm | ||
