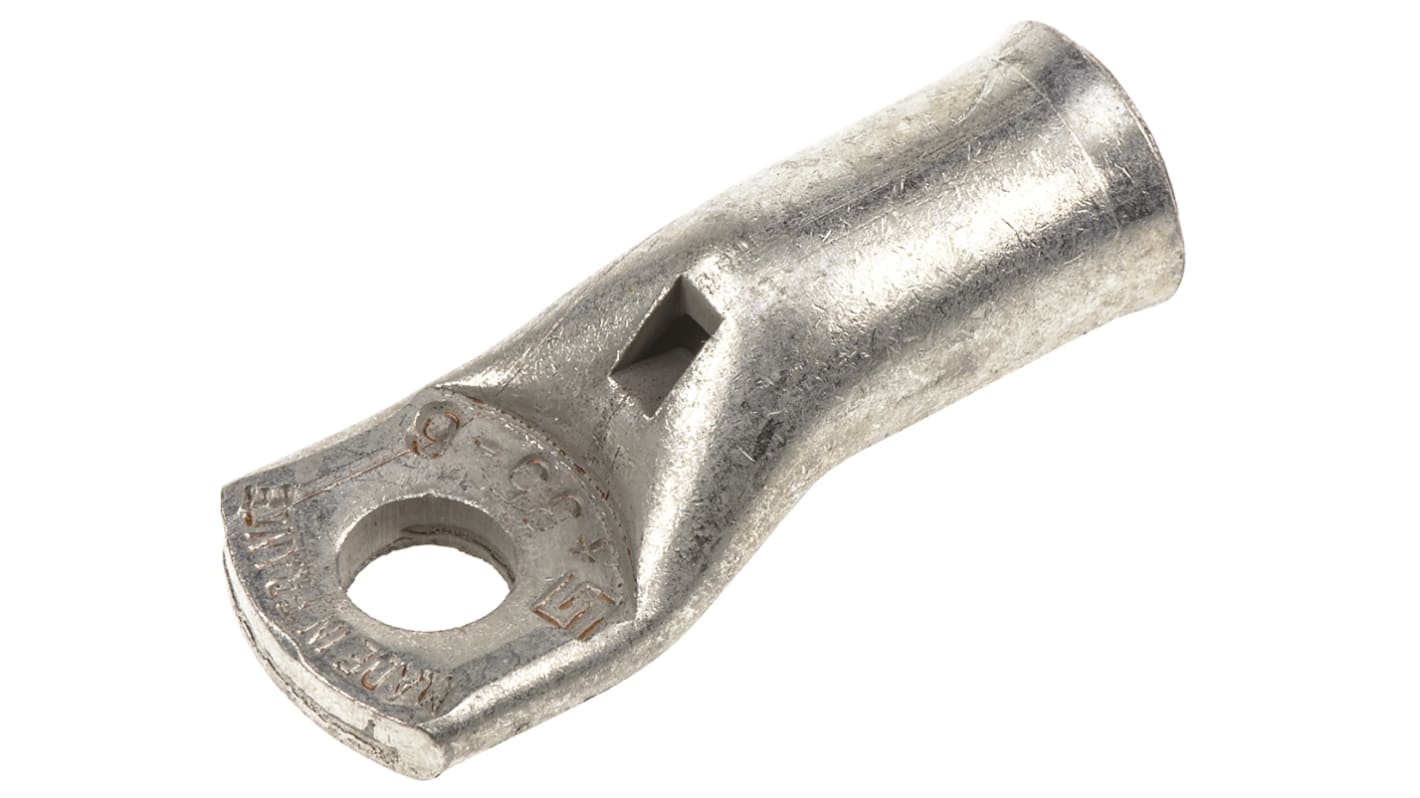

TE Connectivity, XCT Uninsulated Ring Terminal, 6mm Stud Size, 35mm² to 35mm² Wire Size
- RS Stock No.:
- 311-9797
- Mfr. Part No.:
- 710027-1
- Manufacturer:
- TE Connectivity
Bulk discount available
Subtotal (1 box of 25 units)**
MYR375.95
525 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Box** |
|---|---|---|
| 25 - 100 | MYR15.038 | MYR375.95 |
| 125 - 600 | MYR14.738 | MYR368.45 |
| 625 - 1225 | MYR14.442 | MYR361.05 |
| 1250 - 2475 | MYR14.153 | MYR353.825 |
| 2500 + | MYR13.87 | MYR346.75 |
**price indicative
- RS Stock No.:
- 311-9797
- Mfr. Part No.:
- 710027-1
- Manufacturer:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | XCT | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 6.4mm | |
| Outer Ring Diameter | 15mm | |
| Minimum Wire Size mm² | 35mm² | |
| Maximum Wire Size mm² | 35mm² | |
| Maximum Wire Size AWG | 2AWG | |
| Minimum Wire Size AWG | 2AWG | |
| Stud Size | 6mm | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Thickness | 1.5mm | |
| Overall Length | 39mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series XCT | ||
Insulation Uninsulated | ||
Inner Ring Diameter 6.4mm | ||
Outer Ring Diameter 15mm | ||
Minimum Wire Size mm² 35mm² | ||
Maximum Wire Size mm² 35mm² | ||
Maximum Wire Size AWG 2AWG | ||
Minimum Wire Size AWG 2AWG | ||
Stud Size 6mm | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Thickness 1.5mm | ||
Overall Length 39mm | ||
