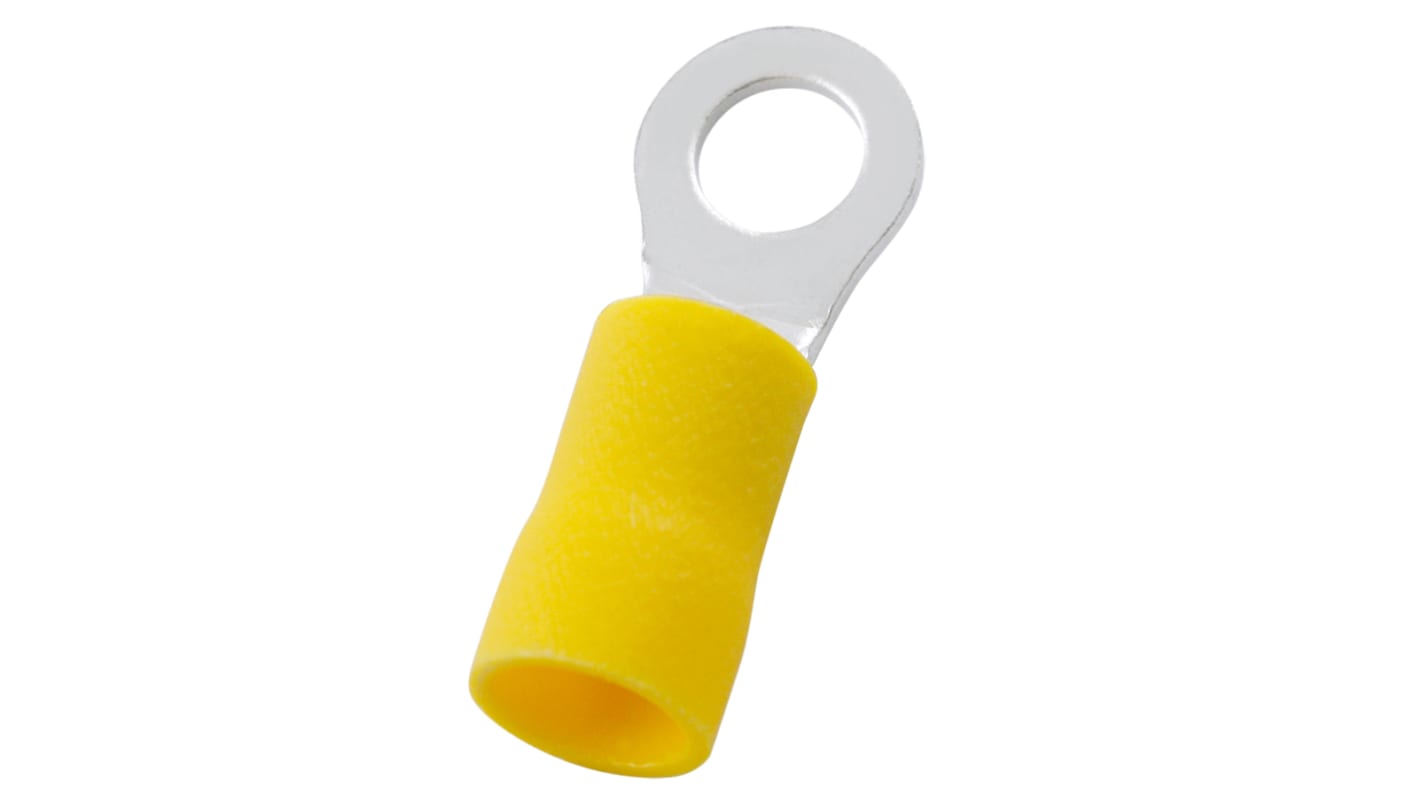

RS PRO Insulated Crimp Ring Terminal, 5.3mm Stud Size, 4mm² to 6mm² Wire Size, Yellow
- RS Stock No.:
- 270-7638
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 bag of 500 units)**
MYR254.50
Temporarily out of stock - back order for despatch 03/11/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit | Per Bag** |
|---|---|---|
| 500 - 4500 | MYR0.509 | MYR254.50 |
| 5000 - 9500 | MYR0.471 | MYR235.50 |
| 10000 + | MYR0.426 | MYR213.00 |
**price indicative
- RS Stock No.:
- 270-7638
- Manufacturer:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Series | E245391 | |
| Insulation | Insulated | |
| Insulation Material | Vinyl | |
| Outer Ring Diameter | 9.5mm | |
| Inner Ring Diameter | 5.3mm | |
| Maximum Wire Size mm² | 6mm² | |
| Minimum Wire Size mm² | 4mm² | |
| Maximum Wire Size AWG | 10AWG | |
| Minimum Wire Size AWG | 12AWG | |
| Stud Size | 5.3mm | |
| Colour | Yellow | |
| Contact Material | Copper | |
| Contact Plating | Tin | |
| Thickness | 1mm | |
| Overall Length | 26mm | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Series E245391 | ||
Insulation Insulated | ||
Insulation Material Vinyl | ||
Outer Ring Diameter 9.5mm | ||
Inner Ring Diameter 5.3mm | ||
Maximum Wire Size mm² 6mm² | ||
Minimum Wire Size mm² 4mm² | ||
Maximum Wire Size AWG 10AWG | ||
Minimum Wire Size AWG 12AWG | ||
Stud Size 5.3mm | ||
Colour Yellow | ||
Contact Material Copper | ||
Contact Plating Tin | ||
Thickness 1mm | ||
Overall Length 26mm | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
