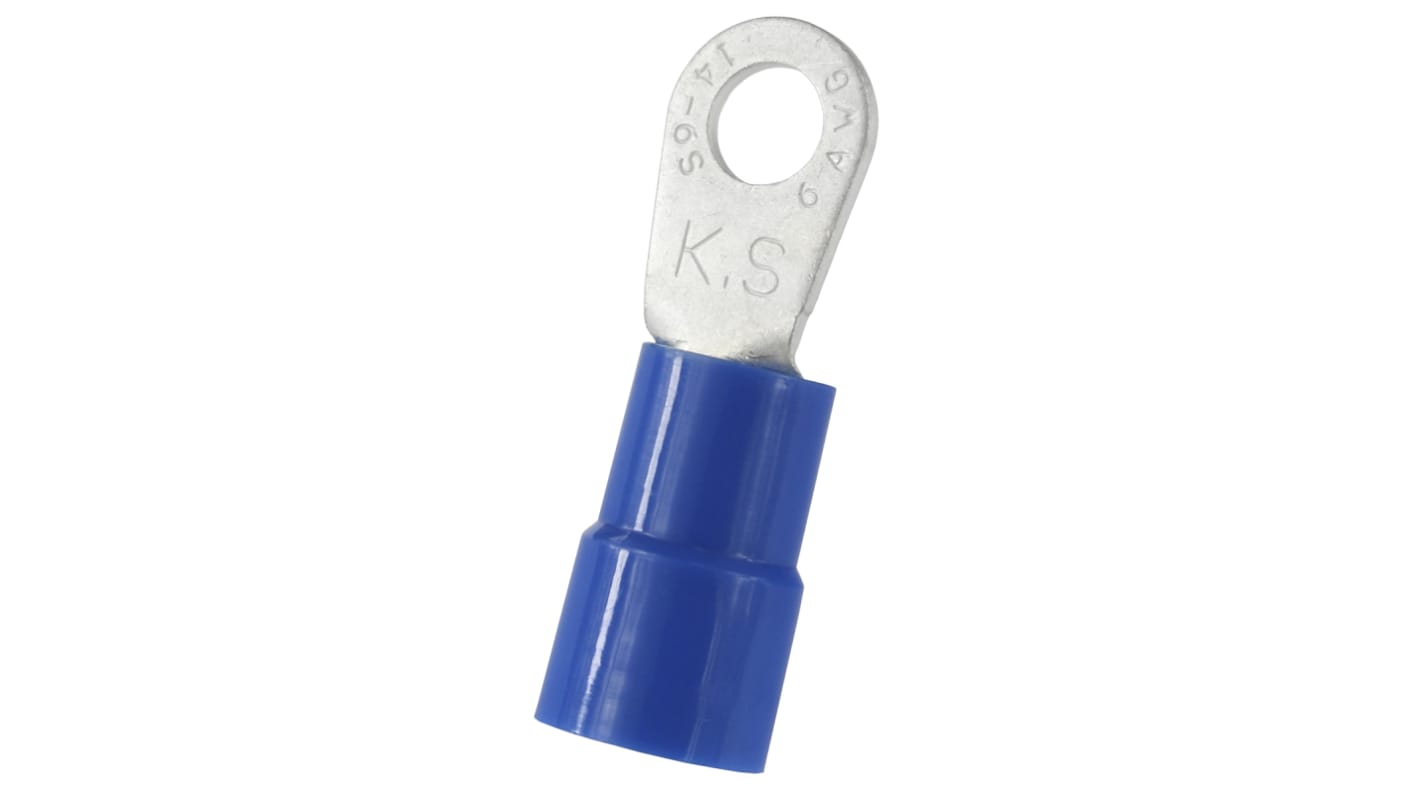

RS PRO Insulated Ring Terminal, 6.4mm Stud Size, 14mm² to 14mm² Wire Size, Blue | RS
Recently searched

    RS PRO Insulated Ring Terminal, 6.4mm Stud Size, 14mm² to 14mm² Wire Size, Blue

    Bulk discount available

    Subtotal (1 bag of 50 units)**

    MYR97.60

    Add to Basket
    Select or type quantity
    1550 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Units
    Per Unit
    Per Bag**
    50 - 450MYR1.952MYR97.60
    500 - 950MYR1.893MYR94.65
    1000 - 2450MYR1.835MYR91.75
    2500 - 12450MYR1.796MYR89.80
    12500 +MYR1.478MYR73.90

    **price indicative

    RS Stock No.:
    178-8645
    Manufacturer:
    RS PRO
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    RS PRO

    Series

    E245391

    Insulation

    Insulated

    Insulation Material

    Nylon

    Inner Ring Diameter

    6.4mm

    Outer Ring Diameter

    12mm

    Maximum Wire Size mm²

    14mm²

    Minimum Wire Size mm²

    14mm²

    Minimum Wire Size AWG

    6AWG

    Maximum Wire Size AWG

    6AWG

    Stud Size

    6.4mm

    Colour

    Blue

    Contact Plating

    Tin

    Contact Material

    Copper

    Thickness

    1.5mm

    Overall Length

    40.2mm

    Maximum Operating Temperature

    +105°C

    Minimum Operating Temperature

    -40°C
