Units	Per Unit	Per Bag**
100 - 900	MYR0.658	MYR65.80
1000 - 1900	MYR0.645	MYR64.50
2000 - 4900	MYR0.625	MYR62.50
5000 - 24900	MYR0.61	MYR61.00
25000 +	MYR0.502	MYR50.20

Select all	Attribute	Value
	Brand	RS PRO
	Series	E245391
	Insulation	Uninsulated
	Inner Ring Diameter	5.3mm
	Outer Ring Diameter	9.5mm
	Maximum Wire Size mm²	6mm²
	Minimum Wire Size mm²	4mm²
	Minimum Wire Size AWG	12AWG
	Maximum Wire Size AWG	10AWG
	Stud Size	5.3mm
	Contact Plating	Tin
	Contact Material	Copper
	Thickness	1mm
	Overall Length	19mm
	Maximum Operating Temperature	+150°C
	Minimum Operating Temperature	-40°C

	Select all
	Brand RS PRO
	Series E245391
	Insulation Uninsulated
	Inner Ring Diameter 5.3mm
	Outer Ring Diameter 9.5mm
	Maximum Wire Size mm² 6mm²
	Minimum Wire Size mm² 4mm²
	Minimum Wire Size AWG 12AWG
	Maximum Wire Size AWG 10AWG
	Stud Size 5.3mm
	Contact Plating Tin
	Contact Material Copper
	Thickness 1mm
	Overall Length 19mm
	Maximum Operating Temperature +150°C
	Minimum Operating Temperature -40°C

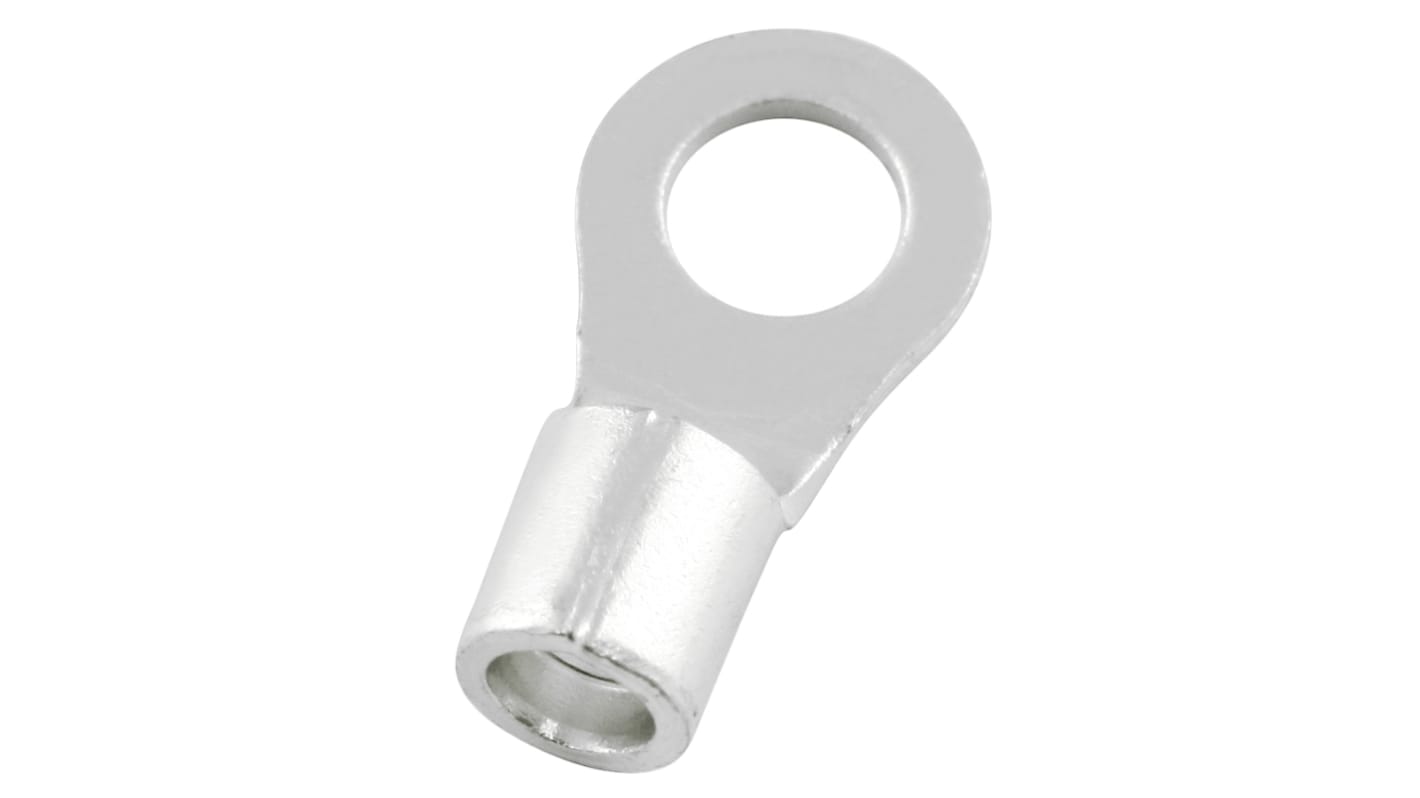

RS PRO Uninsulated Ring Terminal, 5.3mm Stud Size, 4mm² to 6mm² Wire Size

FREE delivery for orders over MYR500.00
