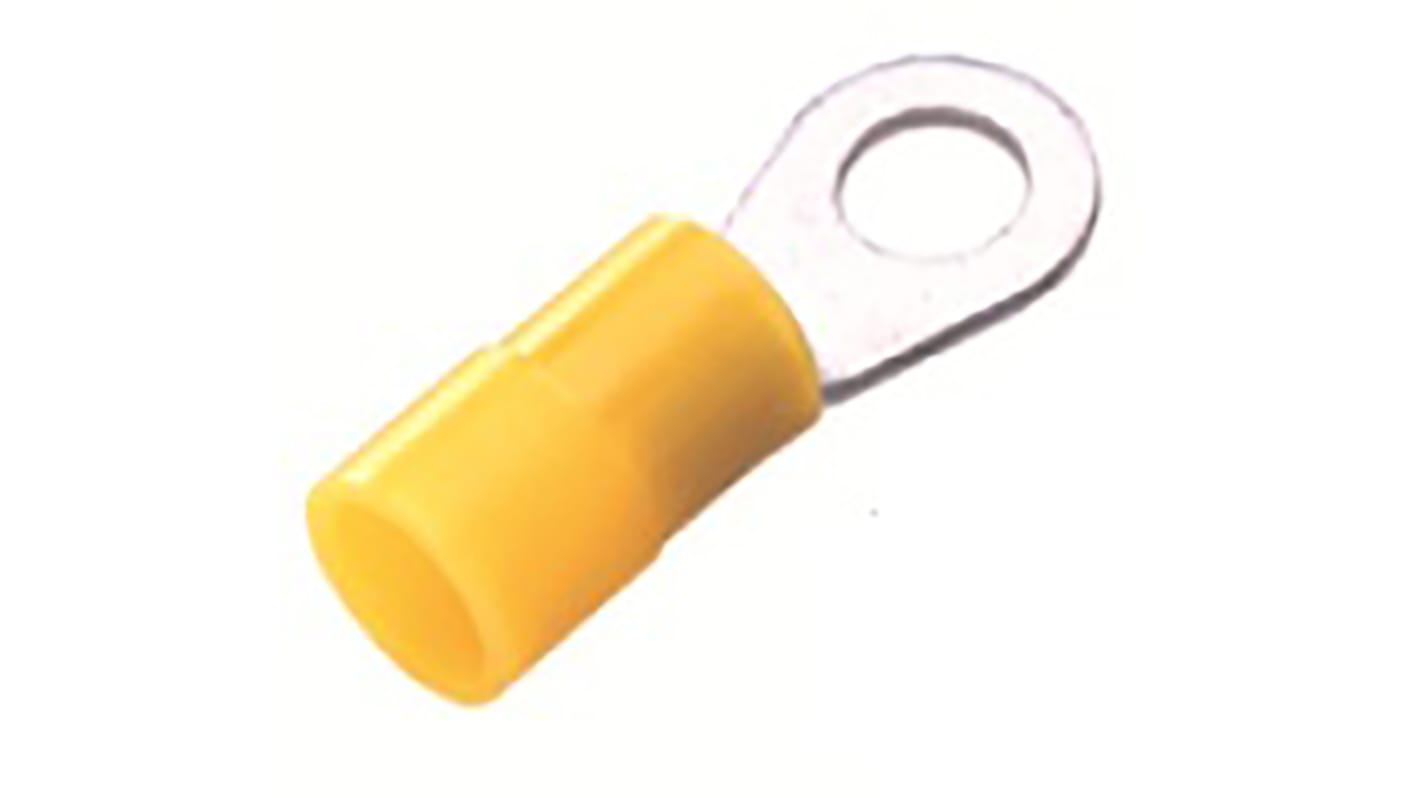

    RS PRO Insulated Ring Terminal, 8.4mm Stud Size, 2.5mm² to 6mm² Wire Size, Yellow

    View all Ring Terminals
    Bulk discount available

    Subtotal (1 bag of 100 units)**

    MYR118.20

    Add to Basket
    Select or type quantity
    1100 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Units
    Per Unit
    Per Bag**
    100 - 900MYR1.182MYR118.20
    1000 - 1900MYR1.157MYR115.70
    2000 - 4900MYR1.123MYR112.30
    5000 - 24900MYR1.095MYR109.50
    25000 +MYR0.901MYR90.10

    **price indicative

    RS Stock No.:
    178-7264
    Manufacturer:
    RS PRO
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    RS PRO

    Series

    E245391

    Insulation

    Insulated

    Insulation Material

    Nylon

    Outer Ring Diameter

    14mm

    Inner Ring Diameter

    8.4mm

    Minimum Wire Size mm²

    2.5mm²

    Maximum Wire Size mm²

    6mm²

    Maximum Wire Size AWG

    10AWG

    Minimum Wire Size AWG

    12AWG

    Stud Size

    8.4mm

    Colour

    Yellow

    Contact Material

    Copper

    Contact Plating

    Tin

    Thickness

    1mm

    Overall Length

    33mm

    Maximum Operating Temperature

    +105°C

    Minimum Operating Temperature

    -40°C
