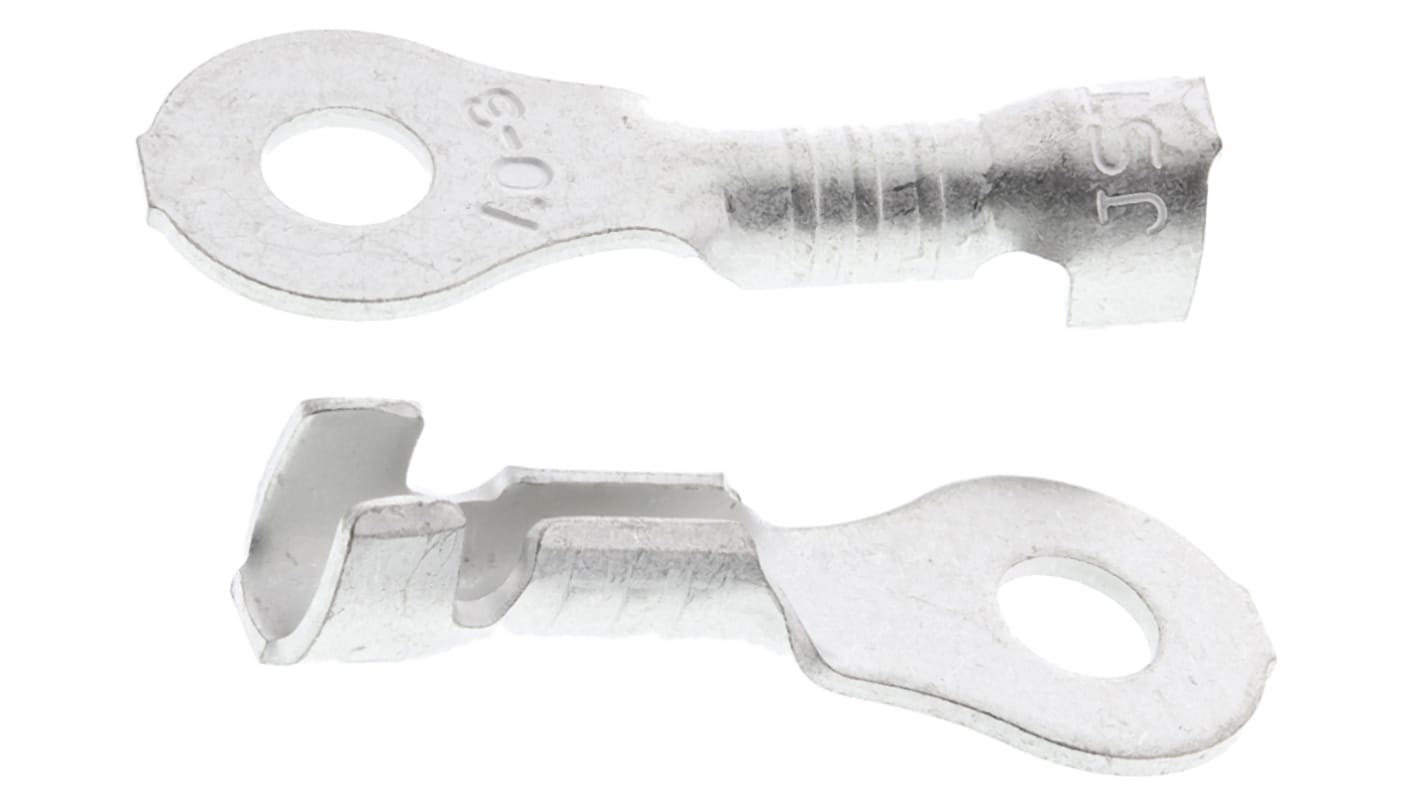

JST, LRB Uninsulated Ring Terminal, M3 Stud Size, 0.5mm² to 1mm² Wire Size
- RS Stock No.:
- 166-7495
- Mfr. Part No.:
- LRB-1.0T-M3
- Manufacturer:
- JST
This image is representative of the product range
1 / 1
Bulk discount available
Subtotal (1 bag of 1000 units)**
MYR877.80
3 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Bag(s) | Per Bag | Per Unit** |
|---|---|---|
| 1 - 4 | MYR877.80 | MYR0.878 |
| 5 + | MYR790.02 | MYR0.79 |
**price indicative
- RS Stock No.:
- 166-7495
- Mfr. Part No.:
- LRB-1.0T-M3
- Manufacturer:
- JST
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Series | LRB | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 3.2mm | |
| Outer Ring Diameter | 8mm | |
| Maximum Wire Size mm² | 1mm² | |
| Minimum Wire Size mm² | 0.5mm² | |
| Maximum Wire Size AWG | 18AWG | |
| Minimum Wire Size AWG | 20AWG | |
| Stud Size | M3 | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Thickness | 0.6mm | |
| Overall Length | 21mm | |
Select all | ||
|---|---|---|
Brand JST | ||
Series LRB | ||
Insulation Uninsulated | ||
Inner Ring Diameter 3.2mm | ||
Outer Ring Diameter 8mm | ||
Maximum Wire Size mm² 1mm² | ||
Minimum Wire Size mm² 0.5mm² | ||
Maximum Wire Size AWG 18AWG | ||
Minimum Wire Size AWG 20AWG | ||
Stud Size M3 | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Thickness 0.6mm | ||
Overall Length 21mm | ||
