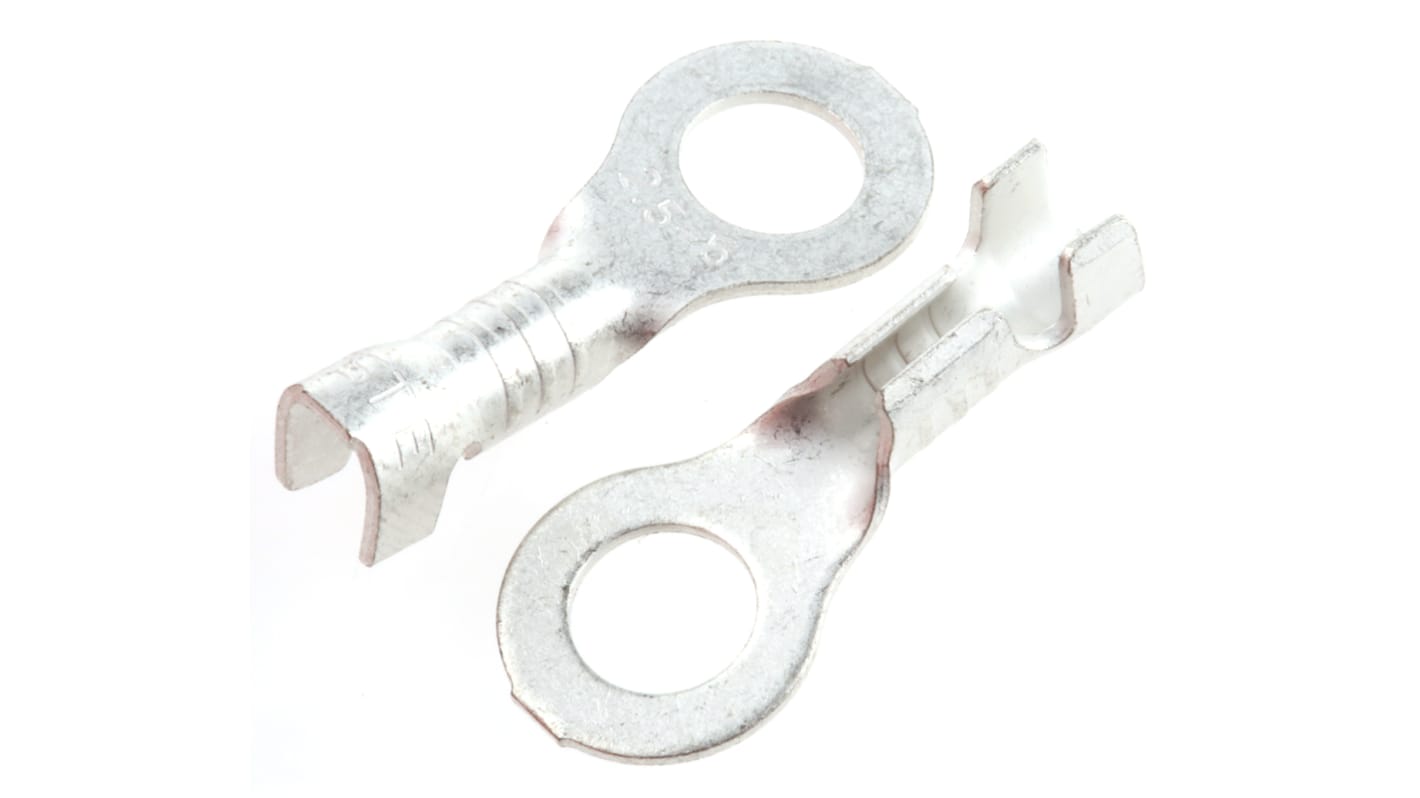

JST, LRB Uninsulated Ring Terminal, M5 Stud Size, 1mm² to 2.5mm² Wire Size
- RS Stock No.:
- 166-7418
- Mfr. Part No.:
- LRB-2.5T-M5
- Manufacturer:
- JST
Bulk discount available
Subtotal (1 bag of 500 units)**
MYR370.50
500 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Bag** |
|---|---|---|
| 500 - 2000 | MYR0.741 | MYR370.50 |
| 2500 + | MYR0.727 | MYR363.50 |
**price indicative
- RS Stock No.:
- 166-7418
- Mfr. Part No.:
- LRB-2.5T-M5
- Manufacturer:
- JST
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Series | LRB | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 6.5mm | |
| Outer Ring Diameter | 9.5mm | |
| Minimum Wire Size mm² | 1mm² | |
| Maximum Wire Size mm² | 2.5mm² | |
| Maximum Wire Size AWG | 14AWG | |
| Minimum Wire Size AWG | 18AWG | |
| Stud Size | M5 | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Thickness | 0.6mm | |
| Overall Length | 21.75mm | |
Select all | ||
|---|---|---|
Brand JST | ||
Series LRB | ||
Insulation Uninsulated | ||
Inner Ring Diameter 6.5mm | ||
Outer Ring Diameter 9.5mm | ||
Minimum Wire Size mm² 1mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Maximum Wire Size AWG 14AWG | ||
Minimum Wire Size AWG 18AWG | ||
Stud Size M5 | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Thickness 0.6mm | ||
Overall Length 21.75mm | ||
