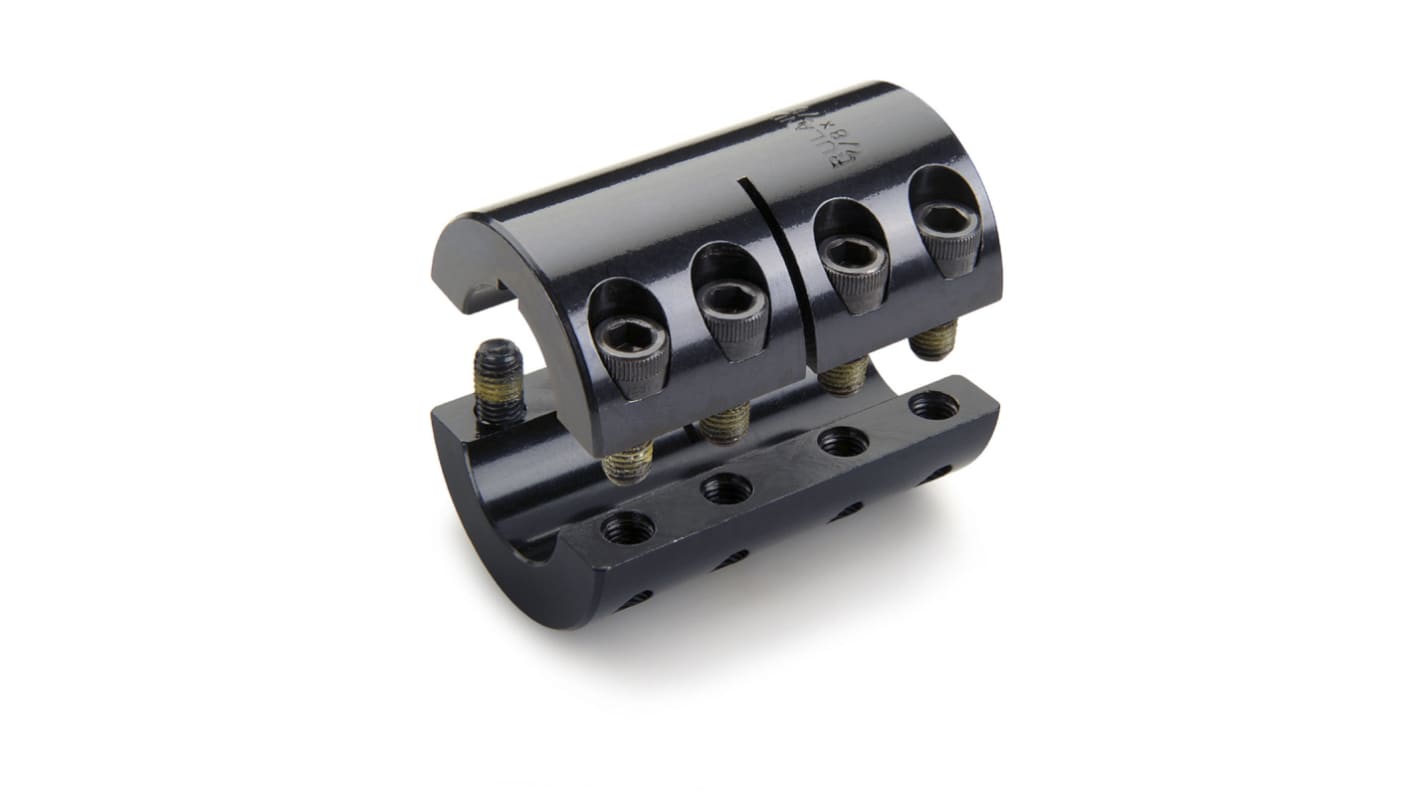

Ruland MSPC-20-20-F Coupler, 42 mm OD, Black Oxide Steel, 350 Nm
- RS Stock No.:
- 449-0536
- Mfr. Part No.:
- MSPC-20-20-F
- Manufacturer:
- Ruland
Bulk discount available
Subtotal (1 unit)*
MYR348.72
FREE delivery for orders over RM 500.00
In Stock
- 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 5 | MYR348.72 |
| 6 - 11 | MYR338.97 |
| 12 + | MYR325.02 |
*price indicative
- RS Stock No.:
- 449-0536
- Mfr. Part No.:
- MSPC-20-20-F
- Manufacturer:
- Ruland
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Product Type | Coupler | |
| Outside Diameter | 42 mm | |
| One/Two Piece | Two Piece | |
| Length | 65mm | |
| Bore Size A | 20mm | |
| Maximum Speed | 4000rpm | |
| Bore Size B | 20mm | |
| Material | Black Oxide Steel | |
| Style | Clamp | |
| Keyway | Yes | |
| Torque Rating | 350Nm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 176°C | |
| Bore Type | Finished with Keyway | |
| Standards/Approvals | REACH, RoHS | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Product Type Coupler | ||
Outside Diameter 42 mm | ||
One/Two Piece Two Piece | ||
Length 65mm | ||
Bore Size A 20mm | ||
Maximum Speed 4000rpm | ||
Bore Size B 20mm | ||
Material Black Oxide Steel | ||
Style Clamp | ||
Keyway Yes | ||
Torque Rating 350Nm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 176°C | ||
Bore Type Finished with Keyway | ||
Standards/Approvals REACH, RoHS | ||
Steel Couplers with Black Oxide Finish
