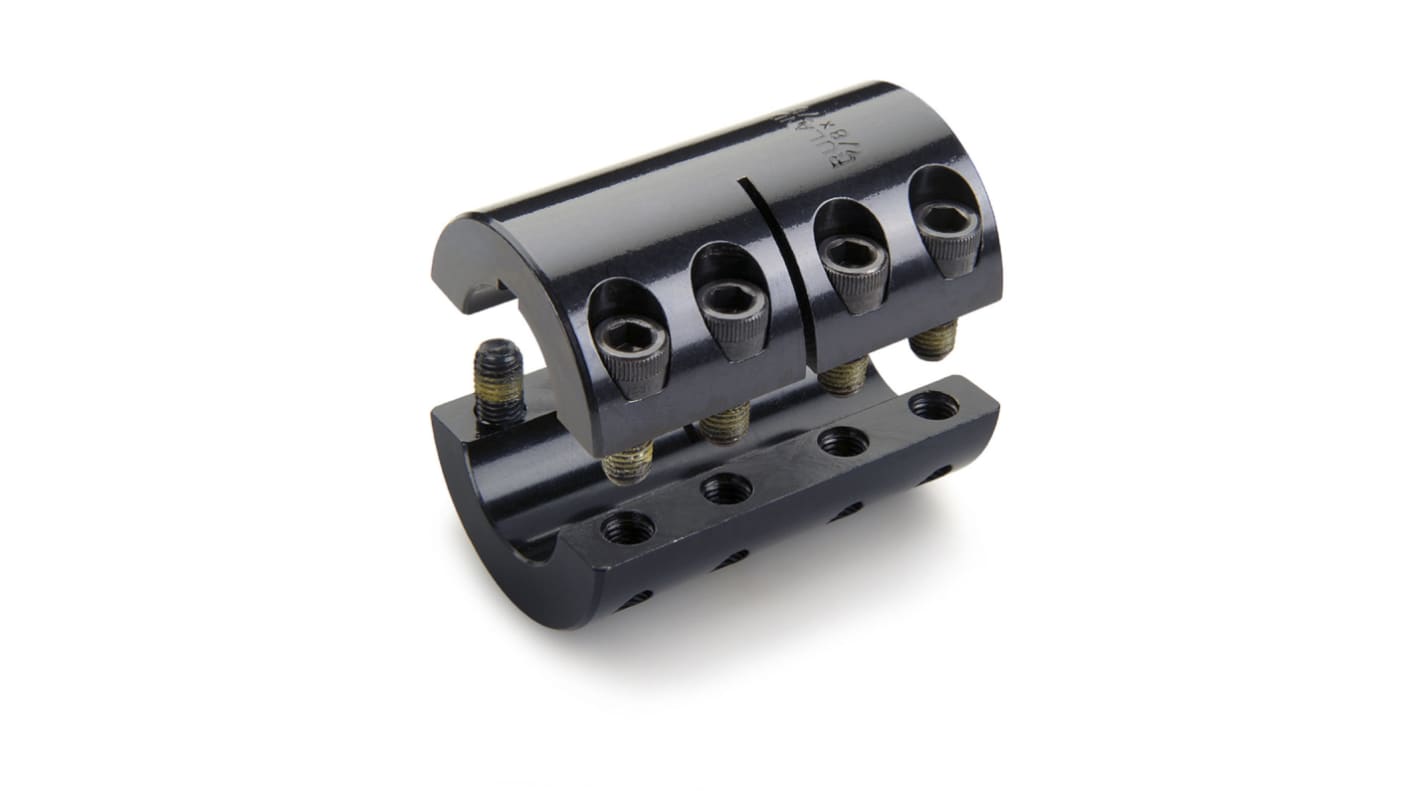

Ruland MSPC-30-30-F Rigid Shaft Coupling, 53 mm OD, Black Oxide Steel, 475 Nm
- RS Stock No.:
- 449-0520
- Mfr. Part No.:
- MSPC-30-30-F
- Manufacturer:
- Ruland
Bulk discount available
Subtotal (1 unit)*
MYR959.01
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 - 5 | MYR959.01 |
| 6 - 11 | MYR932.18 |
| 12 + | MYR893.82 |
*price indicative
- RS Stock No.:
- 449-0520
- Mfr. Part No.:
- MSPC-30-30-F
- Manufacturer:
- Ruland
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Product Type | Rigid Shaft Coupling | |
| One/Two Piece | Two Piece | |
| Outside Diameter | 53 mm | |
| Length | 83mm | |
| Bore Size A | 30mm | |
| Bore Size B | 30mm | |
| Maximum Speed | 4000rpm | |
| Material | Black Oxide Steel | |
| Style | Clamp | |
| Torque Rating | 475Nm | |
| Keyway | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 176°C | |
| Standards/Approvals | RoHS, REACH | |
| Bore Type | Finished with Keyway | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Product Type Rigid Shaft Coupling | ||
One/Two Piece Two Piece | ||
Outside Diameter 53 mm | ||
Length 83mm | ||
Bore Size A 30mm | ||
Bore Size B 30mm | ||
Maximum Speed 4000rpm | ||
Material Black Oxide Steel | ||
Style Clamp | ||
Torque Rating 475Nm | ||
Keyway Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 176°C | ||
Standards/Approvals RoHS, REACH | ||
Bore Type Finished with Keyway | ||
Steel Couplers with Black Oxide Finish
