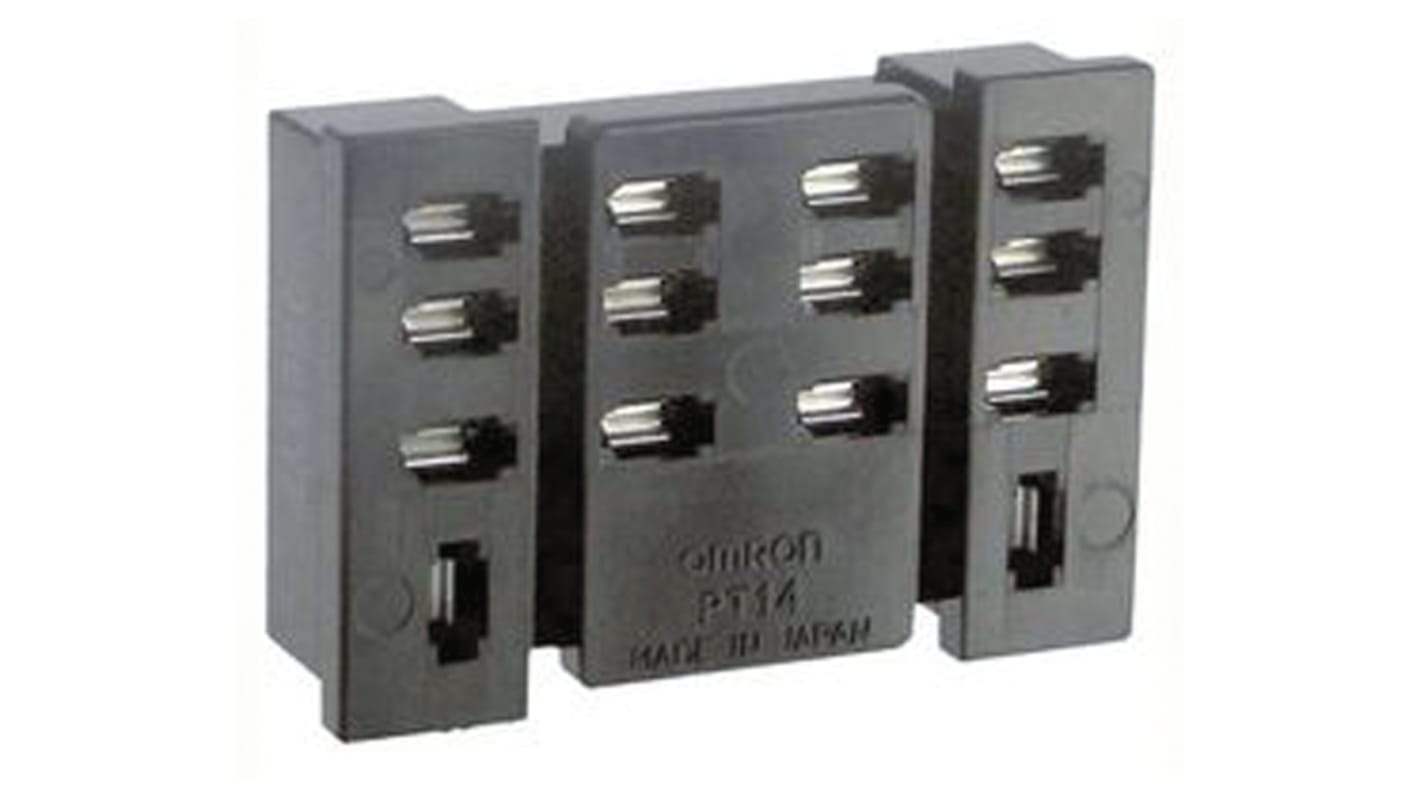

Omron PT 14 Pin 250V ac PCB Mount Relay Socket, for use with LY Series Relay

Withstand voltage 2000V coil to contact
Arc barriers to prevent flash-over between adjacent poles
Relay clips for DIN types available separately
Contact resistance: 50mΩ
Isolation coil to contact: 12kV
Operating temperature range: -25 to +55°C
Switching Voltage: 110Vac; 24Vdc
Contact material: AgCdO
Dimensions: H42.4mm x W28mm x D41.5mm

Bases (in picture) sold separately

VDE, UL, CSA, TUV

This relay socket is designed to facilitate seamless connections in electronic applications. Ideal for use with LY Series relays, this PCB mount relay accessory provides reliable functionality. With a current rating of 15A and a voltage capacity of 250V AC, it supports robust performance. Incorporating a PCB pin termination type, it ensures simple integration into various circuit designs, making it a valuable component for your projects.

• Accommodates up to 14 contacts for versatile connections
• High voltage capability of 250V AC supports diverse applications
• 15A current rating ensures reliable performance under load
• PCB mount design allows easy installation on printed circuit boards
• Optimised for use with LY Series relays for enhanced compatibility
• PCB pin type termination simplifies wiring configurations

• Utilised in electrical control panels for automated systems
• Ideal for sectors requiring reliable relay connections
• Employed in industrial machinery for circuit management
• Suitable for any project needing robust relay integration

A current rating of 15A allows it to manage substantial electrical loads efficiently, making it suitable for applications where reliable switching is essential, such as in control systems.

It features a PCB mount design, allowing for straightforward installation on various circuit boards, thereby saving space and simplifying integration into existing systems.

Given its specifications, it is primarily designed for standard relay applications. For high-frequency uses, verify compatibility with additional circuit specifications to ensure optimal performance.

While specific temperature limits are not detailed, components like these typically operate effectively within ranges common to PCB applications, usually between -40°C to +85°C, depending on the specific relay in use.
