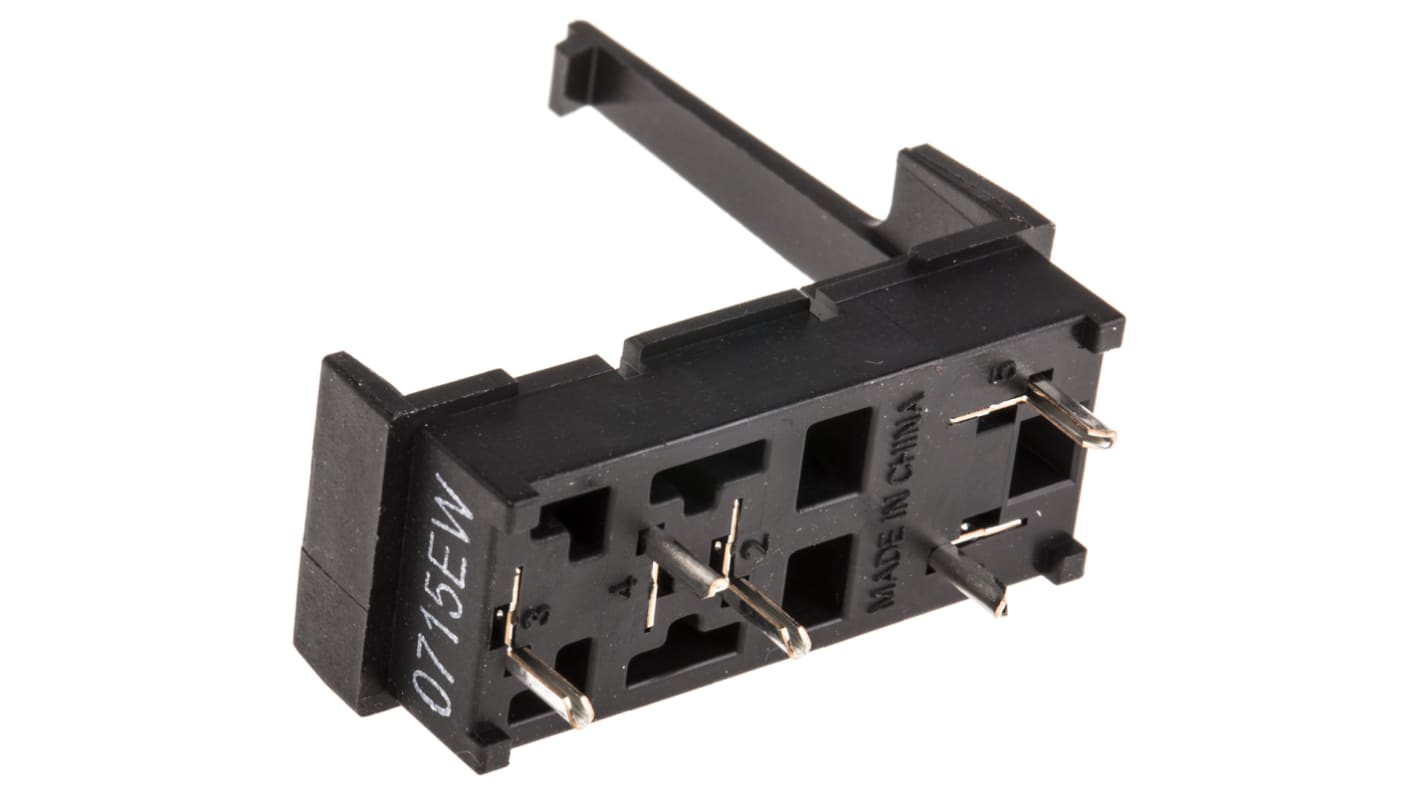

Omron P2R 5 Pin 250V ac PCB Mount Relay Socket, for use with 1 Pole G2R Series

Omron G2RS Series industrial plug-in relays are compact, electromechanical space saving relays. They are ideal for you to use in many general purpose applications.

Integral Coil status LED and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100 mΩ
Coil to contact isolation: 5000 V ac
Operating temperature range: -40 → + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately

Medical Health Care Profession
Lifts and Elevators
Gas and electric boilers
Domestic Appliances

Can be used as a replacement for earlier version of G2R-SN series, check height clearance.

UL, CSA, VDE

This relay socket is essential for electrical control systems, serving as a reliable connection point for relay components. Designed specifically for one-pole G2R series relays, it offers dependable performance under various conditions. With a current rating of 10A and an operating voltage of 250VAC, it is a key component for automation and control applications.

• PCB mount design enables easy installation in complex circuits
• Compatible with one-pole G2R series relays for broad applications
• Supports a current rating of 10A for high-capacity tasks
• Operates at 250VAC, suitable for multiple electrical systems
• Durable construction provides reliability across different environments
• Simplified wiring with clearly arranged contacts for easy connections

• Suitable for both building and industrial electrical systems
• Employed in relay-based signal switching
• Ideal for installations needing high-current handling
• Suitable for PCB layouts requiring relay integration

It operates effectively at 250V AC, making it compatible with a variety of systems.

The PCB mount design allows for straightforward placement and soldering onto circuit boards.

Yes, it is designed for use with one-pole G2R series relays.

It can handle up to 10A, making it suitable for high-current applications.

UL; CSA; EN 61812-1; CE
