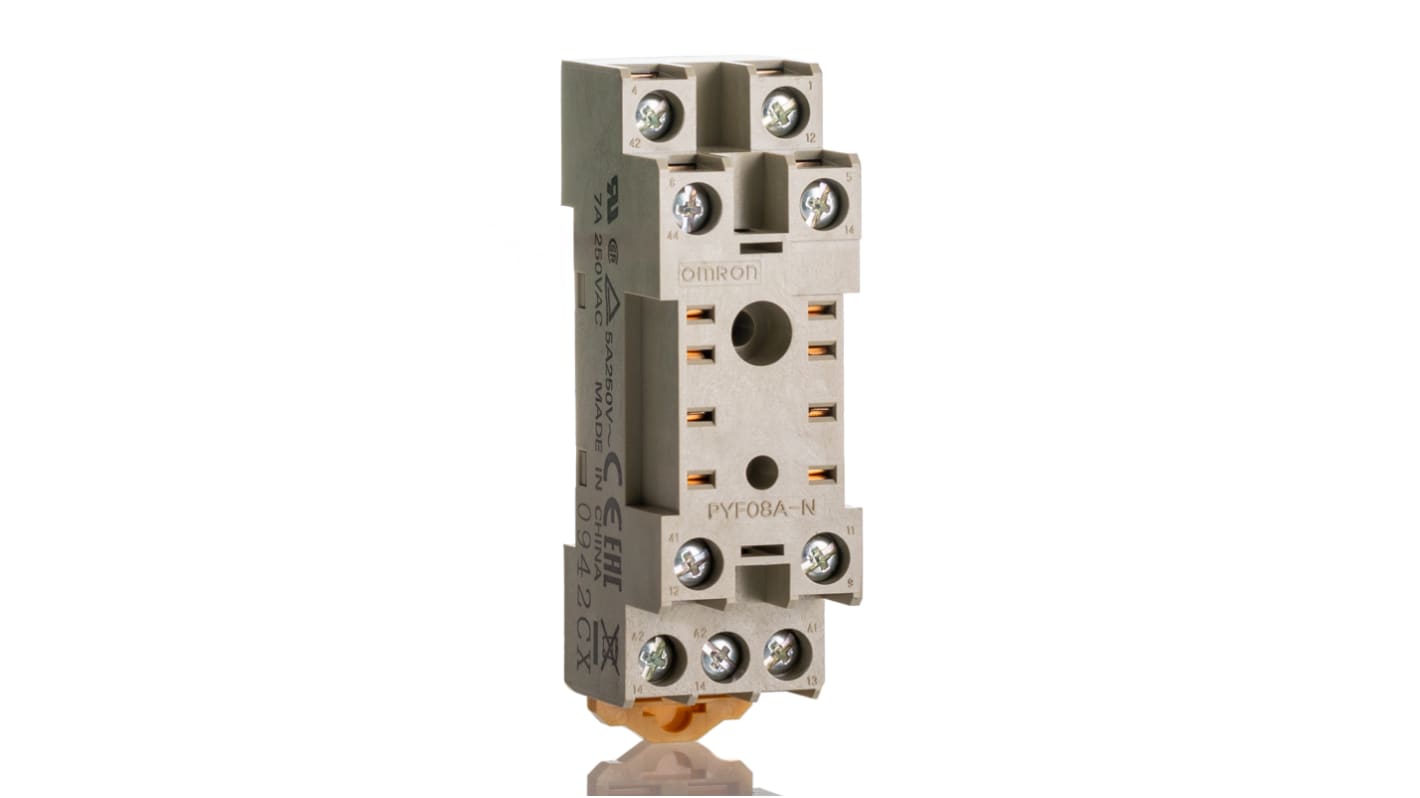

Omron 8 Pin 250V ac DIN Rail Relay Socket for use with Various Series

Want to make light work of mounting a relay? Switch over to this relay socket from OMRON. It attaches securely to your circuit board for assembly in a flash. By acting as an electrical buffer between the PCB and relay, the socket cuts out the need to fiddle around with wires. This also minimises the risk of faulty connections and costly downtime for repairs. This socket is designed for use with OMRON's MY2IN series of power relays as well as other ranges and fits smoothly into lighting and HVAC installations.

• 7A current rating and 250V AC voltage for use with high-voltage applications
• Built for multitasking with eight contacts that make multiple connections at once
• Insulation resistance of 1,000 MΩ min protects you and your circuits from shocks
• Screw terminals ensure a stable connection even with industrial vibrations
• Plastic finger-protection design keeps hands safe

• Pharmaceutical industry
• Mechanical engineering
• Printing and binding lines

The unit makes the most of space in your setup thanks to its compact dimensions of 73 (H) x 22 (W) x 30mm (D).

CE; VDE; RC; LR; CSA
