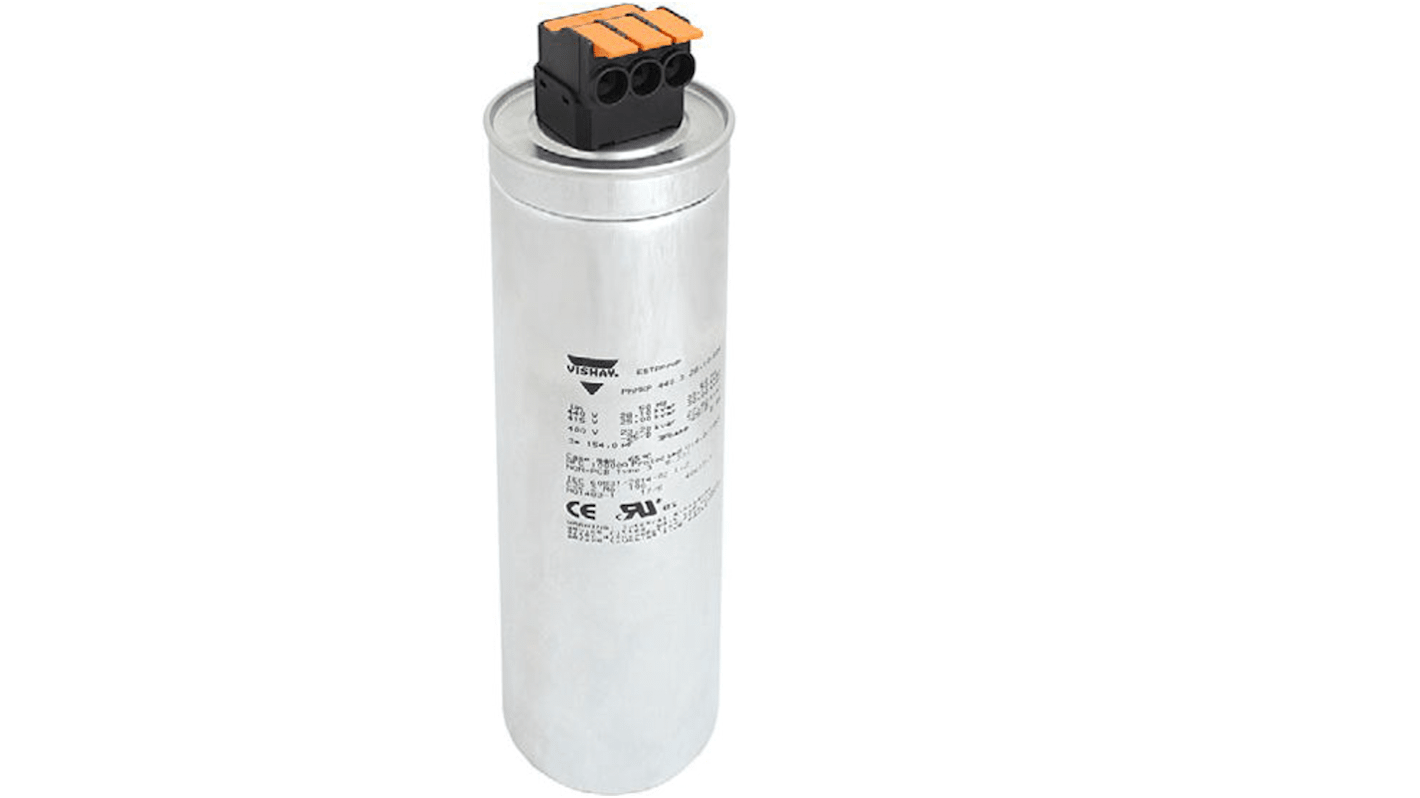

Vishay Power Factor Correction Capacitor (PFC) 3 x 137.0μF 25kvar 3
- RS Stock No.:
- 225-8900
- Mfr. Part No.:
- PhMKP440.3.25,00-S84
- Manufacturer:
- Vishay
Bulk discount available
Subtotal (1 box of 4 units)*
MYR4,352.80
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Box* |
|---|---|---|
| 4 - 8 | MYR1,088.20 | MYR4,352.80 |
| 12 + | MYR1,012.018 | MYR4,048.07 |
*price indicative
- RS Stock No.:
- 225-8900
- Mfr. Part No.:
- PhMKP440.3.25,00-S84
- Manufacturer:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| kvar 50Hz | 25kvar | |
| Number of Phases | 3 | |
| Capacitance | 3 x 137.0µF | |
| Voltage | 440V ac | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
kvar 50Hz 25kvar | ||
Number of Phases 3 | ||
Capacitance 3 x 137.0µF | ||
Voltage 440V ac | ||
The Vishay PhMKP capacitors are metallized polypropylene film capacitors with self-healing properties. The current-carrying metal layer of an MKP capacitor is vaporized onto one side of the polypropylene film. 3-phase capacitor with 440 Vac voltage and 25 Kvar reactive power at 50 Hz.
Maintenance free
Reduced assembly times up to 60 %
Vibration proof in wind power plants and during transport
Optical connection check - lever closed = successfully contacted
2.5 mm2 up to 25 mm2 with wire-end sleeve
Defined continuous contact force through spring technology
Stainless steel spring
Corrosion proof
Fast and easy lever-operated wire connection
Copper alloy for conductor material
UL and cUL
Reduced assembly times up to 60 %
Vibration proof in wind power plants and during transport
Optical connection check - lever closed = successfully contacted
2.5 mm2 up to 25 mm2 with wire-end sleeve
Defined continuous contact force through spring technology
Stainless steel spring
Corrosion proof
Fast and easy lever-operated wire connection
Copper alloy for conductor material
UL and cUL
